Chin J Plan Ecolo ›› 2013, Vol. 37 ›› Issue (1): 1-17.doi: 10.3724/SP.J.1258.2013.00001

• Research Articles •     Next Articles

Relationship analysis between soil moisture in root zone and top-most layer in China

LIU Su-Xia1*, XING Bo1,3, YUAN Guo-Fu2, MO Xing-Guo1, and LIN Zhong-Hui1

  1. 1Key Laboratory of Water Cycle and Related Land Surface Processes of Chinese Academy of Sciences, Institute of Geographic Sciences and Natural Resources Research, Chinese Academy of Sciences, Beijing 100101, China;

    2Key Laboratory of Ecosystem Network Observation and Simulation of Chinese Academy of Sciences, Institute of Geographic Sciences and Natural Resources Research, Chinese Academy of Sciences, Beijing 100101, China;

    3University of Chinese Academy of Sciences, Beijing 100049, China
  • Received:2012-04-10 Revised:2012-11-01 Online:2013-01-15 Published:2013-01-01
  • Contact: LIU Su-Xia


Aims It is more difficult to determine soil moisture in root zones (RSM) than soil moisture in the top-most layer (TSM). The relationship between TSM and RSM based on point A is useful for acquiring RSM at point B from its TSM if the relationship between TSM and RSM is general. The general relationships established so far have been based on only one crop or one ecosystem. Our aims are to determine the general relationship between TSM and RSM in China over various crops and ecosystems and to explore the effects of ecosystem, soil property, precipitation, vegetation, soil thickness and the order of magnitude of soil moisture on the relationship.
Methods We used 3 437 pairs of TSM and DSM data from 31 stations at 109 observation sites. The data represent all the terrestrial ecosystems, including forest, grass, agriculture, desert and mire, in 2006 from the China Ecosystem Research Network. We used linear regression in mathematics and effect analysis in physics to study the general relationship between TSM and RSM and to determine the influence of ecosystem, soil property, precipitation, vegetation, soil thickness, the order of magnitude of soil moisture on the relationship. The data are divided into calibration and verification groups for producing the relationship.

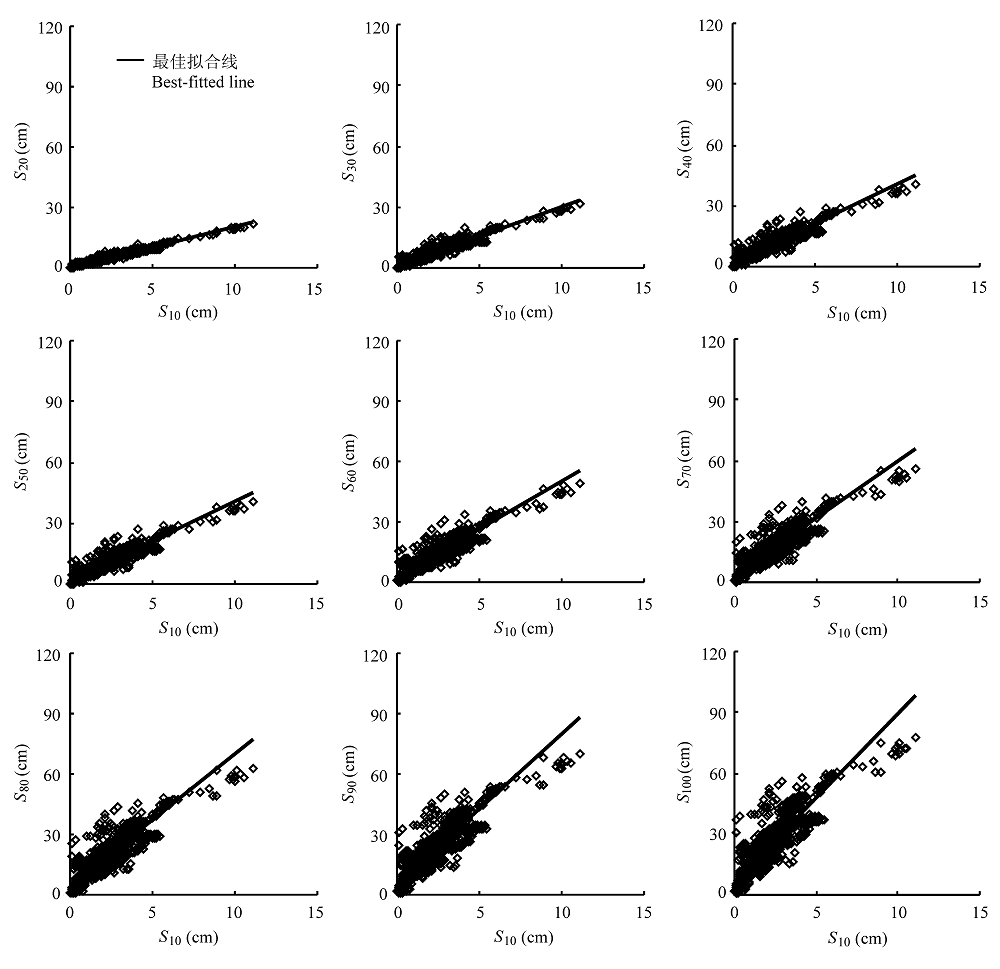

Important findings There is generally a linear relationship between TSM and RSM. The coefficient of determination (R2) between RSM and TSM is high for forest and mire ecosystems (R2 > 0.79 for both calibration and verification), intermediate for agricultural (R2 > 0.80 for calibration and 0.70 for verification) and grass ecosystems (R2 > 0.80 for calibration and 0.50 for verification) and low for desert ecosystem (R2 = 0.62 for calibration and 0.49 for verification). The effect of soil properties on the relationship is similar to that of ecosystem, with mire ecosystem corresponding to meadow soil with white pulp, desert ecosystem corresponding to aeolian soil, grass ecosystem corresponding to sandy-loam and sandy soil, forest ecosystem corresponding to loam and agricultural ecosystem corresponding to various soil types. The spatial variability of the parameters for the relationship is very high for soil moisture within semi-humid, semi-arid and arid zones and low for humid zone. The relationship is similar among very-humid zone, loam and forest ecosystem. The effect of vegetation on the relationship can be divided into four categories: poor relationship due to the influence of vegetation itself, poor regional relationship due to the difference between the location sites of vegetation, good relationship at single point and good relationship over a region. It is not recommended to derive the RSM from TSM based on the relationship for the first two categories. It is suitable to use the relationship only at single point for the third category. And it is practicable to use the regional relationship to derive RSM from TSM for the fourth category. Correlation is higher between TSM and RSM where the soil layer is thicker. The R2 can remain as high as 0.79 when the soil
layer is as thick as 100 cm. By scaling the original soil moisture data with maximum value, it is found there is no effect of the order of the magnitude of soil moisture on the relationship.

[1] Biswas BC, Dasgupta SK (1979). Estimate of moisture at deeper depth from surface layer data. Mausam, 30, 40-45. CrossRef
[2] Chen SP(陈世苹), Bai YF(白永飞), Han XG(韩兴国), An JL(安吉林), Guo FC(郭富存) (2004). Variations in foliar carbon isotope composition and adaptive strategies of carex korshinskyi along a soil moisture gradient.. Acta Phytoecologica Sinica (植物生态学报), 28(4), 515-522. (in Chinese with English abstract) 摘要
[3] Das N, Mohanty BP (2006). Root Zone Soil Moisture Assessment Using Remote Sensing and Vadose Zone Modeling. VadoseZoneJournal, 5, 296-307. CrossRef
[4] Deng TH(邓天宏), Fu XJ(付祥军), Shen SH(申双和) (2005).Transforming model of soil moisture between layers of 0- 50 cm and 0-100 cm. Agricultural Research in the Arid Areas(干旱地区农业研究), 23, 64-68. (in Chinese with English abstract) CrossRef
[5] Dorigo W, Oevelen Pa, Wagner W, Drusch M, Mecklenburg S, Robock A, Jackson T (2011). A new international network for in situ soil moisture data, Eos Trans. AGU, 92(17), 141, doi:10.1029/2011EO170001
[6] Ji F, Ma YJ, Fan ZL (2001). Soil water regime in Populus euphratica forest on the Tarim river alluvial plain. Acta Phytoecologica Sinica, 25, 17–21. (in Chinese with English abstract) [季方, 马英杰, 樊自立 (2001). 塔里木河冲积平原胡杨林的土壤水分状况研究. 植物生态学报, 25, 17–21.] 摘要
[7] Jia BQ(贾宝全), Ci LJ(慈龙骏), Cai TJ(蔡体久),Gao ZH(高志海), Ding F(丁峰) (2002). Preliminary research on changing soil water characters at ecotone between oasis and desert. Acta Phytoecologica Sinica (植物生态学报), 26(2), 203-208. (in Chinese with English abstract) 摘要
[8] Jia HK(贾海坤), Liu YH(刘颖慧), Xu X(徐霞), Wang K(王昆) (2005). Similation of soil water dynamics in a caragana intermedia woodland in Huangfuchuan watershed: Relationships among slope, aspect, plant density and soil water content. Acta Phytoecologica Sinica(植物生态学报), 29(6), 910-917.(in Chinese with English abstract) 摘要
[9] Lei ZH (雷志栋),Yang Shixiu杨诗秀,Xie Senchuan(谢森传) 编著 (1998). The Dynamics of Soi Water Movement , Beijing:Tsinghua University Press. (in Chinese) CrossRef
[10] Li MX(李明星), Ma ZG(马祖国), Niu GY(牛国跃) (2011). Modeling spatial and temporal variation in soil moisture in China. Chinese Science Bulletiin, DOI: 10.1007/s11434-011-4493-0.
[11] Li ZH(李政海), Zhong YK(仲延凯) (1996). The research on the dynamic rules of soil moisture in artificial grasslang. SCIENTIARUM NATURALIUM UNIVERSITATIS NEIMONGOL(内蒙古大学学报), 27, 237-241 CrossRef
[12] Liu CM(刘长民), Zhao FY(赵凡衍) (1995). Characteristics of soil moisture in farmlands of arid area. Journal of Northwest Forestry College(西北林学院学报), 10(增刊), 148-152. (in Chinese with English abstract) CrossRef
[13] Liu JL(刘建立), Wang YH(王彦辉), Yu PT(于澎涛), Cheng LL(程丽莉), Xiong W(熊伟), Xu LH(徐丽宏), Du AP(杜阿朋) (2009). Vegetation carrying capacity based on soil water on typical slopes in the diediegou small watershed of Liupan mountains, Northwestern China. Chinese Journal of Plant Ecology(植物生态学报), 33(6), 1101-1111. (in Chinese with English abstract) 摘要
[14] Liu JL(刘继龙), Zhang ZH(张振华), Xie HX(谢恒星) (2006). Forecasting on deep soil water of cherry orchard of Jiaodong based on surface oil water information. Research of Soil and Water Conservation(水土保持研究), 13, 96-99.(in Chinese with English abstract) CrossRef
[15] Liu JL(刘继龙), Zhang ZH(张振华), Xie HX(谢恒星) (2006). On conversion relation between surface and deep soil water of apple orchard. RESEARCH OF AGRICULTURAL MODERNIZATION(农业现代化研究), 27, 304-306.(in Chinese with English abstract) CrossRef
[16] Liu JL(刘继龙), Zhang ZH(张振华), Xie HX(谢恒星), Cai HJ(蔡焕杰) (2007). Water holding capacity in soil of root layer of pear orchard in Jiaodong region. Chinese Journal of Soil Science(土壤通报), 38, 640-644.(in Chinese with English abstract) CrossRef
[17] Liu SX, Mo XG, Li HB, Peng GB, Robock A (2001). The spatial variation of soil moisture in China: Geostatistical Characteristics. Journal of the Meteorological Society of Japan , 79 (2B), 555-574
[18] Liu SX, Leslie LM, Speer M, Bunker R, Morison R (2003). Approaching realistic soil moisture status in the Goulburn River catchment of southeastern Australia before and after a bushfire with an improved meso-scale numerical weather prediction model. IAHS Pub, 282, 215-320 CrossRef
[19] Liu SX, Mo XG, Zhao WM, Naeimi V, Dai D, Shu C, Mao L (2009). Temporal variation of soil moisture over the Wuding River Basin assessed with an eco-hydrological model, in-situ observations and remote sensing. Hydrology and Earth System Sciences, 13, 1375-1398 CrossRef
[20] Liu SX(刘苏峡), Mao LX(毛留喜), Mo XG(莫兴国), Zhao WM(赵卫民),Lin ZH(林忠辉) (2008). Analysis of spatial variability of soil moisture and its driving force factors in the Shaanxi-Henan region along the Yellow River. Climatic and Environmental Research(气候与环境研究), 13, 645-657.(in Chinese with English abstract) CrossRef
[21] Liu SX(刘苏峡), Mo XG(莫兴国), Li J(李俊), Liu WD(刘伟东) (1999). The effects of soil moisture and soil atmosphere interface on water heat transfer in winter wheat field. GEOGRAPHICAL RESEARCH(地理研究), 18, 24-30.(in Chinese with English abstract) CrossRef
[22] Mahmood R, Hubbard KG (2007). Relationship between soil moisture of near surface and multiple depths of the root zone under heterogeneous land uses and varying hydroclimatic conditions. Hydrol.Process, 21,3449-3462
[23] Martinez C, Hancock GR, Kalma JD, Wells T (2008). Spatio-temporal distribution of near-surface and root zone soil moisture at the catchment scale. Hydrol. Process, 22, 2699-2714
[24] Mo XG, Qiu JX, Liu SX, Naeimi V (2011). Estimating root-layer soil moisture for the North China Plain from multiple data sources In:Mohsin Hafeez (ed.)Grace, Remote sensing and ground-based methods in multi-scale hydrology, IAHS publication , 343, 118-124. CrossRef
[25] Ragab R (1995). Towards a continuous operational system to estimate the root - zone soil moisture from intermittent remotely sensed surface moisture. Journal of Hydrology, 173, 1-25 CrossRef
[26] Ren L(任理), Li CY(李春友), Li YZ(李韵珠) (1998). Applications of new model to simulating the moisture variation of layered clayey soils. Journal of China Agricultural University (中国农业大学学报), 3(1), 57-62. (in Chinese with English abstract) CrossRef
[27] Robock, A, Vinnikov KY, Srinivasan G, Entin JK, Hollinger SE, Speranskaya NA, Liu SX, Namkhai A (2000). The Global Soil Moisture Data Bank Bull. Amer. Meteorol. Soc. 81, 1281-1299 2.3.CO;2">CrossRef
[28] Sanderson K (2009), Satellite launches to track the world's water, Nature, November, doi:10.1038/news.2009.1054
[29] Science News:How Dry We Are: European Space Agency To Test Earth's Soil Moisture Via Satellite,2008, April 24
[30] Sun L(孙林), Xiong W(熊伟), Guan W(管伟), Wang YH(王彦辉), Xu LH(徐丽宏) (2011). Use of storage water in Larix principis-ruprechtii and its response to soil water content and potential evapotranspiration: a modeling analysis, Chinese Journal of Plant Ecology(植物生态学报), 35(4), 411-421.(in Chinese with English abstract) 摘要
[31] Yang JJ(杨静敬), Cai HJ(蔡焕杰), Wang SH(王松鹤), Xie HX(谢恒星) (2010). Relationship between soil moisture in surface layer and in deeper depth in Yangling. Agricultural Research in the Arid Areas(干旱地区农业研究), 28, 53- 57.(in Chinese with English abstract) CrossRef
[32] Wang HL(王红丽), Zhang XC(张绪成), Song SY(宋尚有) (2011). Effects of mulching methods on soil water dynamics and corn yield of rain-fed cropland in the semiarid area of China. Chinese Journal of Plant Ecology(植物生态学报), 35(8), 825-833. (in Chinese with English abstract) 摘要
[33] Wei YF(魏雅芬), Guo K(郭柯), Chen JQ(陈吉泉) (2009). Effect of precipitation pattern on recruitment of soil water in Kubuqi Desert, Northwestern China, Journal of Plant Ecology(Chinese Version)(植物生态学报), 32(6), 1346-1355 摘要
[34] Zhan DJ (詹道江),Ye SZ(叶守泽) (2007). Engineering Hydrology(工程水文学),中国水利水电出版社,北京,2007 [35] Zhang JY(张井勇), Wu LY(吴凌云) (2011). Land-atmosphere coupling amplifies hot extremes over China. Chinese Sci Bull(科学通报), 56(23), 1905-1909 CrossRef
