Chin J Plant Ecol ›› 2010, Vol. 34 ›› Issue (7): 845-854.DOI: 10.3773/j.issn.1005-264x.2010.07.010
• Research Articles • Previous Articles Next Articles
YANG Jie, TIAN Yong-Chao, YAO Xia, CAO Wei-Xing, ZHU Yan*()
Received:
2009-11-26
Accepted:
2010-03-01
Online:
2010-11-26
Published:
2010-07-01
Contact:
ZHU Yan
YANG Jie, TIAN Yong-Chao, YAO Xia, CAO Wei-Xing, ZHU Yan. Estimating leaf carotenoid content with hyperspectral parameters in rice[J]. Chin J Plant Ecol, 2010, 34(7): 845-854.
光谱指数 Hyperspectral index | 计算公式或定义 Algorithm formula or definition | 参考文献 Reference |
---|---|---|
比值光谱指数 Simple ratio spectral indices | ||
SR ( λ1, λ2) | Rλ1 / Rλ2 | This work |
PSSRc | R800 / R470 | |
R760/R550 | R760 / R550 | |
VI2 | R1200 / R553 | |
归一化差值光谱指数 Normalized difference spectral indices | ||
ND (λ1, λ2) | (Rλ1 - Rλ2 ) / (Rλ1 + Rλ2 ) | This work |
PSNDc | (R800 - R470 ) / (R800 + R470 ) | |
其他类型光谱指数 Other spectral indices | ||
CRI550 | 1/R510 - 1/R550 | |
CRI700 | 1/R510 - 1/R700 | |
R672/(R550 × R708) | R672 / (R550 × R708) |
Table 1 Different hyperspectral indices used in this study
光谱指数 Hyperspectral index | 计算公式或定义 Algorithm formula or definition | 参考文献 Reference |
---|---|---|
比值光谱指数 Simple ratio spectral indices | ||
SR ( λ1, λ2) | Rλ1 / Rλ2 | This work |
PSSRc | R800 / R470 | |
R760/R550 | R760 / R550 | |
VI2 | R1200 / R553 | |
归一化差值光谱指数 Normalized difference spectral indices | ||
ND (λ1, λ2) | (Rλ1 - Rλ2 ) / (Rλ1 + Rλ2 ) | This work |
PSNDc | (R800 - R470 ) / (R800 + R470 ) | |
其他类型光谱指数 Other spectral indices | ||
CRI550 | 1/R510 - 1/R550 | |
CRI700 | 1/R510 - 1/R700 | |
R672/(R550 × R708) | R672 / (R550 × R708) |
样本集 Sample | 试验 Experiment | 样本数 No. of sample | 最小值 Min. value | 最大值 Max. value | 平均值 Mean value | 标准偏差 SD | 变异系数 CV (%) |
---|---|---|---|---|---|---|---|
建模样本 Modeling | EXP. 1, EXP. 2 | 400 | 0.136 | 0.854 | 0.544 | 0.157 | 28.8 |
测试样本 Testing | EXP. 3, EXP. 4 | 223 | 0.217 | 0.866 | 0.576 | 0.130 | 22.7 |
Table 2 Changes in carotenoid content of rice leaves (mg·g-1 FW)
样本集 Sample | 试验 Experiment | 样本数 No. of sample | 最小值 Min. value | 最大值 Max. value | 平均值 Mean value | 标准偏差 SD | 变异系数 CV (%) |
---|---|---|---|---|---|---|---|
建模样本 Modeling | EXP. 1, EXP. 2 | 400 | 0.136 | 0.854 | 0.544 | 0.157 | 28.8 |
测试样本 Testing | EXP. 3, EXP. 4 | 223 | 0.217 | 0.866 | 0.576 | 0.130 | 22.7 |
Fig. 1 Changes in carotenoid content of top leaves with growth process in rice (EXP. 2, ‘Wuxiangjing14’). N0, N1, N2, N3, treatments of 0, 90, 240 and 360 kg N·hm-2, respectively. L1, L2, L3, L4, the 1st, 2nd, 3rd, 4th leaf from top, respectively.

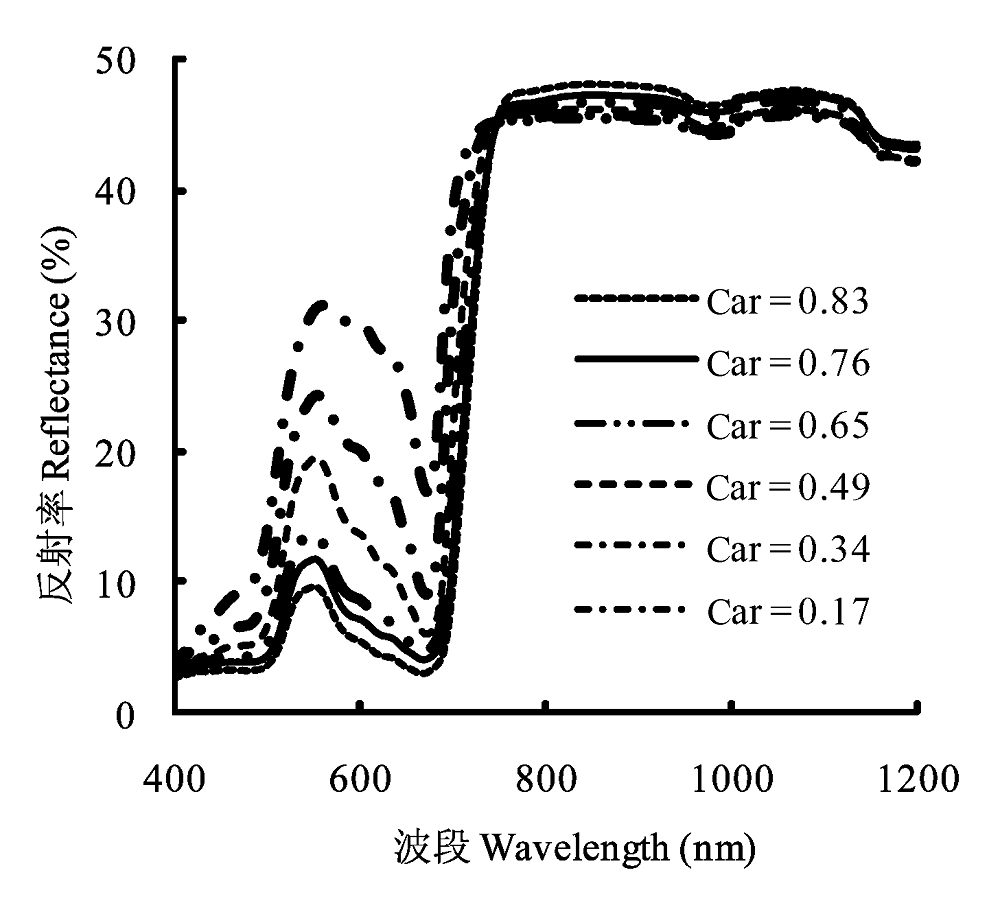

Fig. 4 A contour map of coefficients of determination (R2) between total carotenoid content and simple ratio spectral indices (A), normalized difference spectral indices (B) based on two separate wavelengths on x and y axes.
光谱指数 (x) Spectral index | 回归方程 Regression equation | 拟合精度 S-R2 | 预测精度 P-R2 | 均方根差 RMSE | 平均相对误差 RE (%) |
---|---|---|---|---|---|
SR (723, 770) | y = -2.0382x + 2.1014 | 0.897 | 0.856 | 0.072 | 11.9 |
ND (770, 713) | y = 1.9306x + 0.0514 | 0.898 | 0.858 | 0.072 | 12.0 |
SR (554, 773) | y = -1.6552x + 1.0831 | 0.854 | 0.782 | 0.074 | 12.8 |
ND (773, 562) | y = 1.494x - 0.2512 | 0.867 | 0.794 | 0.075 | 12.7 |
PSSRc | y = 0.0734x - 0.2458 | 0.718 | 0.516 | 0.157 | 25.2 |
PSNDc | y = 4.0897x - 2.8301 | 0.712 | 0.549 | 0.141 | 23.1 |
CRI550 | y = 0.0697x - 0.0242 | 0.741 | 0.549 | 0.137 | 22.1 |
CRI700 | y = 0.0716x - 0.0632 | 0.680 | 0.418 | 0.140 | 23.0 |
R760 /R500 | y = 0.0742x - 0.1306 | 0.798 | 0.617 | 0.131 | 21.2 |
VI2 | y = 0.2033x - 0.0782 | 0.815 | 0.781 | 0.089 | 14.5 |
R672/(R550×R708) | y = 0.3762x - 0.0132 | 0.584 | 0.632 | 0.079 | 18.5 |
Table 3 Quantitative relationships of leaf carotenoid content in rice (y) to different spectral indices (x) (n = 400) and their predicting performance (n = 223)
光谱指数 (x) Spectral index | 回归方程 Regression equation | 拟合精度 S-R2 | 预测精度 P-R2 | 均方根差 RMSE | 平均相对误差 RE (%) |
---|---|---|---|---|---|
SR (723, 770) | y = -2.0382x + 2.1014 | 0.897 | 0.856 | 0.072 | 11.9 |
ND (770, 713) | y = 1.9306x + 0.0514 | 0.898 | 0.858 | 0.072 | 12.0 |
SR (554, 773) | y = -1.6552x + 1.0831 | 0.854 | 0.782 | 0.074 | 12.8 |
ND (773, 562) | y = 1.494x - 0.2512 | 0.867 | 0.794 | 0.075 | 12.7 |
PSSRc | y = 0.0734x - 0.2458 | 0.718 | 0.516 | 0.157 | 25.2 |
PSNDc | y = 4.0897x - 2.8301 | 0.712 | 0.549 | 0.141 | 23.1 |
CRI550 | y = 0.0697x - 0.0242 | 0.741 | 0.549 | 0.137 | 22.1 |
CRI700 | y = 0.0716x - 0.0632 | 0.680 | 0.418 | 0.140 | 23.0 |
R760 /R500 | y = 0.0742x - 0.1306 | 0.798 | 0.617 | 0.131 | 21.2 |
VI2 | y = 0.2033x - 0.0782 | 0.815 | 0.781 | 0.089 | 14.5 |
R672/(R550×R708) | y = 0.3762x - 0.0132 | 0.584 | 0.632 | 0.079 | 18.5 |
Fig. 5 Relationships of leaf corotenoid content in rice to the simple ratio spectral index SR (723, 770) and normalized difference spectral index ND (770, 713) in rice (n = 400). ①, elongation; ②, bloting; ③, heading; ④, early filling; ⑤, middle filling; ⑥, late filling. L1, L2, L3, L4 see Fig. 1.
Fig. 6 Comparison between the predicted and observed leaf carotenoid content in rice based on simple ratio spectral index SR (723, 770) and normalized difference spectral index ND (770, 713) (n = 223). RE、RMSE, see Table 3.
[1] | Biswall B (1995). Carotenoid catabolism during leaf senescence and its control by light. Journal of Photochemistry and Photobiology, 30, 3-13. |
[2] | Blackburn GA (1998). Quantifying chlorophylls and caroteniods at leaf and canopy scales: an evaluation of some hyperspectral approaches. Remote Sensing of Environment, 66, 273-285. |
[3] | Carter GA (1994). Ratios of leaf reflectances in narrow wavebands as indicators of plant stress. International Journal of Remote Sensing, 15, 697-704. |
[4] | Chappelle EW, Kim MS, McMurtrey JE (1992). Ratio analysis of reflectance spectra RARS: an algorithm for the remote estimation of the concentrations of chlorophyll a, chlorophyll b, and carotenoids in soybean leaves. Remote Sensing of Environment, 39, 239-247. |
[5] | Chen WJ (陈维君), Zhou QF (周启发), Huang JF (黄敬峰) (2006). Estimation pigment contents in leaves and panicles of rice after milky ripening by hyperspectral vegetation indices. Chinese Journal of Rice Science (中国水稻科学), 20, 434-439. (in Chinese with English abstract) |
[6] | Datt B (1998). Remote sensing of chlorophyll a, chlorophyll b, chlorophyll a+b, and total carotenoid content in Eucalyptus leaves. Remote Sensing of Environment, 66, 111-121. |
[7] | Demmig-Adams B, Adams WW (1996). The role of xanthophyll cycle carotenoids in the protection of photosynthesis. Trends in Plant Science, 1, 21-26. |
[8] | Gamon JA, Peñuelas J, Field CB (1992). A narrow-waveband spectral index that tracks diurnal changes in photosynthetic efficiency. Remote Sensing of Environment, 41, 35-44. |
[9] | Gitelson AA, Merzlyak MN (1994). Quantitative estimation of chlorophyll a using reflectance spectra: experiments with autumn chestnut and maple leaves. Journal of Photochemistry and Photobioliology B: Biology, 22, 247-252. |
[10] | Gitelson AA, Merzlyak MN (1997). Remote estimation of chlorophyll content in higher plant leaves. International Journal of Remote Sensing, 18, 2691-2697. |
[11] |
Gitelson AA, Zur Y, Chivkunova OB, Merzlyak MN (2002). Assessing carotenoid content in plant leaves with reflectance spectroscopy. Photochemistry and Photobiology, 75, 272-281.
URL PMID |
[12] | Lichtenthaler HK (1987). Chlorophylls and carotenoids: the pigments of photosynthetic biomembranes. Methods in Enzymology, 148, 331-382. |
[13] | Lichtenthaler HK (1996). Vegetation stress: an introduction to the stress concept in plants. Journal of Plant Physiology, 148, 3-14. |
[14] | Merzlyak LN, Gitelson AA (1995). Why and what for the leaves are yellow in autumn? On the interpretation of optical spectra of senescing leaves (Acer platanoides L.). Journal of Plant Physiology, 145, 315-320. |
[15] | Merzlyak MN, Gitelson AA, Chivkunova OB, Rakitin VY (1999). Nondestructive optical detection of leaf senescence and fruit ripening. Physiologia Plantarum, 106, 135-141. |
[16] | Peñuelas J, Baret F, Filella I (1995). Semi-empirical indices to assess carotenoid/chlorophyll a ratio from leaf spectral. Photosynthetica, 31, 221-230. |
[17] | Peñuelas J, Filella I (1998). Visible and near-infrared reflectance techniques for diagnosing plant physiological status. Trends in Plant Science, 3, 151-156. |
[18] | Sims DA, Gamon JA (2002). Relationships between leaf pigment content and spectral reflectance across a wide range of species, leaf structures and developmental stages. Remote Sensing of Environment, 81, 337-354. |
[19] | Sun XM (孙雪梅) (2005). The Study on Hyperspectral Variables in Predicting Nitrogen Status, Pigments Content and Grain Protein Content in Rice (利用高光谱参数预测水稻氮素状况、色素含量和籽粒蛋白含量的研究) Master’s Degree Dissertation, Zhejiang University, Hangzhou. 46-47. (in Chinese with English abstract) |
[20] | Tang YL (唐延林), Huang JF (黄敬峰), Wang RC (王人潮) (2004). Change law of hyperspectral data with chlorophyll and caroteniod for rice at different developmental stages. Chinese Journal of Rice Science (中国水稻科学), 18, 59-66. (in Chinese with English abstract) |
[21] | Tang YL (唐延林), Wang JH (王纪华), Huang JF (黄敬峰), Wang RC (王人潮), He QX (何秋霞) (2003). Variation law of hypersprctral data and chlorophyll and carotenoid for rice in mature process. Transactions of the Chinese Society of Agricultural Engineering (农业工程学报), 19(6), 167-173. (in Chinese with English abstract) |
[22] | Wang FM (王福民), Huang JF (黄敬峰), Wang XZ (王秀珍) (2009). Normalized difference ratio pigment index for estimating chlorophyll and carteniod contents of in leaves of rice. Spectroscopy and Spectral Analysis (光谱学与光谱分析), 29, 1064-1068. (in Chinese with English abstract) |
[23] | Zarco-Tejada PJ, Miller JR, Mohammed GH, Noland TL, Sampson PH (2001). Scaling-up and model inversion methods with narrow-band optical indices for chlorophyll content estimation in closed forest canopies with hyperspectral data. IEEE Transactions on Geoscience and Remote Sensing, 39, 1491-1507. |
