Soil respiration and the 20-year change in three temperate forests in Mt. Dongling, Beijing
YAO Hui, HU Xue-Yang, ZHU Jiang-Ling, ZHU Jian-Xiao, JI Cheng-Jun, FANG Jing-Yun*,
Department of Ecology, College of Urban and Environmental Sciences, and Key Laboratory for Earth Surface Processes of the Ministry of Education, Peking University, Beijing 100871, China
土壤呼吸是陆地生态系统最主要的碳释放过程。为了探讨温带森林土壤呼吸在长时间尺度的变化, 利用北京东灵山地区的白桦(Betula platyphylla)林、辽东栎(Quercus wutaishanica)林和油松(Pinus tabuliformis)林3种温带森林永久样地, 于2012-2015年对其土壤呼吸进行测定, 并与1994-1995年的测定结果进行了比较。结果显示: 2012-2015年, 白桦林的平均年土壤呼吸量为(574 ± 21) g C·m-2·a-1, 显著高于辽东栎林(455 ± 31) g C·m-2·a-1和油松林(414 ± 35) g C·m-2·a-1, 比20年前(1994-1995年)的估测值分别增加了85%、17%和73%。这些结果表明, 近20年来这3种生态系统的碳周转速率明显加快。
关键词:土壤呼吸
;
5 cm土壤温度
;
温度敏感性系数(Q10)
;
年通量
;
温带森林
Abstract
Aims
Our objective was to explore changes in soil respiration of three temperate forests in Mt. Dongling, Beijing over the last 20 years from the year of 1994-1995 to 2012-2015.
Methods
We re-investigated the permanent plots of three temperate forests (Betula platyphylla forest, Quercus wutaishanica forest and Pinus tabuliformis forest) which were established in 1992. We measured soil respiration for 3 years (2012-2015) using a LI-8100 Soil Respiration System. Continuous soil temperatures at 5 cm depth were measured at the same time. Annual soil respiration was accumulated using a relationship between soil respiration and soil temperature .
Important findings
We found that soil respiration rates were significantly correlated with soil temperature at 5 cm depth and that these correlations differed remarkably among the three forests. Annual soil respiration in B. platyphylla forest was highest, with a 3-year average of (574 ± 21) g C·m-2, followed by Q. wutaishanica forest ((455 ± 31) g C·m-2) and P. tabuliformis forest ((414 ± 35) g C·m-2). In the past 20 years, annual soil respiration in all these forests increased significantly: compared to 1994-1995, the average in 2012-2015 increased by 85%, 17% and 73% for B. platyphylla, Q. wutaishanica, and P. tabuliformis forests, respectively.
Keywords:soil respiration
;
soil temperature at 5 cm depth
;
temperature sensitivity (Q10)
;
annual flux
;
temperate forest
YAOHui, HUXue-Yang, ZHUJiang-Ling, ZHUJian-Xiao, JICheng-Jun, FANGJing-Yun. Soil respiration and the 20-year change in three temperate forests in Mt. Dongling, Beijing. Chinese Journal of Plant Ecology, 2015, 39(9): 849-856 https://doi.org/10.17521/cjpe.2015.0081
Fig. 1 Relationships between soil respiration and soil temperature at 5 cm depth in three temperate forests on Mt. Dongling, Beijing. A, Betula platyphylla forest. B, Quercus wutaishanica forest. C, Pinus tabuliformis forest.

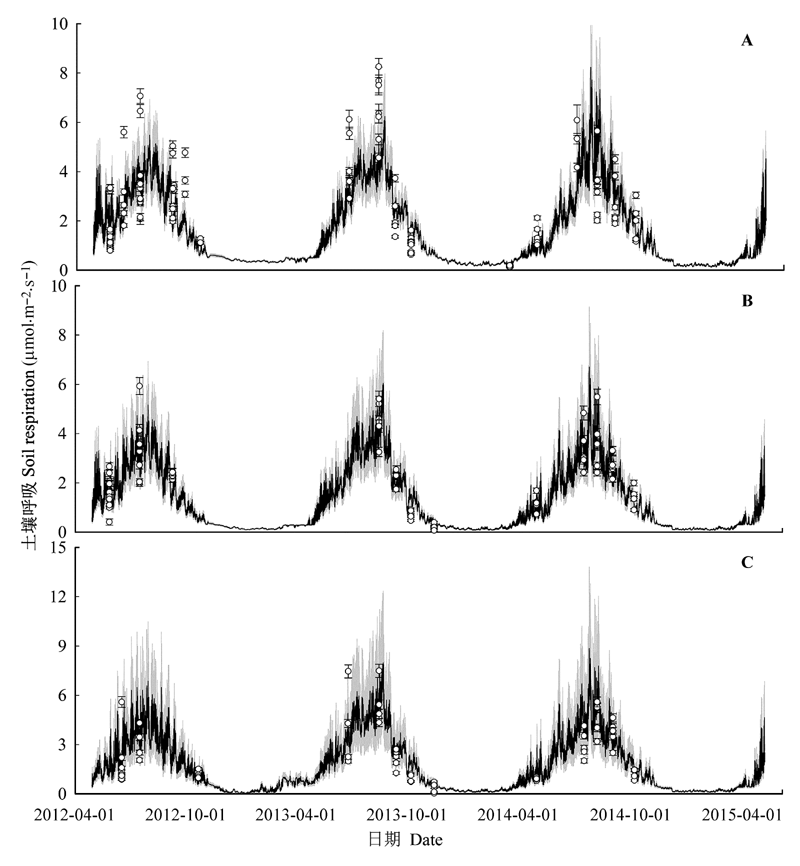

Fig. 2 Temporal patterns of model fitted (line) and measured (point) soil respiration in three temperate forests on Mt. Dongling, Beijing. A, Betula platyphylla forest. B, Quercus wutaishanica forest. C, Pinus tabuliformis forest.
2.3 土壤呼吸年通量及20年的变化
根据土壤呼吸速率与土壤表层5 cm温度关系的Q10模型, 分别推算2012-2015年间3种森林的土壤呼吸年通量。结果显示, 白桦林的平均年通量为(574 ± 21) g C·m-2·a-1, 显著高于辽东栎林((455 ± 31) g C·m-2·a-1)和油松林((414 ± 35) g C·m-2·a-1) (图3)。
Fig. 3 Averaged annual soil respiration flux in three temperate forests on Mt. Dongling, Beijing. a and b denote significant difference among forest types at α = 0.05.
如前所述, 采用相似的土壤呼吸测定方法, 刘绍辉等(1998)于1994-1995年对3块样地的土壤呼吸进行了测定。白桦林、辽东栎林和油松林的土壤呼吸的年通量分别为310、390和240 g C·m-2·a-1。20年来, 3种森林的土壤呼吸年通量分别增加了85%、17%和73%。
为了与温带地区其他森林的土壤呼吸进行比较, 我们搜集了国内外温带森林土壤呼吸的相关文献(表2)。结果发现, 温带阔叶林的土壤呼吸年通量为464- 1105 g C·m-2·a-1, 平均值为739 g C·m-2·a-1, 高于我们的测定值, 即便是年通量最大的白桦林(574 g C·m-2·a-1)也处于表2中的较低水平。相对于表2中的温带针叶林土壤呼吸年通量(403-1300 g C·m-2·a-1, 平均值620 g C·m-2·a-1), 本研究中的油松林也处于较低水平(413 g C·m-2·a-1)。这可能是由于早期研究多用碱吸收法, 高估了呼吸速率(方精云等, 1995; Grogan & Chapin III, 1999)。
Table 2
表2
表2 温带森林年土壤呼吸量(g C·m-2·a-1)
Table 2 Annual soil respiration of temperate forests (g C·m-2·a-1)
地点 Locality
经纬度 Location
主要树种 Dominant species
年呼吸量1) Annual soil respiration1)
文献来源 Reference
温带阔叶林 Temperate broad-leaved forests
英国肯特郡 Kent, England
51.33° N, 1.08° E
Castanea sativa
630a
Anderson, 1973
英国肯特郡 Kent, England
51.33° N, 1.08° E
Fagus sylvatica
575a
Anderson, 1973
德国海德堡 Heidelberg, Germany
49.33° N, 8.67° E
水青冈 Fagus spp., 云杉 Picea spp.
470a
Dörr & Münnich, 1987
美国华盛顿州 Washington, USA
47.38° N, 121.95° W
Alnus rubra
565a
Vogt et al., 1980
美国明尼苏达州 Minnesota, USA
45.50° N, 93.17° W
栎 Quercus spp.
794b
Reiners, 1968
美国明尼苏达州 Minnesota, USA
45.50° N, 93.17° W
梣 Fraxinus spp.
707b
Reiners, 1968
美国明尼苏达州 Minnesota, USA
45.50° N, 93.17° W
崖柏 Thuja spp., 桦木 Betula spp.
739b
Reiners, 1968
美国密苏里州 Missouri, USA
38.80° N, 92.20° W
栎 Quercus spp., 山核桃 Carya spp.
1 013b
Garrett & Cox, 1973
美国田纳西州 Tennessee, USA
35.97° N, 84.28° W
Lilriodendron tulipifera
1 065b
Edwards & Harris, 1977
美国田纳西州 Tennessee, USA
35.97° N, 84.28° W
Lilriodendron tulipifera
505b
Edwards & Ross-Todd, 1979
美国田纳西州 Tennessee, USA
35.97° N, 84.28° W
栎 Quercus spp., 山核桃 Carya spp.
529b
Edwards & Ross-Todd, 1983
美国田纳西州 Tennessee, USA
35.97° N, 84.28° W
Quercus prinus
610b
Johnson & van Hook, 1989
美国北卡罗来纳州 North Carolina, USA
35.05° N, 83.42° W
栎 Quercus spp.
857 b
Johnson & van Hook, 1989
中国河南 Henan, China
33.47° N, 111.92° E
槲栎 Quercus aliena
1 105c
Chang et al., 2007
中国河南 Henan, China
33.47° N, 111.92° E
槲栎 Quercus aliena
779c
Chang et al., 2007
中国河南 Henan, China
33.47° N, 111.92° E
槲栎 Quercus aliena, 栓皮栎 Quercus variabilis
912c
Chang et al., 2007
中国河南 Henan, China
33.47° N, 111.92° E
栓皮栎 Quercus variabilis
900c
Chang et al., 2007
中国陕西 Shaanxi, China
33.38° N, 108.50° E
槲栎 Quercus aliena
771a
Liu et al., 2003
中国黑龙江 Heilongjiang, China
45.37° N, 127.53° E
蒙古栎 Quercus mongolica
785c
Wang et al., 2006
中国黑龙江 Heilongjiang, China
45.37° N, 127.53° E
山杨 Populus davidiana, 白桦 Betula platyphylla
813c
Wang et al., 2006
中国黑龙江 Heilongjiang, China
45.37° N, 127.53° E
山杨 Populus davidiana, 胡桃楸 Juglans mandshurica
786c
Wang et al., 2006
中国黑龙江 Heilongjiang, China
45.37° N, 127.53° E
水曲柳 Fraxinus mandshurica
781c
Wang et al., 2006
中国河北 Heibei, China
42.50° N, 117.35° E
白桦 Betula platyphylla
575d
Wang et al., 2010
中国北京 Beijing, China
39.95° N, 115.42° E
白桦 Betula platyphylla
574d
本研究 This study
中国北京 Beijing, China
39.95° N, 115.42° E
辽东栎 Quercus wutaishanica
455d
本研究 This study
温带针叶林 Temperate coniferous forests
美国华盛顿州 Washington, USA
47.38° N, 121.95° W
花旗松 Pseudotsuga menziesii
490a
Vogt et al., 1980
美国华盛顿州 Washington, USA
47.38° N, 121.95° W
Tsuga heterophylla
650a
Vogt et al., 1980
美国华盛顿州 Washington, USA
47.32° N, 121.58° W
Abies amabilis
620a
Vogt et al., 1980
美国南卡罗来纳州 South Carolina, USA
33.50° N, 81.67° W
长叶松 Pinus palustris
509a
Reinke et al., 1981
美国佛罗里达州 Florida, USA
30° N, 82° W
湿地松 Pinus elliottii
1 300b
Ewel et al., 1987a
美国佛罗里达州 Florida, USA
30° N, 82° W
湿地松 Pinus elliottii
850b
Ewel et al., 1987b
中国陕西 Shaanxi, China
33.38° N, 108.50° E
油松 Pinus tabuliformis
609a
Liu et al., 2003
中国甘肃 Gansu, China
38.43° N, 99.90° E
青海云杉 Picea crassifolia
584c
Chang et al., 2008
中国甘肃 Gansu, China
38.43° N, 99.90° E
华北落叶松 Larix principis-rupprechtii
570c
Chang et al., 2008
中国甘肃 Gansu, China
38.43° N, 99.90° E
祁连圆柏 Sabina przewalskii
518c
Chang et al., 2008
中国黑龙江 Heilongjiang, China
45.37° N, 127.53° E
红松 Pinus koraiensis
514c
Wang et al., 2006
中国黑龙江 Heilongjiang, China
45.37° N, 127.53° E
兴安落叶松 Larix gmelinii
403c
Wang et al., 2006
中国河北 Heibei, China
42.50° N, 117.35° E
欧洲赤松 Pinus sylvestris
453d
Wang et al., 2010
中国河北 Heibei, China
42.50° N, 117.35° E
华北落叶松 Larix principis-rupprechtii
435d
Wang et al., 2010
中国北京 Beijing, China
39.95° N, 115.42° E
油松 Pinus tabuliformis
414d
本研究 This study
1) Different letters denote the different measurements of soil respiration: a, alkali absorption method; b, infrared gas analyzer; c, LI-6400; d, LI-8100.1)不同字母表示土壤呼吸的测定方法: a, 碱吸收法; b, 红外气体分析仪; c, LI-6400; d, LI-8100。
