花作为被子植物演化的基础(汤晓辛和黄双全, 2012; 王晓月等, 2019), 在花设计(花颜色、花结构、花气味以及花报酬)和花展示(开花进程、花寿命以及花在花序上的数量、空间排列)组成的花部综合征上表现出多样性或可塑性(Barrett, 1998; 黄双全和郭友好, 2000; 张大勇, 2004; Spigler & Kalisz, 2013)。花部综合征的多态性是在极端环境繁殖限制下的繁殖对策及遗传基因共同作用的结果(Nicotra et al., 2010; Spigler & Kalisz, 2013), 它不仅影响传粉媒介的种类、活动及花粉的有效移出和落置效率, 还影响交配格局、后代适合度以及种群扩散能力(Barrett, 2003; Sun et al., 2005; Wiemer et al., 2011), 并进一步驱动物种进化(阮成江等, 2006; Barrett, 2010)。
动物传粉植物在不同极端环境长期适应过程中通过两个或多种多态的花部结构来适应选择压力(Harder & Johnson, 2009), 并形成较为复杂的繁殖方式和交配对策(Barrett et al., 2000; 张大勇和姜新华, 2001)。自从Darwin (1872)首次提出“异型花柱”的概念以来, 学者们对动物传粉植物的花内雌雄蕊空间位置变化导致的花性状的可塑性进行了较为深入的研究, 并提出不同的观点; 如锦葵科的木棉(Bombax ceiba)黄花个体雌雄异位程度较红花个体更大, 能更有效地避免雌雄功能干扰和自花授粉(向文倩和任明迅, 2019); 龙胆科的线叶龙胆(Gentiana lawrencei var. farreri)花开放后通过花柱逐渐伸长来避免单花内的自交(侯勤正等, 2009); 而姜科山姜属(Alpinia)植物通过花柱卷曲来促进异交(张玲和李庆军, 2002; 孙杉等, 2010)。总之, 被子植物的花在传粉者及交配成功率受到限制的极端环境下改变或向多态性方向演化(Brummell et al., 1999; Barrett, 2003; Bonamour et al., 2019)。
传粉是指花粉通过自身或传粉媒介的作用从花粉囊中散发到自花或异花柱头上并萌发成花粉管的过程(黄双全和郭友好, 2000; Zych et al., 2018)。被子植物的有性繁殖过程要依赖不同的传粉媒介, 其中90%的开花植物通过动物传粉(Navarro et al., 2007; Etcheverry et al., 2008; Ivey & Carr, 2011; Ollerton et al., 2011; Shivanna et al., 2020)来实现多样的传粉策略(泛化传粉和专性传粉), 并影响演化趋向(Li et al., 2001; Zych et al., 2018)。动物传粉植物的传粉往往受到生物因素(传粉者和资源分配等)和非生物因素(气候因子等)的影响(Bosch & Blas, 1994; Elliott & Irwin, 2009); 如在早春荒漠环境中的开花植物更易受到风沙、低温、大风等气候因子的影响, 导致植物物候的推迟、传粉昆虫多样性的降低、昆虫群落结构的变化及传粉者活动减少(施雨含等, 2021), 从而影响植物与传粉者之间报酬和服务的平衡节律, 导致“传粉服务”的损失(Arroyo et al., 1985; Bingham & Orthner, 1998; Bhatnagar et al., 2019), 减少落置到柱头上的花粉, 影响植物的繁殖适合度(张大勇和姜新华, 2001; 吴云等, 2015)。在缺乏传粉者或传粉者间竞争激烈的极端环境中, 植物往往会采取多种繁殖策略实现自身的繁殖保障(段元文等, 2007), 一些高山植物会通过改变花寿命来得到更多的交配机会(Pacheco et al., 2016), 在传粉昆虫少的高原环境中线叶龙胆通过延长花寿命内的柱头可授性时间得到更多的传粉机会(侯勤正等, 2009)。
黑果枸杞(Lycium ruthenicum)在我国主要分布于西北地区, 是国家二级保护的多年生灌木(
图1
图1

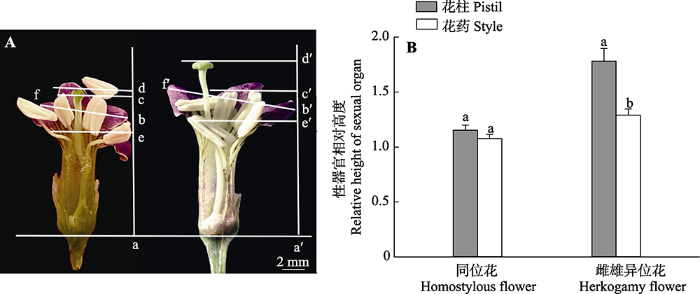

黑果枸杞花各部位特征测量(A)和不同花型花花柱及花药相对高度(B)(平均值±标准误)。a(a′)-e(e′), 花冠筒长度; a(a′)-d(d′), 雌蕊长; a(a′)-c(c′), 雄蕊长; f(f′)-b(b′), 花冠口直径。B中不同小写字母表示同一花型花不同性器官间差异显著(p < 0.05)。
Fig. 1
Measurements of flower traits (A) and relative height of sexual organs (B) of two flower morphs of Lycium ruthenicum (mean ± SE). a(a′)-e(e′), flower length; a(a′)-d(d′), pistil length; a(a′)-c(c′), stamen length; f(f′)-b(b′), corolla diameter. Different lowercase letters in B indicate significant difference between different sexual organs of the same flower morph (p < 0.05).
1 材料和方法
1.1 研究材料与研究地点
黑果枸杞隶属于茄科枸杞属, 为多年生灌木, 主要分布于中亚、高加索和欧洲等地区; 在我国生长在甘肃、宁夏、青海、新疆等地海拔1 100-3 200 m区域, 是重要的“药食同源”型植物资源(米吉提·胡达拜尔地和潘晓玲, 2004)。黑果枸杞花为筒状的两性花, 总状花序, 花萼窄钟状, 花瓣和雄蕊均5枚, 雄蕊着生于花冠筒中部; 花刚开放时花瓣紫色, 花后期逐渐转为白色; 花为雌雄蕊长度一致的同位花(戴国礼等, 2013)。而在新疆南部的不同自然种群及不同个体中, 均出现同位花及雌蕊高于雄蕊的异位花(图1A)。我们对新疆南部16个自然种群调查发现该物种种群结构由同位-异位花同株(47%)、同位-异位花同株和同位-异位花异株共存(33%)、同位-异位花异株(20%) 3种类型构成(未发表数据); 该物种在新疆南部荒漠环境中每年3月中旬开始萌芽, 4月中旬开花, 5月中旬开始进入果实阶段。果实黑紫色, 扁平或圆球形浆果, 种子肾形。
本研究于2017-2019年4-6月在新疆喀什市吐曼河周围的黑果枸杞同位-异位花异株的自然种群(39.47° N, 75.98° E; 海拔1 200-1 280 m)(图2)进行。该区域年平均气温12 ℃, 年降水量70 mm, 春季沙尘暴较多, 气候干燥, 属于典型的暖温带荒漠气候。
图2
图2
新疆喀什黑果枸杞的植株、花序、果实、花型及花颜色变化。A, 雌雄异位花。B, 同位花。C, 异位花花序。D, 同位花花序。E, F, 果实。G, 植株。H, 不同花型花在花寿命内的花色变化(上部为同位花, 下部为异位花)。
Fig. 2
Individual plant, inflorescence, fruit, flower morphs and flower color changes in Lycium ruthenicum in Kashi, Xinjiang, China. A, Herkogamous flower. B, Homostylous flower. C, Inflorescence of herkogamous flower. D, Inflorescence of homostylous flower. E, F, Fruit. G, Individual plant. H, Change of flower color in different phases of flower longevity in two flower morphs of L. ruthenicum (upper, homostylous flower; lower, herkogamous flower).
1.2 研究方法
1.2.1 花部特征及性分配特点检测
1.2.1.1 花各部位特征及性分配特点的检测
随机标记处于盛花期的同位及异位植株各20株, 从每个植株随机标记发育良好的花各3朵, 两种类型花各60朵, 共120朵, 在花寿命早期(紫色)以及花后期(白色)(图2A、2B、2H), 均选取20朵带回实验室, 使用便携式SE-2000型数显电子游标卡尺(精度为0.02 mm)测量每朵花的花冠直径、花冠筒长度、雌雄蕊长度(雄蕊的长度为平均雄蕊长度)、雌雄蕊空间距离(雄蕊长度-雌蕊长度)、花冠口与雄蕊间距离(花冠筒长度-雄蕊长度)及花冠口与雌蕊间距离(花冠筒长度-雌蕊长度), 并计算雌(雄)蕊器官相对高度, 雌(雄)蕊相对高度=雌(雄)蕊长度/花冠筒长度。在盛花期内随机选取两种类型植株的新鲜且花药未开裂的花各10朵, 将每一朵花的花药全部取下放在离心管中, 充分压碎, 加入2 mL水充分摇匀制成花粉溶液, 使用5 µL微量进样器将花粉液滴于载玻片上做5个视野点(每个视野点为1 µL), 每朵花重复6次, 在Motic B1型光学显微镜下统计花粉数量, 计算单花总花粉数; 同时将两种类型花的子房置于SZM45型解剖镜下解剖, 统计其胚珠数, 用平均花粉粒数除以胚珠数计算花粉胚珠比(P/O值)。
1.2.1.2 花粉活力和柱头可授期特点检测
用MTT法(Dafni, 2005)检测不同类型花在花寿命早期和后期的花粉活力, 从两种类型植株随机标记即将开放的花各50朵, 在花刚开放(花冠紫色)、花药散粉、花冠淡紫色、花冠白色以及花冠褐色时(图2H)各选取10朵花, 取少许花粉置载玻片上滴加MTT溶液静置10 min后在Motic B1光学显微镜下观察, 若被染成蓝紫色则为有活力的花粉, 未被染色则为无活力花粉, 计算花粉活力百分比(花粉活力百分比=被染色花粉数/(被染色花粉数+未被染色花粉数) × 100%); 同时取花柱头, 用联苯胺-H2O2溶液染色, 若柱头被染成蓝色且有大量的气泡, 则柱头具有可授性, 无气泡或气泡很少则说明柱头没有可授性(Dafni, 2005)。
1.2.2 开花式样观察
为比较该物种同位及异位花植株的开花式样特点, 在自然种群中开展以下实验: (1)种群水平: 记录种群中同位及异位花植株的第一朵花开放到最后一朵花凋落的持续时间; (2)个体水平: 随机标记大小不同的同位及异位花各20个植株, 记录每个植株上第一朵花开放到最后一朵花凋落的持续时间; (3)单花水平: 从不同花型植株中随机选取10株, 从每个植株选取4个花苞, 各40朵花, 观察并记录花寿命(花蕾打开至花凋落的持续时间)。
1.2.3 花报酬的测定
为了检测两种类型花在花寿命早期和后期的花报酬(花蜜)是否存在差异, 每天从两种类型花植株随机标记将要开放的花各选10朵并套网袋, 在紫色和白色阶段用2 μL毛细管对标记花的花蜜分泌量(μL)进行测量, 每次测量在同一朵花上进行, 测完后套袋以隔离传粉者, 重复3次。另取两种类型花植株紫色和白色阶段的花各70朵, 放入20 mL顶空瓶内, 用压盖器封紧瓶盖, 室温放置2 h后用Portable Electronic Nose PEN3型电子鼻(Airsense Analytics, Schwerin, Germany), 10种传感器检测不同类型花花气味中的化学成分, 计算每种化合物占总化合物含量的百分比, 检测时间调至60 s, 传感器自动清洗时间调至120 s, Connectvial倒计时提示1 s时, 同时将进样针和补气针插入顶空进样器至瓶身2/3处, 开始检测挥发性物质, 当Removevial倒计时提示1 s时迅速拔出进样针和补气针, 停止检测, 各重复检测3次。
1.2.4 传粉生物学特性观测
在盛花期晴朗天气里, 随机标记同位和异位花植株各10个, 从每个植株选取随机标记发育良好且第二天早晨即将开放的花5朵, 在单花花期内的每天10:00-18:00 (每小时观测30 min, 每天共观测 240 min), 观测昆虫访花频率及停留时间的变化规律; 同时, 通过摄影仪拍摄主要传粉者在花寿命早期和后期的访花行为变化规律。用昆虫网捕获昆虫(每种6只), 放入毒瓶致死后, 将各类访花昆虫的一部分制成标本用于种类鉴定, 另一部分在Nikon SMZ-800N型数码体视解剖镜下观察携粉部位, 并用70%的乙醇冲洗数次, 将冲洗液涂片置Motic B1型光学显微镜下, 通过昆虫携带的花粉与不同花型花的花粉比较观察, 以判断其是否为传粉者。
1.2.5 传粉效率、坐果率及结籽率检测
为了检测同位及异位花在花寿命早期和后期的花粉传递效率及其坐果率和结籽率间的差异, 在盛花期选取两种类型花植株各10株, 从每个植株上标记发育状态及大小一致的花6朵, 做以下3种实验: (1)花颜色褪色为淡紫色时(紫色阶段), 从不同花型植株已标记的花中选取2朵, 将其柱头和5枚花药分别且对应地放在5 mL的离心管内, 将花药捣碎, 加入2 mL水制成花粉溶液, 摇匀后使用5 µL微量进样器将花粉液滴于载玻片上做5个视野点(每个视野点为1 µL), 在Motic B1型光学显微镜下统计每朵花花药内剩余的花粉数, 每朵花重复6次; 将柱头置于载玻片上滴加1-2滴蒸馏水, 在Motic B1型光学显微镜下统计落置在柱头上的花粉数; (2)花快掉落时(白色阶段), 从不同花型植株各另选已标记的2朵花, 将其柱头和花药分别且对应地放在离心管内, 统计落置在柱头上的花粉数以及每朵花花药内剩余的花粉数; (3)不同花型各植株剩余的2朵花做标记, 在果实成熟时, 统计坐果率和结籽率。参照Gong和Huang (2014)的方法计算花粉传递效率(PE), PE = D/(P - R) × 100%, 其中D为每朵花落置到柱头上的总花粉数, P为单花总花粉数, R为每朵花上剩余花粉数; 紫色阶段被移出花粉数=单花平均花粉数-紫色阶段花上剩余的花粉数, 而白色阶段被移出花粉数=紫色阶段花上剩余的花粉数-快掉落花上剩余的花粉数。花寿命早期和后期的花粉移出率(PR)通过公式PR = (P - R)/P × 100%来计算, 其中的P为单花总花粉数或紫色阶段花上剩余的花粉数, R为不同颜色阶段花上剩余的花粉数。
1.3 数据分析
数据分析在SPSS 22.0软件中进行, 所有数据在分析前均进行方差齐性和正态分布检验, 对服从正态分布的数据, 利用广义线性模型中的正态分布模型-恒定函数, 种群花期、个体花期、单花寿命、花部特征、花蜜体积、访花频率、停留时间作为自变量, 两种花型作为因变量进行比较分析。利用泊松分布模型-对数线性函数, 两种花型的花粉数、胚珠数、柱头落置花粉数作为自变量, 两种花型作为因变量进行比较分析。坐果率及结籽率采用二项式分布-Logistic关联函数分析比较。所有统计数据用平均值±标准误表示, 使用SigmaPlot 10.0软件作图。
2 结果和分析
2.1 两种类型花性状
黑果枸杞两种类型花的花部特征受到阶段、花型及阶段和花型交互作用不同程度的影响(表1)。其中同位花在花寿命早期(紫色)和后期(白色)的花冠直径、花冠筒长度及雄蕊长度均比异位花长, 而异位花在花寿命早期和后期的雌-雄蕊空间距离均比同位花长(表1)。异位花雌雄蕊相对高度间存在极显著差异(Wald χ2 = 15.263, p < 0.001, 图1B), 反而同位花间无显著差异(Wald χ2 = 1.668, p = 0.196)。此外, 该物种花的雌蕊在花寿命内有一定的生长, 其中异位花类型更明显(表1)。异位花的花粉数(486 750 ± 142.4)比同位花(188 900 ± 79.4)多, 且花粉胚珠比(21 118.4 ± 1 122.5)比同位花(12 714.2 ± 857.3)高, 并且二者间均存在极显著差异(Wald χ2花粉数 = 3 418 750.190, p < 0.001; Wald χ2P/O = 35.410, p < 0.001), 反而后者的胚珠数(21.3 ± 1.1)比前者(17.3 ± 0.8)多, 且二者间存在显著差异(Wald χ2 = 359.720, p < 0.001)。
表1 黑果枸杞同位花和雌雄异位花在花寿命早期(紫色)和后期(白色)花部特征(平均值±标准误)的比较(广义线性模型)
Table 1
| 花部特征 Flower characteristic | 紫色阶段 Purple phase | 白色阶段 White phase | 花型×阶段 Morph × phase | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 同位花 Homostylous flower | 雌雄异位花 Herkogamous flower | Wald χ12 | p1 | 同位花 Homostylous flower | 雌雄异位花 Herkogamous flower | Wald χ22 | p2 | Wald χ32 | p3 | |
| 花冠直径 Corolla diameter (mm) | 8.29 ± 0.25 | 7.36 ± 0.33 | 10.411 | 0.001 | 7.18 ± 0.23 | 6.70 ± 0.43 | 0.914 | 0.659 | 17.380 | 0.001 |
| 花冠筒长 Corolla tube length (mm) | 14.28 ± 0.31 | 10.70 ± 0.54 | 32.514 | <0.001 | 14.92 ± 0.39 | 9.71 ± 0.57 | 57.284 | <0.001 | 4.188 | 0.242 |
| 雌蕊长 Pistil length (mm) | 11.99 ± 0.33 | 12.20 ± 0.57 | 0.104 | 0.747 | 12.06 ± 0.33 | 13.07 ± 0.48 | 3.005 | 0.083 | 0.043 | 0.998 |
| 雄蕊长 Stamen length (mm) | 11.99 ± 0.24 | 10.20 ± 0.42 | 13.574 | <0.001 | 12.37 ± 0.36 | 11.14 ± 0.53 | 3.745 | 0.053 | 1.481 | 0.687 |
| 雌雄蕊空间距离 Stamen-stigma distance (mm) | 0.65 ± 0.16 | 2.00 ± 0.27 | 18.588 | <0.001 | 1.02 ± 0.18 | 1.93 ± 0.27 | 8.042 | 0.005 | 4.358 | 0.225 |
| 雌蕊-花冠口距离 Corolla tube-stigma distance (mm) | 2.29 ± 0.22 | 1.50 ± 0.39 | 3.175 | 0.075 | 2.86 ± 0.28 | 3.36 ± 0.42 | 0.975 | 0.323 | 12.430 | 0.006 |
| 雄蕊-花冠口距离 Corolla tube-stamen distance (mm) | 0.70 ± 0.28 | 2.29 ± 0.16 | 24.444 | <0.001 | 2.55 ± 0.29 | 1.86 ± 0.42 | 1.865 | 0.172 | 1.208 | 0.751 |
Wald χ12、Wald χ22表示在不同阶段不同花型花部特征各指标之间的比较,Wald χ32表示阶段和花型之间的交互作用。
Wald χ12, Wald χ22 refers to the comparison of flower characteristics between two flower morphs at different phases; Wald χ32 represents the interaction between phase and morph.
图3
图3

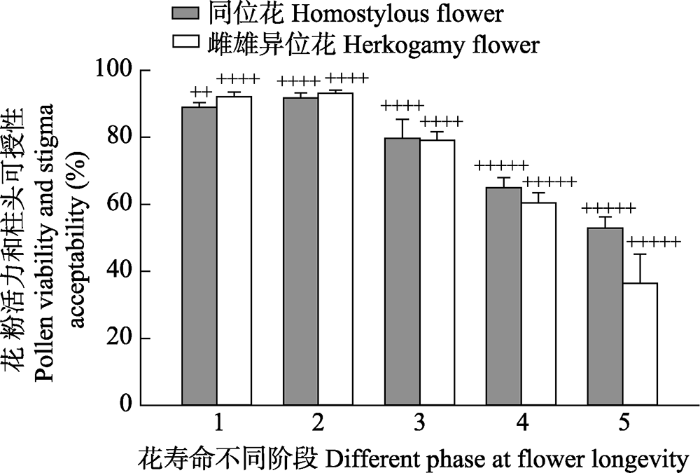

黑果枸杞不同花型花紫色阶段(1、2和3)和白色阶段(4和5)花粉活力及柱头可授性比较(平均值±标准误)。“+”表示柱头可授性强弱程度。
Fig. 3
Pollen viability and stigma acceptability in purple phase (1, 2 and 3) and white phase (4 and 5) of two flower morphs of Lycium ruthenicum (mean ± SE). “+” indicates the degree of acceptability of stigma.
2.2 两种类型花开花式样
黑果枸杞在喀什自然种群中3月中旬开始萌芽, 在4月中旬开花, 种群中同位花个体所占比例(68%)高于异位花个体(32%)。种群水平上, 同位及异位花植株的花期之间存在极显著差异(Wald χ2 = 1 459.545, p < 0.001), 其中同位花植株的种群水平花期(4月中旬至8月, (117.00 ± 2.25) d)比异位花植株长(4月下旬至5月下旬, (26.00 ± 1.00) d)。而个体水平上, 同位花个体的花期((101.65 ± 1.98) d)比异位花个体((18.75 ± 1.00) d)长, 二者之间存在极显著差异(Wald χ2 = 1 472.949, p < 0.001)。异位花的单花寿命((4.50 ± 0.14) d)比同位花((3.13 ± 0.11) d)长, 并且二者间存在极显著差异(Wald χ2 = 59.563, p < 0.001); 两种类型花在花寿命内紫色阶段的持续时间比白色阶段长。
2.3 两种类型花花报酬
黑果枸杞两种类型花的花报酬均为花蜜和花粉, 蜜腺位于花冠筒的基部, 花蜜为无色分泌物。同位花在花寿命早期和后期产生的花蜜量均高于异位花(图4), 其中两种类型花在紫色阶段的花蜜量呈极显著差异(Wald χ2 = 11.975, p < 0.001), 在白色阶段的花蜜量无显著差异(Wald χ2 = 2.636, p = 0.104); 同位和异位花在紫色阶段分泌的花蜜量往往高于白色阶段的花蜜量(Wald χ2同位花 = 14.934, p < 0.001; Wald χ2异位花 = 6.236, p = 0.013, 图4)。两种类型花均分泌10大类化合物, 其中有4类芳香类化合物(表2)。同位花(35.73% ± 1.34%)和异位花(35.29% ± 0.71%)在紫色阶段分泌的芳香类化合物含量无显著差异(Wald χ2 = 0.140, p = 0.708), 而异位花在白色阶段分泌的芳香类物质含量(33.91% ± 0.16%)高于同位花(32.02% ± 0.51%)且差异极显著(Wald χ2 = 18.723, p < 0.001, 图4)。
图4
图4

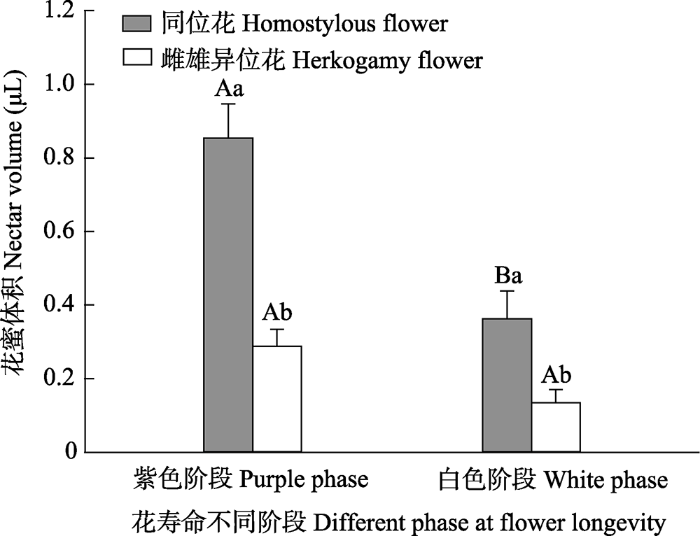

黑果枸杞不同花型花在花寿命早期(紫色)和后期(白色)的花蜜分泌量(平均值±标准误)。不同大写字母表示同种类型不同阶段间的差异显著, 不同小写字母表示同一阶段不同花型间的差异显著(p < 0.05)。
Fig. 4
Nectar volume at early flowering phase (purple) and late phase (white) of two flower morphs of Lycium ruthenicum (mean ± SE). Different uppercase letters indicate significant difference between different phases of the same flower morph, and different lowercase letters indicate significant difference between different flower morphs at the same phase (p < 0.05).
表2 新疆喀什黑果枸杞不同花型花在花寿命不同阶段(紫色和白色)花气味中的化学成分占总化合物百分比(平均值±标准误)的比较
Table 2
| 传感器 Sensor | 物质 Substance | 紫色阶段 Purple phase | 白色阶段 White phase | 花型×阶段 Morph × phase | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 同位花 Homostylous flower | 雌雄异位花 Herkogamy flower | Wald χ12 | p1 | 同位花 Homostylous flower | 雌雄异位花 Herkogamy flower | Wald χ22 | p2 | Wald χ32 | p3 | ||
| W1C | 芳香成分苯类 Benzenoids | 8.58 ± 0.37 | 9.26 ± 0.46 | 1.408 | 0.235 | 6.31 ± 0.20 | 8.23 ± 0.04 | 130.437 | <0.001 | 3.385 | 0.066 |
| W3C | 氨类, 芳香成分 Ammonia, benzenoids | 8.19 ± 0.40 | 7.01 ± 1.49 | 0.463 | 0.496 | 5.45 ± 0.27 | 7.76 ± 0.05 | 106.682 | <0.001 | 3.120 | 0.077 |
| W5C | 烷烃芳香成分 Alkane aromatic composition | 8.06 ± 0.41 | 8.92 ± 0.55 | 1.566 | 0.211 | 5.28 ± 0.28 | 7.64 ± 0.05 | 103.141 | <0.001 | 3.424 | 0.064 |
| W2W | 芳香成分, 有机硫化物 Benzenoids, organic sulfide | 10.92 ± 0.39 | 10.11 ± 0.27 | 4.025 | 0.045 | 14.97 ± 0.24 | 10.28 ± 0.22 | 309.736 | <0.001 | 87.539 | <0.001 |
| W1S | 甲基类 Methyl | 19.83 ± 0.55 | 15.87 ± 1.60 | 4.450 | 0.035 | 25.47 ± 1.01 | 19.86 ± 0.31 | 42.106 | <0.001 | 0.531 | 0.466 |
| W1W | 无机硫化物 Inorganic sulfide | 7.61 ± 2.61 | 10.25 ± 0.22 | 2.484 | 0.115 | 13.67 ± 0.19 | 10.48 ± 0.14 | 267.990 | <0.001 | 9.389 | 0.002 |
| W2S | 醇类, 醛酮类 Alcohols, aldehydes and ketones | 10.40 ± 0.30 | 10.67 ± 0.14 | 1.223 | 0.269 | 10.92 ± 0.39 | 10.70 ± 0.10 | 0.357 | 0.550 | 0.279 | 0.598 |
| W3S | 烷烃 Alkane | 8.28 ± 0.40 | 8.99 ± 0.53 | 1.131 | 0.288 | 5.37 ± 0.27 | 7.77 ± 0.04 | 112.877 | <0.001 | 4.695 | 0.030 |
| W5S | 氮氧化合物 Nitrogen oxides | 9.68 ± 0.29 | 9.85 ± 0.33 | 0.160 | 0.689 | 7.41 ± 0.36 | 9.35 ± 0.09 | 40.361 | <0.001 | 10.389 | 0.001 |
| W6S | 氢化物 Hydride | 8.46 ± 0.39 | 9.08 ± 0.51 | 0.952 | 0.329 | 5.46 ± 0.26 | 7.93 ± 0.05 | 125.947 | <0.001 | 6.120 | 0.013 |
Wald χ12、Wald χ22表示不同花型在不同阶段花气味化学成分之间的比较, Wald χ32表示不同花型和不同阶段之间的交互作用。
Wald χ12, Wald χ22 refers to the comparison of flower odour chemicals between two flower morphs at different phases; Wald χ32 represents the interaction between phase and morph.
2.4 传粉昆虫及访花行为
黑果枸杞两种类型花在喀什自然种群的访花者均为熊蜂(Bombus sp.)、意大利蜜蜂(Apis mellifera)、食蚜蝇(Syrphidae)、淡脉隧蜂(Lasioglossum occidens)、丝光绿蝇(Lucilia sericata)及蚂蚁(Tetramorium sp.); 其中的熊蜂、意大利蜜蜂、食蚜蝇是两种类型花的共同传粉者(图5), 传粉昆虫在花寿命早期和后期访花行为存在差异, 紫色阶段的访花频率往往比白色阶段高(图6)。其中意大利蜜蜂和熊蜂在两种类型花的花寿命早期和后期的访花频率均存在显著差异, 在紫色阶段二者在同位花上的访花频率均比异位花高(Wald χ2意大利蜜蜂 = 4.660, p = 0.031; Wald χ2熊蜂 = 4.292, p = 0.038); 而在白色阶段二者在异位花上的访花频率往往比同位花高(Wald χ2意大利蜜蜂 = 4.706, p = 0.030; Wald χ2熊蜂 = 5.625, p = 0.018)。在紫色阶段传粉者在同位花上的停留时间比异位花长, 其中意大利蜜蜂在两种类型花上停留时间差异显著(Wald χ2 = 8.732, p = 0.003)。
图5
图5
黑果枸杞主要访花昆虫。A, 意大利蜜蜂。B, 熊蜂。C, 食蚜蝇。D, 淡脉隧蜂。E, 丝光绿蝇。
Fig. 5
Main visiting insects of Lycium ruthenicum. A, Apis mellifera. B, Bombus sp. C, Syrphidae. D, Lasioglossum occidens. E, Lucilia sericata.
图6
图6

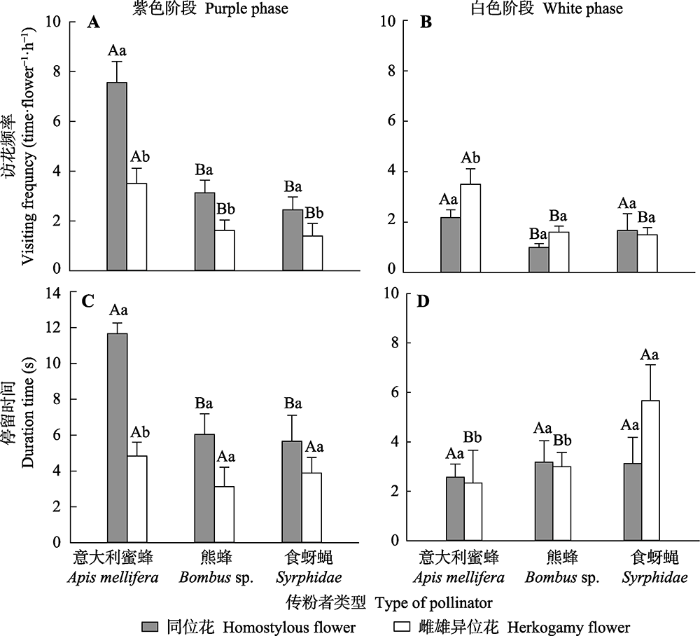

黑果枸杞不同花型花主要传粉者在花寿命早期(紫色)和后期(白色)的访花频率及停留时间(平均值±标准误)。不同大写字母表示同种花型不同传粉者间的差异, 不同小写字母表示同一传粉者不同花型间的差异显著(p < 0.05)。
Fig. 6
Visiting frequency of main pollinators at early flowering phase (purple) and late flowering phase (white) of Lycium ruthenicum of two flower morphs (mean ± SE). Different uppercase letters indicate significant difference between different pollinators of the same morph, and different lowercase letters indicate significant difference between different flower morphs of same pollinator (p < 0.05).
2.5 传粉效率、坐果率及结籽率
在花寿命早期和后期同位花的花粉移出率、花粉落置数及花粉传递效率均比异位花高(图7A-7C); 并且同位和异位花在花寿命早期和后期的花粉移除率(Wald χ2紫色 = 21.805, p < 0.001; Wald χ2白色 = 23.087, p < 0.001)、柱头花粉落置数(Wald χ2紫色 = 3.599, p = 0.050; Wald χ2白色 = 20.910, p < 0.001)及花粉传递效率(Wald χ2紫色 = 10.379, p = 0.01; Wald χ2白色 = 32.555, p < 0.001)间均存在显著差异。同位花的自然坐果率(69.27% ± 5.99%)及结籽率(72.75% ± 5.27%)均比异位花的自然坐果率(51.13% ± 2.87%)及结籽率(55.22% ± 4.56%)高, 并且二者的坐果率和结籽率存在显著差异(Wald χ2坐果率 = 76.248, p < 0.001; Wald χ2结籽率 = 6.480, p = 0.01, 图7D)。
图7
图7

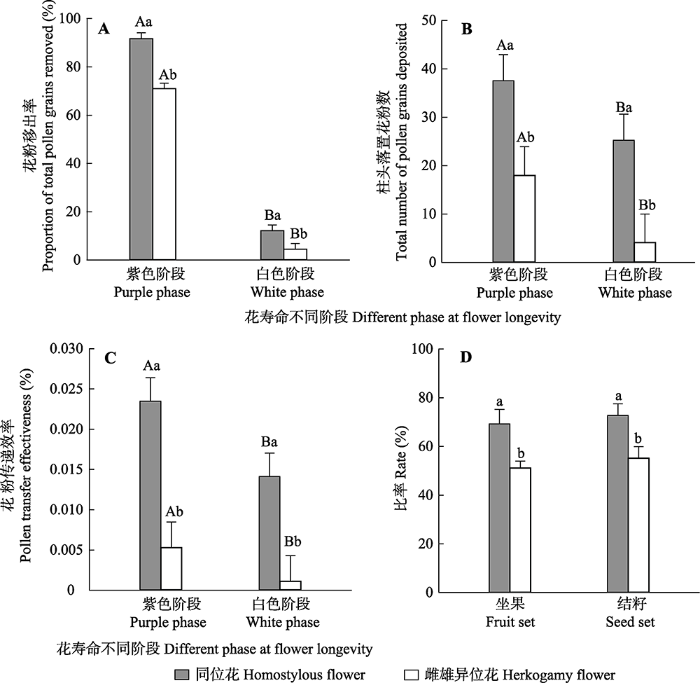

黑果枸杞不同花型花在花寿命早期(紫色)和晚期(白色)花粉移出率(A)、柱头落置花粉数(B)、花粉传递效率(C)、自然坐果率和结籽率(D)(平均值±标准误)。A-C不同大写字母表示同种花型不同阶段间的差异显著, 不同小写字母表示不同花型间差异显著(p < 0.05)。
Fig. 7
Proportion of total pollen grains removed (A), deposited pollen grains (B), pollen transfer efficiency (C) and fruit and seed set rate (D) in the two flower morphs of Lycium ruthenicum at early flowering phase (purple) and late flowering phase (white)(mean ± SE). Different uppercase letters indicate significant difference between different phases of the same morph, and different lowercase letters indicate significant difference between different flower morph at the same phase (p < 0.05).
3 讨论
3.1 花部综合征的差异
被子植物的花作为植物演化的基本单位在结构上具有多样化的适应机制, 并通过花大小、颜色、花气味、雌雄蕊空间位置及花粉活力和柱头可授性、花寿命不同阶段的动态变化等多样化的花部特征来保障繁殖成功(Ashman et al., 2004; 张大勇, 2004; He et al., 2005; Abdusalam et al., 2021)。动物传粉植物常常通过改变开花式样及花药和柱头的接近距离等花部特征来保障繁殖和母本适合度(Webb & Lloyd, 1986; Barrett et al., 2000; Cheptou, 2012); 其中柱头和花药的结构、位置和时间上的分离及变化程度一直被认为是应对恶劣气候条件及避免自交和雌雄性器官功能干扰而演化的花部机制, 它们会直接影响植物繁殖成功率(Brummell et al., 1999; Barret, 2003; Oliveira et al., 2022); 如草地老鹳草(Geranium pratense)通过雌雄蕊空间距离及雌雄异熟特征来避免雌雄功能干扰(Abdusalam et al., 2021)。在本研究中, 黑果枸杞在花寿命内雌雄蕊空间位置较稳定, 同位花的雌蕊和雄蕊长度无显著差异, 而异位花有较大的雌雄蕊空间距离(表1); 两种类型花柱头可授性和花粉活力均具有较高的同步性, 属于半同熟类型。同位花雌雄蕊功能在空间和时间上的重叠会促进传粉者活动导致的花内传粉及自交(Charlesworth & Charlesworth, 1979; 张大勇, 2004), 该类群同位花表现出适应缺乏传粉者的早春荒漠极端环境下保障自花传粉的花部特征; 而异位花表现出通过雌雄蕊的空间隔离来减小雌雄功能干扰、避免花内花粉传递及促进异花传粉的花部特征。两种类型花的雌雄蕊在空间上的隔离程度是导致二者在花结构上分化的主要因素。
花寿命具有很强的可塑性, 环境的变化往往会改变花寿命的长短(Clark & Husband, 2007; 张志强和李庆军, 2009; Torres-Díaz et al., 2011), 延长花寿命是植物在传粉者稀少的情况下确保传粉成功的一个重要策略(Primack, 1985; Ashman & Schoen, 1994; Ishii & Sakai, 2002), 例如姜科植物毛姜花原变种(Hedychium villosum var. villosum)在传粉者稀少和不稳定的高山环境中通过较长的花寿命提高传粉成功率和坐果率以及花粉输出率来提高雌雄适合度(高江云等, 2009), 短穗柽柳(Tamarix laxa)通过延长开花时间吸引更多有效的传粉者, 减少在南疆早春极端环境导致的花粉限制(艾沙江·阿不都沙拉木和古丽扎尔·阿不都克力木, 2018)。本研究中, 异位花单花寿命比同位花长, 这可能是促进具有异花传粉花部特征的异位花, 在传粉者或授粉限制的极端环境下, 通过延长花寿命得到更多的访问机会来减少繁殖损失, 并且实现繁殖成功(Webb & Lloyd, 1986; Cheptou, 2012)。两种类型花表现出的花部特征均与其他种群研究结果一致, 总之, 该物种两种类型花在雌雄蕊空间位置、花报酬及花寿命上的差异是二者为了保障繁殖成功演化出的花部综合征。
3.2 传粉生物学特性及雄性繁殖特点
传粉是被子植物授精的必经阶段, 昆虫与植物进化过程中形成了相互共生的体系(Barrett, 2010; Ivey & Carr, 2011), 虫媒传粉的开花植物通过花部综合征与传粉昆虫间形成的“以报酬换服务”的关系维持传粉者规律性的访问关系并完成雌雄繁殖过程。丰富的花报酬、鲜艳的花颜色及花气味能向传粉者提供信号, 并促进传粉者的访问频率和传粉过程(Nuttman et al., 2006; Ida & Kudo, 2010), 能影响传粉昆虫在花上的活动、传粉及雄性繁殖率(Sun et al., 2005; Wiemer et al., 2011)。花报酬及花信号(颜色及气味)及其动态变化是影响花粉移出和落置过程的关键因素。在本研究中, 两种类型花早期(紫色)产生的花蜜量比后期(白色)多, 同位花在花寿命早期和后期产生的花蜜量均比异位花产生的花蜜多(图4); 传粉者活动与花报酬间存在相互促进作用, 因此该物种在花报酬较丰富的紫色阶段有较高的访花频率及较长的停留时间, 且花报酬较丰富的同位花的访花频率及停留时间均比异位花高。在虫媒传粉的开花植物中, 花色素和花分泌的特殊气味能够引起传粉者的视觉、识别和行为反应, 是重要的蜜导信号(黄双全和郭友好, 2000; 张大勇, 2004); 该物种两种花型花在花寿命内花色由鲜艳的紫色逐步褪色为褐色(图2H), 这导致在褪色阶段两种类型花的访花频率和停留时间均减少(图6)。在花寿命早期和后期内两种花型均分泌4类芳香类化合物(表2), 且异位花芳香类物质的分泌量均比同位花高, 异位花在白色阶段分泌更多的芳香物质来吸引昆虫。传粉者的觅食行为能够影响花粉移出和落置到柱头的水平, 在花药和花柱头等高的同位花内传粉者活动能将其自花花粉落置到柱头上, 引起辅助自花授粉, 因此该类型柱头有较高的花粉落置数(图7B)。同位花通过丰富的花报酬及花气味吸引更多的昆虫, 获得高的访花频率、花粉移出率、柱头落置花粉数及花粉传递效率, 因此该类型有较高的坐果率及结籽率(图7D)。探出式柱头可以通过提高柱头与传粉者身体的接触机会促进花粉的有效传递(Campbell et al., 1996; Nishihiro et al., 2000), 而该物种异位花在传粉者限制的早春极端环境下, 低的花报酬和低的访花频率, 导致其较低的花粉落置和传粉效率, 因此该类型坐果率和结籽率较低(图7D)。总之, 该物种两种类型花花部特征以及花报酬的差异影响了二者的雄性及雌性繁殖率。
3.3 花部特征与传粉生物特性对繁殖的影响
动物传粉植物的花部综合征不仅影响其对传粉者的吸引、花粉散布、传粉者访花行为、自花和异花授粉程度以及雌雄适合度, 而且进一步影响植物的繁殖成功率(Barrett & Harder, 1996; 张大勇, 2004)。在新疆南部沙尘暴环境早春开花的黑果枸杞所面临的环境具有低温、沙尘暴、多风等气候特点可能导致该物种在传粉过程的传粉者及授粉限制(Arroyo et al., 2013; Abdusalam & Tan, 2014); 本研究中, 异位花的访花频率及坐果率比同位花低, 这与二者的传粉者及授粉限制以及自交亲和性相关, 其中属于自交不亲和类型的异位花(自交亲和性系数为0.136)的授粉限制比部分自交不亲和类型的同位花(自交亲和性系数为0.351)更明显(未发表数据); 因此, 部分自交不亲和的同位花通过表现出自花传粉的花部综合征来减少早春沙尘暴极端环境下的授粉压力。
该物种同位花在花部结构、花报酬及花信号上表现出吸引传粉者、促进花内花粉传递的花部特征, 反而异位花在花部结构、花报酬及花信号上表现出促进花间传粉传递的花部特征。同位花虽然吸引更多的传粉者, 但雌雄蕊空间位置及雌雄半同熟的花设计促进其雌雄功能干扰程度和花内花粉传递过程, 并通过较高的传粉效率及自交亲和性来提高坐果率; 而异位花较大的雌雄蕊空间距离、较低的花报酬和访花频率限制其花粉移出和落置及较低的自交亲和性, 导致其传粉效率和自然坐果率降低。因此, 异位花通过延长花寿命来应对沙尘暴环境中传粉者不足导致的花粉限制。在南疆早春沙尘暴等极端环境中, 同位花具有适应于自花传粉的花部综合征来降低面临的花粉限制及保障繁殖成功, 而以演化出异花传粉为主的花部特征的异位花则面临更高的花粉限制。因此, 在缺乏传粉者或外源花粉时同位花通过花内花粉传递、较短的花寿命及较高的自交亲和性来保障繁殖成功。我们在另外的研究中发现其异位花的异交率(83.33%)较同位花(70.31%)高, 异位花在不同种群的基因组(2.64 ± 0.012 Gb)比同位花(2.62 ± 0.006 Gb)大(未发表结果), 说明其异位花的遗传多样性比自交亲和性高的同位花高, 但二者后代适合度的差异未知。因此, 新疆南部沙尘暴环境对该物种两种类型花繁殖成功的影响还有待进一步在不同种群间研究。总之, 该物种通过自交亲和性较高的同位花保障繁殖和保持种群稳定性, 而通过异位花保障种群更新和扩大的繁殖格局, 这些特点是该物种为了繁殖保障及后代的连续性的繁殖对策。
致谢
感谢云南省植物繁殖适应与进化生态学重点实验室开放课题(KC10114119)资助。
