Chin J Plan Ecolo ›› 2017, Vol. 41 ›› Issue (5): 519-528.doi: 10.17521/cjpe.2016.0381

;

• Research Articles • Previous Articles     Next Articles

Water sources of Populus euphratica and Tamarix ramosissima in Ejina Delta, the lower reaches of the Heihe River, China

Ya-Fei LI1,2,3,4, Jing-Jie YU1,5,*, Kai LU1,4, Ping WANG1, Yi-Chi ZHANG1, Chao-Yang DU1

  1. 1Key Laboratory of Water Cycle & Related Land Surface Processes, Institute of Geographic Sciences and Natural Resources Research, Chinese Academy of Sciences, Beijing 100101, China;

    2University of Chinese Academy of Sciences, Beijing 100049, China

    3Sino-Danish Center for Education andResearch, Beijing 100190, China
    4 Sino-Danish College, University of Chinese Academy of Sciences, Beijing 100190, China

    5College of Resources and Environment, University of Chinese Academy of Sciences, Beijing 100190, China
  • Online:2017-06-22 Published:2017-05-10
  • Contact: Jing-Jie YU
  • About author:

    KANG Jing-yao(1991-), E-mail: kangjingyao_nj@163.com

Abstract:

Aims We aim to evaluate the water sources of typical riparian arbor species (Populus euphratica) and shrub species (Tamarix ramosissima), and analyze the spatial and temporal dynamics of plant water source in Ejina Delta, the lower reaches of the Heihe River, China.Methods Eight sampling sites were selected in the riparian zones along the East River and West River in Ejina. The plant xylem water, soil moisture, rainwater, stream water and groundwater were taken and pretreated during the growing season in 2015-2016, and the stable oxygen isotope ratio (δ18O) for each water sample was measured. The δ18O of plant xylem water and soil moisture were compared to estimate the dominant depth of root water uptake, and the linear-mixed model called “IsoSource” were applied to determine plant water sources and quantify their proportions.Important findings This study indicated that the main recharge sources for P. euphratica and T. ramosissima were stream water and groundwater. The contributions of rain water to them was negligible due to the limited amount and the shallow infiltration depth of local rainfall. As affected by groundwater level fluctuation, soil physical properties, as well as lateral and vertical recharge of stream water on soil moisture, the dominant depth of root water uptake spatially varied. However, the relative contributions of stream water or groundwater to plant water sources did not change significantly across space. Populus euphratica used more stream water (68%), while T. ramosissima used more groundwater (65%). Plant water sources were sensitive to environmental flow controls. The contributions of stream water to the water sources of the two species went up to 84% and 48% for P. euphratica and T. ramosissima respectively during the discharge period, but dropped to 63% and 30% during the non-discharge period. On the other hand, the contributions of groundwater decreased to 16% and 52% during the discharge period, but increased to 37% and 70% during non-discharge period. It is noteworthy that the high similarity of δ18O between stream water and groundwater due to extensive water exchange in the riparian zone made increase the uncertain in quantifying plant water sources.

Key words: arid region, riparian zone, plant water source, stable oxygen isotope, environmental flow controls

Fig. 1

Location of the study area and sampling sites. The coordinates of the sites in the figure are as follows: Dongfeng Town Bridge (100.55° E, 41.25° N), E1 (100.33° E, 41.04° N), E2 (100.69° E, 41.44° N), E3 (101.07° E, 41.88° N), E4 (101.12° E, 41.99° N), E5 (101.14° E, 42.00° N), E6 (101.09° E, 42.01° N), GW1 (100.79° E, 41.92° N), GW2 (100.91° E, 41.94° N), Langxinshan Hydrological Station (100.32° E, 41.04° N), W1 (100.44° E, 41.44° N), W2 (100.67° E, 41.92° N)."

Table 1

Soil textural profiles at each sampling site"

样点
Sampling site
土壤埋深
Soil depth (cm)
土壤质地
Soil texture
样点
Sampling site
土壤埋深
Soil depth (cm)
土壤质地
Soil texture
E1 0-80 砂土 Sand E5 0-50 粉壤土 Silt loam
80-85 壤质砂土 Loamy sand 50-100 壤土 Loam
85-90 砂土 Sand 100-130 粉壤土 Silt loam
90-100 细砂 Fine sand E6 0-30 壤质细砂 Loamy fine sand
100-130 砂土 Sand 30-90 细砂 Fine sand
130-170 细砂 Fine sand 90-120 砂黏土 Sandy clay
170-185 砂壤土 Sandy loam 120-160 细砂 Fine sand
185-200 壤质砂土 Loamy sand 160-180 壤土 Loam
E2 0-20 壤质细砂 Loamy fine sand 180-210 砂土 Sand
20-50 细砂壤土 Fine sandy loam 210-230 黏土 Clay
50-70 极细砂壤土 Very fine sandy loam 230-320 细砂 Fine sand
70-100 粉壤土 Silt loam W1 0-90 壤质砂土 Loamy sand
100-200 砂土 Sand 90-110 壤质粗砂 Loamy coarse sand
E3 0-30 粉壤土 Silt loam 110-130 砂土 Sand
30-80 细砂壤土 Very fine sandy loam 130-160 粗砂 Coarse sand
80-105 细砂 Fine sand 160-210 砂土 Sand
105-220 粗砂 Coarse sand W2 0-60 壤质砂土 Loamy sand
E4 0-15 细砂壤土 Fine sandy loam 60-80 砂土 Sand
15-60 砂壤土 Very fine sandy loam 80-120 粉壤土 Silt loam
60-120 粉壤土 Silt loam 120-200 砂土 Sand
120-170 砂土 Sand 200-210 粗砂 Coarse sand
210-230 壤质砂土 Loamy sand
230-260 粗砂 Coarse sand

Fig. 2

The stable oxygen isotope ratio (δ18O) of rainwater (A) and stream water (B) in the study area. VSMOW, Vienna standard mean ocean water."

Table 2

The stable oxygen isotope ratio (δ18O) of groundwater in the study area"

日期
Date
样点
Spot
δ18O (‰) 日期
Date
样点
Spot
δ18O (‰)
2016-5-31 E1 -7.39 2015-8-16 E5 -6.29
2015-7-22 E2 -5.94 2015-9-13 E5 -6.69
2015-8-16 E2 -5.39 2015-8-16 E6 -5.56
2015-9-13 E2 -5.60 2016-5-29 E6 -7.02
2016-5-31 E2 -6.94 2015-7-21 E6 -6.47
2015-8-16 E3 -5.73 2015-9-13 E6 -6.12
2015-9-13 E3 -5.57 2016-5-31 GW1 -9.84
2016-5-30 E3 -6.96 2016-5-31 GW2 -9.84
2015-7-19 E4 -5.77 2016-5-31 W1 -5.95
2015-8-16 E4 -7.35 2016-5-31 W2 -7.08
2015-9-13 E4 -5.22

Fig. 3

The stable oxygen isotope ratio (δ18O) of soil moisture and plant xylem water at each sampling site. The coordinates of each sampling site are the same as in Fig.1. “VSMOW” is the abbreviation of “Vienna standard mean ocean water”."

Table 3

Dominant soil depths of root water uptake by Populus euphratica and Tamarix ramosissima at each sampling site"

样点1)
Sampling site1)
植物主要吸水层位 Dominant soil depths of root water uptake 2) (cm)
2015-7 2015-8 2015-9 2016-6 2016-7 2016-8 2016-9
E1 \ \ \ 130-210 80-200 80-260 120-180
E2 100-175 100-200 70-200 80-140 90-140 80-180 80-130
E3 30-220 80-220 50-195 5-170 25-180 \
E4 60-220 60-270 60-220 100-200 110-210 110-230 100-260
E5 50-185 50-185 50-185 90-170 75-240 90-230 110-240
E6 80-330 115-330 115-330 140-370 140-280 115-255 100-235
W1 \ \ \ 100-230 110-230 90-? \
W2 \ \ \ 150-260 100-185 170-210 100-150

Fig. 4

Dynamics of 10-min-gridded precipitation and soil water content at Site E5 (101.14° E, 42.00° N) (2015-9-9-2015-9-10)."

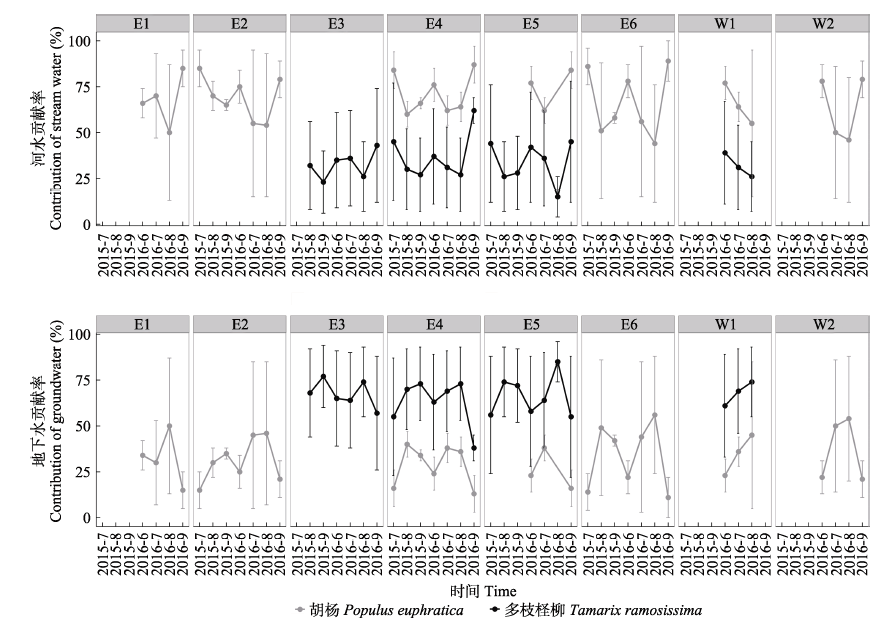

Fig. 5

Proportional contribution (%) of stream water and groundwater to the water sources of Populus euphratica and Tamarix ramosissima respectively. Bars indicate the minimum and maximum values. The coordinates of each sampling site are the same as in Fig.1."

[1] Chen XL, Chen YN, Chen YP (2014). Relationship among water use of different plants in Heihe River riparian forests.Chinese Journal of Eco-Agriculture, 22, 972-979. (in Chinese with English abstract)[陈小丽, 陈亚宁, 陈亚鹏 (2014). 黑河下游荒漠河岸林植物水分利用关系研究. 中国生态农业学报, 22, 972-979.]
[2] Chu JM (2007). Studies on Selective Utilization of Water by Plants in Aridland Region. PhD dissertation, Chinese Academy of Forestry, Beijing. (in Chinese with English abstract)[褚建民 (2007). 干旱区植物的水分选择性利用研究. 博士学位论文, 中国林业科学研究院, 北京.]
[3] Du CY (2016). Simulation for Coupled Water-Vapor-Air-Heat Flow Transport in Vadose Zone and Estimation of Groundwater Evaporation in Arid RegionA Case Study of Ejina Delta. PhD dissertation, University of Chinese Academy of Sciences, Beijing. (in Chinese with English abstract)[杜朝阳 (2016). 干旱区包气带水-汽-气热耦合模拟及潜水蒸发估算——以额济纳三角洲为例. 博士学位论文, 中国科学院大学, 北京.]
[4] Ehleringer J, Dawson T (1992). Water uptake by plants: Perspectives from stable isotope composition.Plant, Cell & Environment, 15, 1073-1082.
[5] Ehleringer JR, Phillips SL, Schuster WS, Sandquist DR (1991). Differential utilization of summer rains by desert plants.Oecologia, 88, 430-434.
[6] Gong GL, Chen H, Duan DY (2011). Comparison of the methods using stable hydrogen and oxygen isotope to distinguish the water source ofNitraria tangutorum. Acta Ecologica Sinica, 31, 7533-7541. (in Chinese with English abstract)[巩国丽, 陈辉, 段德玉 (2011). 利用稳定氢氧同位素定量区分白刺水分来源的方法比较. 生态学报, 31, 7533-7541.]
[7] Huxman TE, Smith MD, Fay PA, Knapp AK, Shaw MR, Loik ME, Smith SD, Tissue DT, Zak JC, Weltzin JF (2004). Convergence across biomes to a common rain-use efficiency.Nature, 429, 651-654.
[8] Li X, Cheng G, Liu S, Xiao Q, Ma M, Jin R, Che T, Liu Q, Wang W, Qi Y (2013). Heihe watershed allied telemetry experimental research (HiWATER): Scientific objectives and experimental design.Bulletin of the American Meteorological Society, 94, 1145-1160.
[9] Liu SM, Xu ZW, Wang WZ, Jia ZZ, Zhu MJ, Bai J, Wang JM (2011). A comparison of eddy-covariance and large aperture scintillometer measurements with respect to the energy balance closure problem.Hydrology and Earth System Sciences, 15, 1291-1306.
[10] Meng XJ, Wen XF, Zhang XY, Han JJ, Sun XM, Li XB (2012). Potential impacts of organic contaminant onδ18O and δD in leaf and xylem water detected by isotope ratio infrared spectroscopy. Chinese Journal of Eco-Agriculture, 20, 1359-1365. (in Chinese with English abstract)[孟宪菁, 温学发, 张心昱, 韩佳音, 孙晓敏, 李晓波 (2012). 有机物对红外光谱技术测定植物叶片和茎秆水δ18O和δD的影响. 中国生态农业学报, 20, 1359-1365.]
[11] Peng XM, Xiao SC, Cheng GD, Xiao HL, Tian QY, Zhang QB (2015). Human activity impacts on the stem radial growth ofPopulus euphratica riparian forests in China’s Ejina Oasis, using tree-ring analysis. Trees, 31, 379-392.
[12] Qian YP, Lin XU, Qin DJ, Wang L (2005). Study on groundwater of the Ejina Basin at the lower reaches of the Heihe River using isotopes.Arid Land Geography, 28, 574-580. (in Chinese with English abstract)[钱云平, 林学钰, 秦大军, 王玲 (2005). 应用同位素研究黑河下游额济纳盆地地下水. 干旱区地理, 2005, 28, 574-580.]
[13] Schachtschneider K, February EC (2010). The relationship between fog, floods, groundwater and tree growth along the lower Kuiseb River in the hyperarid Namib.Journal of Arid Environments, 74, 1632-1637.
[14] Si JH, Feng Q, Xi HY, Yu TF, Li W (2013). Determination of critical period and requirement of ecological water demanded in the Ejina Oasis in lower reaches of the Heihe River.Journal of Desert Research, 33, 560-567. (in Chinese with English abstract)[司建华, 冯起, 席海洋, 鱼腾飞, 李炜 (2013). 黑河下游额济纳绿洲生态需水关键期及需水量. 中国沙漠, 33, 560-567.]
[15] Snyder KA, Williams DG (2000). Water sources used by riparian trees varies among stream types on the San Pedro River, Arizona.Agricultural and Forest Meteorology, 105, 227-240.
[16] Wang P, Yu J, Zhang Y, Fu G, Min L, Ao F (2011). Impacts of environmental flow controls on the water table and groundwater chemistry in the Ejina Delta, northwestern China.Environmental Earth Sciences, 64, 15-24.
[17] Wang P, Yu J, Zhang Y, Liu C (2013). Groundwater recharge and hydrogeochemical evolution in the Ejina Basin, northwest China.Journal of Hydrology, 476, 72-86.
[18] Wei Y, Fang J, Zhao X, Zhang R, Li S (2012). Isotopic model estimate of relative contribution of potential water pools to water uptake ofPinus sylvestris var. mongolica in Horqin Sandy Land. Journal of Resources and Ecology, 3, 308-315.
[19] Xing X, Chen H, Zhu JJ, Chen TT (2014). Water sources of five dominant desert plant species in Nuomuhong area of Qaidam Basin.Acta Ecologica Sinica, 34, 6277-6286. (in Chinese with English abstract)[邢星, 陈辉, 朱建佳, 陈同同 (2014). 柴达木盆地诺木洪地区5种优势荒漠物水分来源. 生态学报, 34, 6277-6286.]
[20] Yin L, Zhao LJ, Ruan YF, Xiao HL, Cheng GD, Zhou MX, Wang F, Li CZ (2012). Study of the replenishment sources of typical ecosystems water and dominant plant water in the lower reaches of the Heihe, China.Journal of Glaciology & Geocryology, 34, 1478-1486. (in Chinese with English abstract)[尹力, 赵良菊, 阮云峰, 肖洪浪, 程国栋, 周茅先, 王芳, 李彩芝 (2012). 黑河下游典型生态系统水分补给源及优势植物水分来源研究. 冰川冻土, 34, 1478-1486.]
[21] Zhang YC, Yu JJ, Qiao MY, Yang HW (2011). Effects of eco-water transfer on changes of vegetation in the lower Heihe River Basin.Journal of Hydraulic Engineering, 42, 757-765. (in Chinese with English abstract)[张一驰, 于静洁, 乔茂云, 杨宏伟 (2011). 黑河流域生态输水对下游植被变化影响研究. 水利学报, 42, 757-765.]
[22] Zhang YH, Wu YQ (2007). Variation ofδ18O in water in Heihe River Basin. Advances in Water Science, 18, 864-870. (in Chinese with English abstract)[张应华, 仵彦卿 (2007). 黑河流域不同水体中δ18O的变化. 水科学进展, 18, 864-870.]
[23] Zhao LJ, Xiao HL, Cheng GD, Song YX, Zhao L, Li CZ, Yang Q (2008). A preliminary study of water sources of riparian plants in the lower reaches of the Heihe Basin. Acta Geoscientica Sinica, 29, 709-718. (in Chinese with English abstract)[赵良菊, 肖洪浪, 程国栋, 宋耀选, 赵亮, 李彩芝, 杨秋 (2008). 黑河下游河岸林植物水分来源初步研究. 地球学报, 29, 709-718.]
[24] Zhu JT, Yu JJ, Wang P, Wang ZY (2011). Quantitative classification and analysis of relationships between plant communities and their groundwater environment in the Ejina Desert Oasis of China.Chinese Journal of Plant Ecology, 35, 480-489. (in Chinese with English abstract)[朱军涛, 于静洁, 王平, 王志勇 (2011). 额济纳荒漠绿洲植物群落的数量分类及其与地下水环境的关系分析. 植物生态学报, 35, 480-489.]
