Responses and adaptation of xylem hydraulic conductivity to salt stress in Populus euphratica

doi:10.17521/cjpe.2015.0009

Abstract

Abstract: Aims

Soil salinity is a major limiting factor for plant establishment, development and productivity in arid environment. This study was conducted to determine the responses and adaptation of xylem hydraulic conductivity to salt stress in Populus euphratica in order to understand the mechanisms of stress resistance and restoration strategy of this species.

<i>Methods</i>

The responses and adaptation of hydraulic conductivity to different levels of salt stress (NaCl concentrations of 0, 0.05, 0.15 and 0.30 mol·L^-1) were investigated in P. euphratica seedlings. The testing plants were subjected to salt stresses for three months, and the stomatal conductance of leaves, hydraulic conductivity and vulnerability to cavitation of roots and stem xylem, anatomical structure of xylem vessels and root morphology and distribution were measured. The resulting data were analyzed to determine the relationships of salt stress with root uptake, hydraulic conductivity of xylem and foliar transpiration by using ANOVA, LSD and Pearson correlations.

<i>Important findings</i>

The roots of P. euphratica seedlings were more responsive to salt stress than stem and leaves. Root length and root tips were significantly inhibited by the salt stresses imposed. Under the salt stress, root hydraulic conductivity was significantly reduced and root xylem was more vulnerable to cavitation. The responses of stem xylem conductivity to salt stresses varied with the level of salt stress. Under a mild (0.05 mol·L^-1 NaCl) and moderate (0.15 mol·L^-1 NaCl) salt stress, Populus euphratica seedlings adjusted hydraulic conductivity in stem xylem by increasing the wall thickness of conduit and between conduits as well the wall mechanical strength to maintain norm growth. Under a severe salt stress (0.30 mol·L^-1 NaCl), hydraulic conductivity and safety and efficacy of water transportation of stem xylem in P. euphratica seedlings significantly decreased accompanied by reduced stomatal conductance of leaves, which eventually inhibited the plant growth.

Key words: xylem, hydraulic conductivity, vessel, root morphology, stomatal conductance

ZHOU Hong-Hua,LI Wei-Hong. Responses and adaptation of xylem hydraulic conductivity to salt stress in Populus euphratica[J]. Chin J Plan Ecolo, 2015, 39(1): 81-91.

Add to citation manager EndNote|Ris|BibTeX

URL: https://www.plant-ecology.com/EN/10.17521/cjpe.2015.0009

https://www.plant-ecology.com/EN/Y2015/V39/I1/81

Figures/Tables 7

Fig. 1 Diurnal changes in stomatal conductance (Gs) of leaves in Populus euphratica seedlings under different concentration salt stresses (mean ± SE). Different letters indicate significant differences (p < 0.05, LSD). Control, 0 mol·L-1 NaCl; S1, 0.05 mol·L-1 NaCl; S2, 0.15 mol·L-1 NaCl; S3, 0.30 mol·L-1 NaCl.

Fig. 2 Hydraulic conductivity of roots and stems of Populus euphratica seedlings under different concentration salt stresses (mean ± SE). Ks0, initial hydraulic conductivity per unit volume. Ksmax, maximum hydraulic conductivity. Different letters indicate significant differences (p < 0.05, LSD). Control, 0 mol·L-1 NaCl; S1, 0.05 mol·L-1 NaCl; S2, 0.15 mol·L-1 NaCl; S3, 0.30 mol·L-1 NaCl.

Fig. 3 Curves of xylem vulnerability to cavitation in roots and stems of Populus euphratica seedlings under different concentration salt stresses (mean ± SE). PLC, percentage loss of hydraulic conductivity. Control, 0 mol·L-1 NaCl; S1, 0.05 mol·L-1 NaCl; S2, 0.15 mol·L-1 NaCl; S3, 0.30 mol·L-1 NaCl.

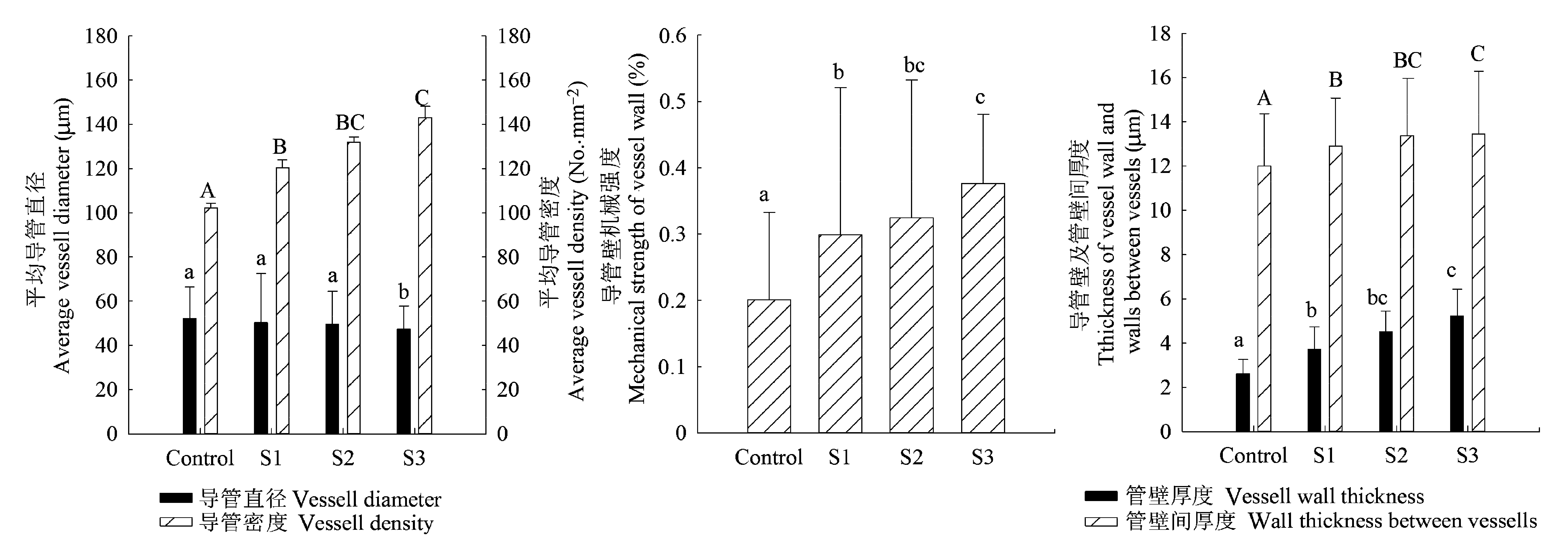

Fig. 4 Anatomical structure of stem xylem vessels in Populus euphratica seedlings under different concentration salt stresses (mean ± SE). Control, 0 mol·L-1 NaCl; S1, 0.05 mol·L-1 NaCl; S2, 0.15 mol·L-1 NaCl; S3, 0.30 mol·L-1 NaCl.

Fig. 5 Root morphology and distribution of Populus euphratica seedlings under different concentration salt stresses. A, control level (0 mol·L-1 NaCl solution); B, S1 level (0.05 mol·L-1 NaCl solution); C, S2 level (0.15 mol·L-1 NaCl solution); D, S3 level (0.30 mol·L-1 NaCl solution).

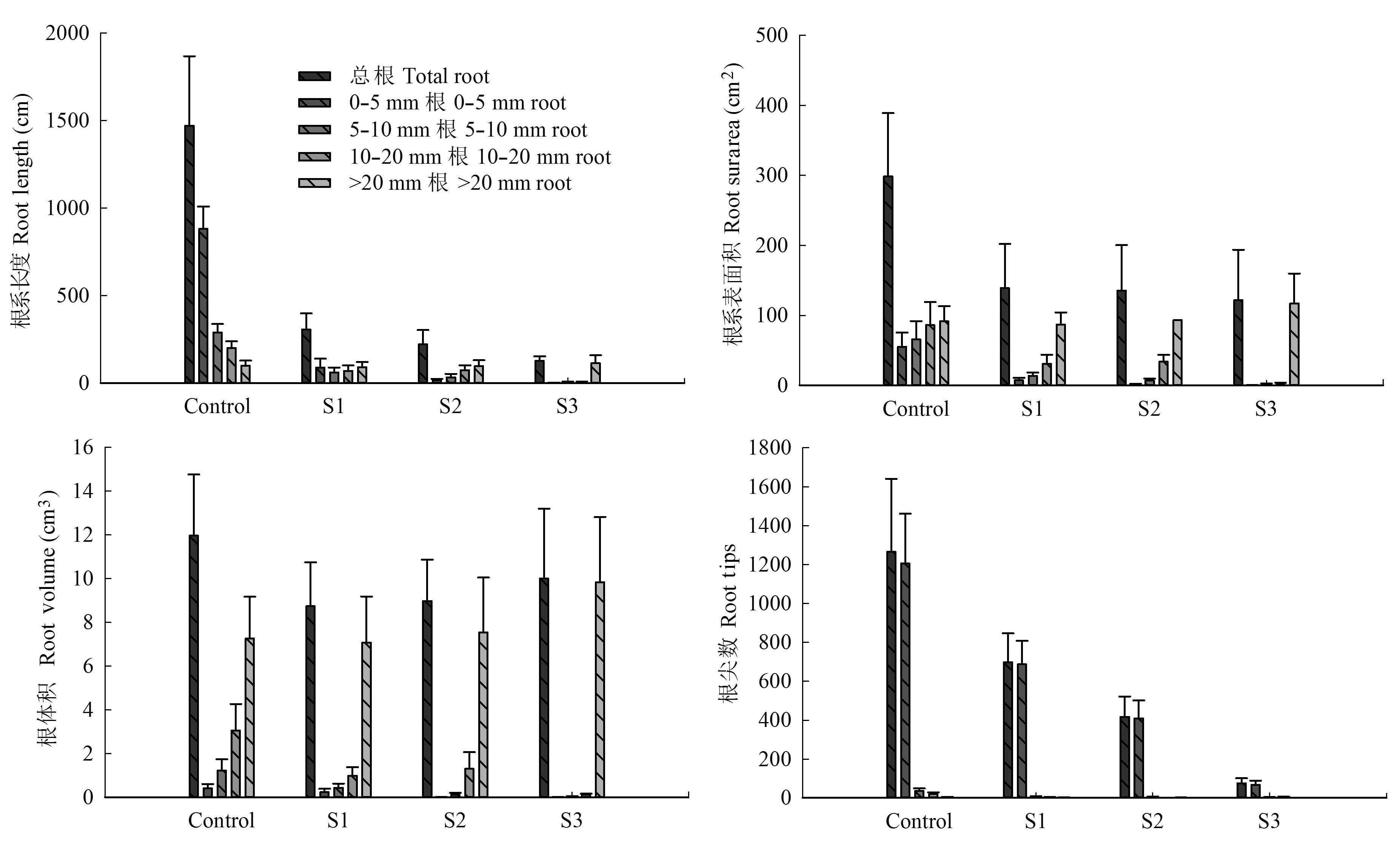

Fig. 6 Root characteristics of Populus euphratica seedlings under different concentration salt stresses (mean ± SE). Control, 0 mol·L-1 NaCl; S1, 0.05 mol·L-1 NaCl; S2, 0.15 mol·L-1 NaCl; S3, 0.30 mol·L-1 NaCl.

Table 1 Pearson correlation between root characteristics and hydraulic conductivity

	总根长 Total root length	总根尖数 No. of total root tips	0-5 mm根长 0-5 mm root length	0-5 mm根尖数 No. of 0-5 mm root tips	5-10 mm根长 5-10 mm root length	5-10 mm根尖数 No. of 5-10 mm root tips
最大比导率 k_smax	0.567^*	0.841^*	0.631^*	0.854^*	0.604^*	0.538^*
初始比导率 k_s0	0.494	0.800^*	0.565^*	0.815^*	0.538^*	0.460

References 50

1	Apostol KG, Zwiazek JJ (2003). Hypoxia affects root sodium and chloride concentrations and alters water conductance in salt-treated jack pine (Pinus banksiana) seedlings. Trees, 17, 251-257.
2	Apostol KG, Zwiazek JJ, MacKinnon MD (2004). Naphthenic acids affect plant water conductance but do not alter shoot Na+ and Cl- concentrations in jack pine (Pinus banksiana) seedlings. Plant and Soil, 263, 183-190.
3	Aroca R, Porcel R, Ruiz-Lozano JM (2012). Regulation of root water uptake under abiotic stress conditions. Journal of Experimental Botany, 63, 43-47.
4	Bass P (1982). New Perspectives in Wood Anatomy. The Hague, Nijhoff, Junk. 252-263.
5	Boursiac Y, Boudet J, Postaire O, Luu DT, Tournaire-Roux C, Maurel C (2008). Stimulus-induced downregulation of root water transport involves reactive oxygen species- activated cell signalling and plasma membrane intrinsic protein internalization. The Plant Journal, 56, 207-218.
6	Calvo-Polanco M, Sánchez-Romera B, Aroca R (2014). Mild salt stress conditions induce different responses in root hydraulic conductivity of Phaseolus vulgaris over-time. PLoS ONE, 9, e90631.
7	Cowan IR (1982). Regulation of water use in relation to carbon gain in higher plants. In: Lange OL, Nobel PS, Osmond CB, Ziegler H eds. Physiological Plant Ecology Ⅱ Water Relations and Carbon Assimilation. Springer-Verlag, Berlin. 589-613.
8	Cramer GR, Läuchli A, Epstein E (1986). Effects of NaCl and CaCl2 on ion activities in complex nutrient solutions and root growth of cotton. Plant Physiology, 81, 792-797.
9	Evelin H, Kapoor R, Giri B (2009). Arbuscular mycorrhizal fungi in alleviation of salt stress: A review. Annals of Botany, 104, 1263-1280.
10	Gao GL, Jiang WB, Yu KJ, Wang LJ (2003). A review of studies on effect of salt stress on photosynthesis in fruit crops. Journal of Fruit Science, 20, 493-497.
	(in Chinese with English abstract) [高光林, 姜卫兵, 俞开锦, 汪良驹 (2003). 盐胁迫对果树光合生理的影响. 果树学报, 20, 493-497.]
11	García-Sánchez F, Carvajal M, Sanchez-Pina MA, Martínea V, Cerdá A (2000). Salinity resistance of Citrus seedlings in relation to hydraulic conductance, plasma membrane ATPase and anatomy of the roots. Journal of Plant Physiology, 156, 724-730.
12	Guo L, Wang ZY, Lin H, Cui WE, Chen J, Liu M, Chen ZL, Qu LJ, Gu H (2006). Expression and functional analysis of the rice plasma-membrane intrinsic protein gene family. Cell Research, 16, 277-286.
13	Guo SR (2003). Soilless Culture. China Agriculture Press, Beijing. 20-35, 114.
	(in Chinese) [郭世荣 (2003). 无土栽培学. 中国农业出版社, 北京. 20-35, 114.]
14	Haeussler S, Kabzems R (2006). Aspen plant community response to organic matter removal and soil compaction. Canadian Journal of Forest Research, 35, 2030-2044.
15	Horie T, Kneko T, Sugimoto G, Sasano S, Panda SK, Shibasaka M, Katsuhara M (2011). Mechanisms of water transport mediated by PIP aquaporins and their regulation via phosphorylation events under salinity stress in barley roots. Plant and Cell Physiology, 52, 663-675.
16	Kang SZ, Zhang JH (2004). Controlled alternate partial root-zone irrigation: Its physiological consequences and impact on water use efficiency. Journal of Experimental Botany, 55, 2437-2446.
17	López-Berenguer C, García-Viguera C, Carvajal M (2006). Are root hydraulic conductivity responses to salinity controlled by aquaporins in broccoli plants?Plant and Soil, 279, 13-23.
18	López-Pérez L, Fernández-García N, Olmos E, Carvajal M (2007). The phi thickening in roots of broccoli plants: An acclimation mechanism to salinity?International Journal of Plant Sciences, 168, 1141-1149.
19	Lu YF, Feng LT (1999). Effects of NaCl stress on water and photosynthetic gas exchange of spinach leaves. Plant Physiology Communications, 35, 290-292.
	(in Chinese) [卢元芳, 冯立田 (1999). NaCl 胁迫对菠菜叶片中水分和光合气体交换的影响. 植物生理学通讯, 35, 290-292.]
20	Mansour MMF (1997). Cell permeability under salt stress. In: Jaiwal PK, Singh RP, Gulati A eds. Strategies for Improving Salt Tolerance in Higher Plants. Science Publishers, Boca Raton, USA. 87-110.
21	Mariani L, Chang SX, Kabzems R (2006). Effects of tree harvesting, forest floor removal, and compaction on soil microbial biomass, microbial respiration, and N availability in a boreal aspen forest in British Columbia. Soil Biology & Biochemistry, 38, 1734-1774.
22	Martínez-Ballesta MC, Aparicio F, Pallás V, Martínez V, Carvajal M (2003). Influence of saline stress on root hydraulic conductance and PIP expression in Arabidopsis. Journal of Plant Physiology, 160, 689-697.
23	Martínez-Ballesta MDC, Bastías E, Zhu CF, Schäffner AR, González-Moro B, González-Murua C, Carvajal M (2008). Boric acid and salinity effects on maize roots. Response of aquaporins ZmPIP1 and Zm PIP2, and plasm a membrane H+-ATPase, in relation to water and nutrient uptake. Physiologia Plantarum, 132, 479-490.
24	Martínez-Ballesta MDC, Martínez V, Carvajal M (2000). Regulation of water channel activity in whole roots and in protoplasts from roots of melon plants grown under saline conditions. Australian Journal of Plant Physiology, 27, 685-691.
25	Maurel C (1997). Aquaporins and water permeability of plant membranes. Annual Review of Plant Physiology and Plant Molecular Biology, 48, 399-429.
26	Munns R (2002). Comparative physiology of salt and water stress. Plant, Cell & Environment, 25, 239-250.
27	Munns R, Tester M (2008). Mechanisms of salinity tolerance. Annual Review of Plant Biology, 59, 651-681.
28	Muries B, Faize M, Carvajal M, Martínez-Ballesta C (2011). Identification and differential induction of the expression of aquaporins by salinity in broccoli plants. Molecular Biosystems, 7, 1322-1335.
29	Nastou A, Chartaoulakis K, Atherios I (1999). Leaf anatomical responses, ion content and CO2 assimilation in three lemon cultivars under NaCl salinity. Advances in Horticultural Science, 13, 61-67.
30	Navarro A, Bañon S, Olmos E, Sánchez-Blanco MJ (2007). Effects of sodium chloride on water potential components, hydraulic conductivity, gas exchange and leaf ultrastructure of Arbutus unedo plants. Plant Science, 172, 473-480.
31	Postaire O, Tournaire-Roux C, Grondin A, Boursiac Y, Morillon R, Schaffner AR, Maurel C (2010). A PIPı aquaporin contributes to hydrostatic pressure-induced water transport in both the root and rosette ofArabidopsis. Plant Physiology, 152, 1418-1430.
32	Qi CH, Chen M, Song J, Wang BS (2009). Increase in aquaporin activity is involved in leaf succulence of the euhalophyte Suaeda salsa, under salinity. Plant Science, 176, 200-205.
33	Rahnama A, James RA, Pustini K, Munns R (2010). Stomatal conductance as a screen for osmotic stress tolerance in durum wheat growing in saline soil. Functional Plant Biology, 37, 225-263.
34	Redfield E, Croser C, Zwiazek JJ, MacKinnon MD, Qualizza C (2003). Responses of red-osier dogwood to oil sands tailings treated with gypsum or alum. Journal of Environment Quality, 32, 1008-1014.
35	Ruiz-Lozano JM, Porcel R, Azcón C, Aroca R (2012). Regulation by arbuscular mycorrhizae of the integrated physiological response to salinity in plants: New challenges in physiological and molecular studies. Journal of Experimental Botany, 63, 4033-4044.
36	Schachtman DP, Goodger JQD (2008). Chemical root to shoot signaling under drought. Trends in Plants Science, 13, 281-287.
37	Silva C, Martínez V, Carvajal M (2008). Osmotic versus toxic effects of NaCl on pepper plants. Biologia Plantarum, 52, 72-79.
38	Sobrado MA (2001). Hydraulic properties of a mangrove Avicennia germinans as affected by NaCl. Biologia Plantrum, 44, 435-438.
39	Sutka M, Li G, Boudet J, Boursiac Y, Doumas P, Maurel C (2011). Natural variation of root hydraulics in Arabidopsis grown in normal and salt-stressed conditions. Plant Physiology, 155, 1264-1276.
40	TrifiIò P, Lo Gullo MA, Nardini A, Pernice F, Salleo S (2007). Rootstock effects on xylem conduit dimensions and vulnerability to cavitation of Olea europaea L. Trees, 21, 549-556.
41	Wang SP, Guo SR, Li J, Hu XH, Jiao YS (2006). Effects of salt stress on the growth of root system and water use efficiency of cucumber seedlings. Chinese Journal of Applied Ecology, 17, 1883-1888.
	(in Chinese with English abstract) [王素平, 郭世荣, 李璟, 胡晓辉, 焦彦生 (2006). 盐胁迫对黄瓜幼苗根系生长和水分利用的影响. 应用生态学报, 17, 1883-1888. ]
42	Xue YF, Liu ZP (2008). Effects of NaCl and Na2CO3 stresses on photosynthesis and parameters of chlorophyll fluorescence in Helianthus tuberosus seedlings. Journal of Plant Ecology (Chinese Version), 32, 161-167(in Chinese with English abstract) .
	[薛延丰, 刘兆普 (2008). 不同浓度NaCl和Na2CO3处理对菊芋幼苗光合及叶绿素荧光的影响. 植物生态学报, 32, 161-167.]
43	Yang QL, Zhang FC, Liu XG, Yang ZL (2009). Effects of drip irrigation mode and NaCl concentration on growth and hydraulic conductance of apple seedlings. Chinese Journal of Plant Ecology, 33, 824-832.
	(in Chinese with English abstract) [杨启良, 张富仓, 刘小刚, 杨振宇 (2009). 不同滴灌方式和NaCl处理对苹果幼树生长和水分传导的影响. 植物生态学报, 33, 824-832.]
44	Yao LM, Li FS, Shen XJ, Tong L (2011). Research progress on soil factors affecting root hydraulic conductance. Journal of Northwest A&F University(Natural Science Edition), 39, 65-72.
	(in Chinese with English abstract) [姚立民, 李伏生, 申孝军, 佟玲 (2011). 土壤因素对根系导水率影响的研究进展. 西北农林科技大学学报(自然科学版), 39, 65-72.]
45	Yi LP, Wang ZW (2011). Root system characters in growth and distribution among three littoral halophytes. Acta Ecologica Sinica, 31, 1195-1202.
	(in Chinese with English abstract) [弋良朋, 王祖伟 (2011). 盐胁迫下3种滨海盐生植物的根系生长和分布. 生态学报, 31, 1195-1202.]
46	Yuan L, Karim A, Zhang LQ (2005). Effects of NaCl stress on active oxygen metabolism and membrane stability in Pistacia vera seedlings. Acta Phytoecologica Sinica, 29, 985-991.
	(in Chinese with English abstract) [袁琳, 克热木·伊力, 张利权 (2005). NaCl胁迫对阿月浑子实生苗活性氧代谢与细胞膜稳定性的影响. 植物生态学报, 29, 985-991.]
47	Zhang JH, Zhang XP, Liang JS (2003). Exudation rate and hydraulic conductivity of maize roots are enhanced by soil drying and abscisic acid treatment. New Phytologist, 131, 329-336.
48	Zhang XC, Zhuang BC, Li ZC (2002). Advances in study of salt-stress tolerance in plants. Journal of Maize Sciences, 10(1), 50-56.
	(in Chinese with English abstract) [张新春, 庄炳昌, 李自超 (2002). 植物耐盐性研究进展. 玉米科学, 10(1), 50-56.]
49	Zhou HH, Chen YN, Li WH, Ayup M (2013). Xylem hydraulic conductivity and embolism in riparian plants and their responses to drought stress in desert of Northwest China. Ecohydrology, 6, 984-993.
50	Zimmermann MH (1983). Xylem Structure and the Ascent of Sap. Springer, Berlin.
