Fine root morphology, anatomy and tissue nitrogen and carbon contents of the first five orders in four tropical hardwood species in Hainan Island, China

doi:10.3724/SP.J.1258.2011.00955

Abstract

Abstract:

Aims Knowledge of fine root morphology, anatomy and tissue chemistry is critical to understanding root functions (e.g., longevity), but little is known about these root traits and their relationships in woody plants. We investigated root morphology, anatomy and tissue chemistry of the first five orders in four tropical tree species (Altingia obovata, Cryptocarya chinensis, Elaeocarpus sylvestris and Endospermum chinense) in Jianfengling of Hainan Island, China. Our objectives were to: 1) examine how root morphology (diameter, length, specific root length (SRL) and tissue density), anatomy (cortex thickness and stele to root diameter ratio (V/R)) and tissue chemistry (N and C content) changes with root branch orders and 2) reveal the relationships between anatomical structures and root diameter or tissue N or C concentrations in the four tree species.
Methods Tree roots of the four species were sampled in August 2009, and root samples were sorted into different orders. Root morphology of the first five orders was analyzed by the Win-RHIZO system. Root tissue C and N concentrations in roots of each order were analyzed by the Vario MACRO Element Analyzer. Individual roots in each order were made into paraffin slices stained by safranin and fast green to observe root anatomical structures and to calculate cortical thickness, stele diameter and V/R.
Important findings From the first to fifth order, root diameter, length and tissue density as well as stele diameter and V/R increased, and SRL and cortex thickness decreased in all species. The first two or three orders exhibited primary development with an intact cortex and lower V/R ratio, whereas higher order roots showed secondary development with no cortex and higher V/R ratio. Correlation analysis indicated that cortex thickness can explain 97% of the variations of root diameter and 70% of stele diameter. In all species, tissue N concentration decreased and tissue C concentrations increased with ascending root order. Moreover, C/N ratio in roots was mainly affected by tissue N rather than tissue C concentrations. These results suggest that there are systematic differences in root morphology, anatomy and tissue chemistry among different orders, and root morphology and tissue chemistry are closely linked to root anatomical traits such as cortex thickness in these tropical tree species.

Key words: anatomy, morphology, root orders, tissue chemistry, tropical tree species

XU Yang, GU Jia-Cun, DONG Xue-Yun, LIU Ying, WANG Zheng-Quan. Fine root morphology, anatomy and tissue nitrogen and carbon contents of the first five orders in four tropical hardwood species in Hainan Island, China[J]. Chin J Plant Ecol, 2011, 35(9): 955-964.

Add to citation manager EndNote|Ris|BibTeX

URL: https://www.plant-ecology.com/EN/10.3724/SP.J.1258.2011.00955

https://www.plant-ecology.com/EN/Y2011/V35/I9/955

Figures/Tables 6

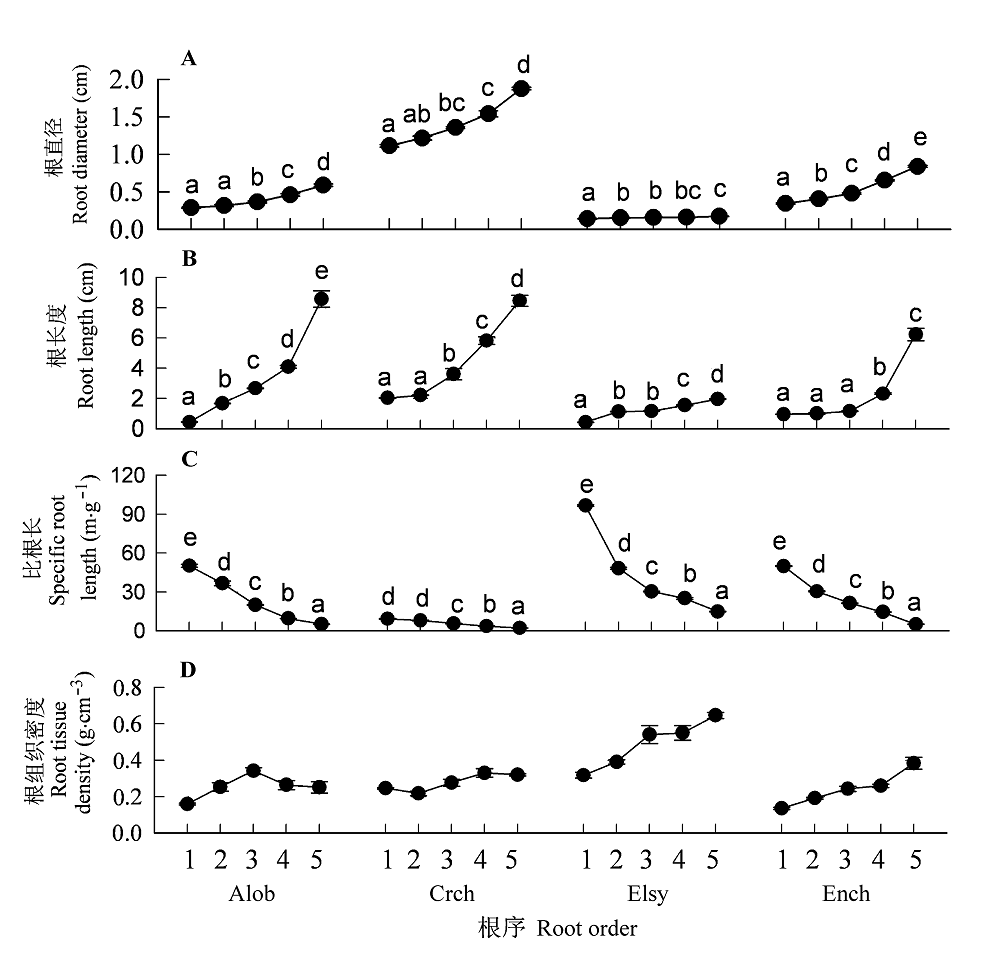

Fig. 1 Fine root morphology of Altingia obovata (Alob), Cryptocarya chinensis (Crch), Elaeocarpus sylvestris (Elsy) and Endospermum chinense (Ench) among the first five orders in tropical forest of Jianfengling, Hainan Island, China (mean ± SE). Within each panel, mean values sharing different letters indicate significant difference with species at p < 0.05 level.

Fig. 2 Fine root anatomy of Altingia obovata (Alob), Cryptocarya chinensis (Crch), Elaeocarpus sylvestris (Elsy) and Endospermum chinense (Ench) among the first five orders in tropical forest of Jianfengling, Hainan Island, China (mean ± SE). Within each panel, mean values sharing different letters indicate significant difference with species at p < 0.05 level.

Fig. 3 Correlations of fine root diameter with stele diameter (A) and cortex thickness (B) in Altingia obovata (Alob), Cryptocarya chinensis (Crch), Elaeocarpus sylvestris (Elsy) and Endospermum chinense (Ench) in tropical forest of Jianfengling, Hainan Island, China.

Fig. 4 Fine root nitrogen and carbon contents of Altingia obovata (Alob), Cryptocarya chinensis (Crch), Elaeocarpus sylvestris (Elsy) and Endospermum chinense (Ench) among the first five orders in tropical forest of Jianfengling, Hainan Island, China (mean ± SE). Within each panel, mean values sharing different letters indicate significant difference with species at p < 0.05 level.

Fig. 5 Correlations of root tissue N (A) and root tissue C (B) with stele to root diameter ratio in Altingia obovata (Alob), Cryptocarya chinensis (Crch), Elaeocarpus sylvestris (Elsy) and Endospermum chinense (Ench) in tropical forest of Jianfengling, Hainan Island, China.

Fig. 6 Correlations of C/N ratio of fine roots with root tissue N (A) and root tissue C (B) in Altingia obovata (Alob), Cryptocarya chinensis (Crch), Elaeocarpus sylvestris (Elsy) and Endospermum chinense (Ench) in tropical forest of Jianfengling, Hainan Island, China.

References 36

[1]	Burton AJ, Pregitzer KS, Ruess RW, Hendrick RL, Allen MF (2002). Root respiration in North American forests: effects of nitrogen concentration and temperature across biomes. Oecologia, 131, 559-568. URL PMID
[2]	Chang WJ ( 常文静), Guo DL ( 郭大立) (2008). Variation in root diameter among 45 common tree species in temperate, subtropical and tropical forests in China. Journal of Plant Ecology (Chinese Version) (植物生态学报), 32, 1248-1257. (in Chinese with English abstract)
[3]	Eissenstat DM, Yanai RD (1997). The ecology of root lifespan. Advances in Ecological Research, 27, 2-59.
[4]	Esau K (1977). Anatomy of Seed Plants 2nd edn. Wiley, New York. 215-255.
[5]	Espeleta JF, West JB, Donovan LA (2009). Tree species fine-root demography parallels habitat specialization across a sandhill soil resource gradient. Ecology, 90, 1773-1787. URL PMID
[6]	Fitter AH (1985). Functional significance of root morphology and root system architecture. In: Fitter AH, Atinson D, Read DJ, Usher MB eds. Ecological Interaction in Soil Plant Microbes and Animals. Special Bulletin Number 4 of British Ecological Society. Blackwell Scientific Publication, Oxford. 87-106.
[7]	Fitter AH (1996). Characteristics and functions of root systems. In: Waisel Y, Eshel E, Kafkafi U eds. Plant Roots: the Hidden Half 2nd edn. Dekker, New York. 1-20.
[8]	Guo DL, Mitchell RJ, Hendricks JJ (2004). Fine root branch orders respond differentially to carbon source-sink manipulations in a longleaf pine forest. Oecologia, 140, 450-457. DOI URL PMID
[9]	Guo DL, Mitchell RJ, Withington JM, Fan PP, Hendricks JJ (2008a). Endogenous and exogenous controls of root life span, mortality and nitrogen flux in a longleaf pine forest: root branch order predominates. Journal of Ecology, 96, 737-745. DOI URL
[10]	Guo DL, Xia MX, Wei X, Chang WJ, Liu Y, Wang ZQ (2008b). Anatomical traits associated with absorption and mycorrhizal colonization are linked to root branch order in twenty-three Chinese temperate tree species. New Phytologist, 180, 673-683. DOI URL
[11]	Hishi T (2007). Heterogeneity of individual roots within the fine root architecture: causal links between physiological and ecosystem functions. Journal of Forest Research, 12, 126-133. DOI URL
[12]	Jia SX ( 贾淑霞), Zhao YL ( 赵妍丽), Ding GQ ( 丁国泉), Sun Y ( 孙玥), Xu Y ( 许旸), Wang ZQ ( 王政权) (2010). Relationship among fine-root morphology, anatomy, tissue nitrogen concentration and respiration in different branch root orders in Larix gmelinii and Fraxinus mandshurica. Chinese Bulletin of Botany (植物学报), 45, 174-181. (in Chinese with English abstract)
[13]	Lambers H, Chapin FS III, Pons TL (1998). Plant Physiological Ecology. Springer, New York.
[14]	Li A, Guo DL, Wang ZQ, Liu HY (2010). Nitrogen and phosphorus allocation in leaves, twigs, and fine roots across 49 temperate, subtropical and tropical tree species: a hierarchical pattern. Functional Ecology, 24, 224-232.
[15]	Liu J ( 刘佳), Xiang WH ( 项文化), Xu X ( 徐晓), Chen R ( 陈瑞), Tian DL ( 田大伦), Peng CH ( 彭长辉), Fang X ( 方晰) (2010). Analysis of architecture and functions of fine roots of five subtropical tree species in Huitong, Hunan Province, China. Chinese Journal of Plant Ecology (植物生态学报), 34, 938-945. (in Chinese with English abstract)
[16]	Liu JL ( 刘金梁), Mei L ( 梅莉), Gu JC ( 谷加存), Quan XK ( 全先奎), Wang ZQ ( 王政权) (2009). Effects of nitrogen fertilization on fine root biomass and morphology of Fraxinus mandshurica and Larix gmelinii: a study with in-growth core approach. Chinese Journal of Ecology (生态学杂志), 28, 1-6. (in Chinese with English abstract)
[17]	Liu Y ( 刘颖), Gu JC ( 谷加存), Wei X ( 卫星), Xu Y ( 许旸), Wang ZQ ( 王政权) (2010). Variations of morphology, anatomical structure and nitrogen content among first-order roots in different positions along branch orders in tree species. Chinese Journal of Plant Ecology (植物生态学报), 34, 1336-1343. (in Chinese with English abstract)
[18]	Lux A, Luxova M, Abe J, Morita S (2004). Root cortex: structural and functional variability and responses to environmental stress. Root Research, 13, 117-131.
[19]	Mei L ( 梅莉), Wang ZQ ( 王政权), Cheng YH ( 程云环), Guo DL ( 郭大立) (2004). A review: factors influencing fine root longevity in forest ecosystems. Acta Phytoecologica Sinica (植物生态学报), 28, 704-710. (in Chinese with English abstract)
[20]	Norby RJ, Jackson RB (2000). Root dynamics and global change: seeking an ecosystem perspective. New Phytologist, 147, 3-12.
[21]	Pregitzer KS, DeForest JL, Burton AJ, Allen MF, Ruess RW, Hendrick RL (2002). Fine root architecture of nine north American trees. Ecological Monographs, 72, 293-309. DOI URL
[22]	Pregitzer KS, Kubiske ME, Yu CK, Hendrick RL (1997). Relationships among root branch order, carbon, and nitrogen in four temperate species. Oecologia, 111, 302-308. URL PMID
[23]	Pregitzer KS, Laskowski MJ, Burton AJ, Lessard VC, Zak DR (1998). Variation in sugar maple root respiration with root diameter and soil depth. Tree Physiology, 18, 665-670. URL PMID
[24]	Qiu J ( 邱俊), Gu JC ( 谷加存), Jiang HY ( 姜红英), Wang ZQ ( 王政权) (2010). Factors influencing fine root longevity of plantation-grown Pinus sylvestris var. mongolica. Chinese Journal of Plant Ecology (植物生态学报), 34, 1066-1074. (in Chinese with English abstract) DOI URL
[25]	Reich PB, Walters MB, Ellsworth DS (1997). From tropics to tundra: global convergence in plant functioning. Proceedings of the National Academy of Sciences of the United States of America, 94, 13730-13734. URL PMID
[26]	Valenzuela-Estrada LR, Vera-Caraballo V, Ruth LE, Eissenstat DM (2008). Root anatomy, morphology, and longevity among root orders in Vaccinium corymbosum(Ericaceae). American Journal of Botany, 95, 1506-1514. URL PMID
[27]	Vogt KA, Grier CC, Gower ST, Sprugel DG, Vogt DJ (1986). Overestimation of net root production: A real or imaginary problem? Ecology, 67, 577-579.
[28]	Wang XR ( 王向荣), Wang ZQ ( 王政权), Han YZ ( 韩有志), Gu JC ( 谷加存), Guo DL ( 郭大立), Mei L ( 梅莉) (2005). Variations of fine root diameter with root order in Manchurian ash and Dahurian larch plantations. Acta Phytoecologica Sinica (植物生态学报), 29, 871-877. (in Chinese with English abstract)
[29]	Wang ZQ ( 王政权), Guo DL ( 郭大立) (2008). Root ecology. Journal of Plant Ecology (Chinese Version) (植物生态学报), 32, 1213-1216. (in Chinese)
[30]	Wang ZQ, Guo DL, Wang XR, Gu JC, Mei L (2006). Fine root architecture, morphology, and biomass of different branch orders of two Chinese temperate tree species. Plant and Soil, 288, 155-171.
[31]	Wells CE, Glenn DM, Eissenstat DM (2002). Changes in the risk of fine-root mortality with age: a case study in peach,Prunus persica(Rosaceae). American Journal of Botany, 89, 79-87. URL PMID
[32]	Wei X ( 卫星), Liu Y ( 刘颖), Chen HB ( 陈海波) (2008). Anatomical and functional heterogeneity among different root orders of Phellodendron amurense. Journal of Plant Ecology (Chinese Version) (植物生态学报), 32, 1238-1247. (in Chinese with English abstract)
[33]	Withington JM, Reich PB, Oleksyn J, Eissenstat DM (2006). Comparisons of structure and life span in roots and leaves among temperate trees. Ecological Monographs, 76, 381-398.
[34]	Wu C ( 吴楚), Fan ZQ ( 范志强), Wang ZQ ( 王政权) (2004). Effect of phosphorus stress on chlorophyll biosynthesis, photosynthesis and biomass partitioning pattern of Fraxinus mandchurica seedlings. Chinese Journal of Applied Ecology (应用生态学报), 15, 935-940. (in Chinese with English abstract) URL PMID
[35]	Xia MX, Guo DL, Pregitzer KS (2010). Ephemeral root modules in Fraxinus mandshurica. New Phytologist, 188, 1065-1074.
[36]	Yu SQ ( 于水强), Wang ZQ ( 王政权), Shi JW ( 史建伟), Quan XK ( 全先奎), Mei L ( 梅莉), Sun Y ( 孙玥), Jia SX ( 贾淑霞), Yu LZ ( 于立忠) (2007). Estimating fine root longevity of Fraxinus mandshurica and Larix gmelinii using mini-rhizotrons. Journal of Plant Ecology (Chinese Version) (植物生态学报), 31, 102-109. (in Chinese with English abstract)
