Physiological mechanism of shading stress on photosynthetic efficiency in summer maize (Zea mays)

doi:10.3773/j.issn.1005-264x.2010.12.010

Abstract

Abstract:

Aims Our objective was to investigate the light-adaptive physiological mechanism of maize on shading stress after anthesis, in order to provide theory behind evidence for high and stable yield in summer maize.
Methods In a field experiment, we used common corn (Zea mays) (TY2) to analyze changes of photosynthetic performance, chlorophyll fluorescence parameters, xanthin circle and light partition in maize in the process of shading and recovery stages under (a) shading 55% (+S) 1-20 d after pollination and (b) natural illumination in field condition (-S).
Important findings The net photosynthetic rate and light saturation point of ear leaves declined rapidly, because the chlorophyll content, soluble protein content and PEPCase and RuBPCase activities in ear leaves markedly decreased after shading. Under shading, the maximal photochemical efficiency (F_v/F_m) and the actual photochemical efficiency (Φ_PSII) significantly declined, but non-photochemistry quenching (NPQ) increased. The Φ_PSII of ear leaves increased in early recovery, which indicated that the sudden exposure to natural light significantly enhanced the photosynthetic electron transport rate, according with its photosynthetic rate and carbon metabolism activity of maize ear leaves. After shading, the size of xanthin circle sink in ear leaves was not significantly different, but the de-epoxidation state of xanthin circle (A + Z)/(V + A + Z) increased after shading. The distribution of light energy in photochemical reaction was lower, but the antenna dissipation rate of light energy increased significantly. On the other hand, the dissipation of excess light energy in the recovery process mainly depended on non-photochemical reactions. The PSII primary photochemistry activity of maize decreased under after shading and recovery in early stage, which limited electron supply of photosynthetic carbon metabolism and re- strained the photosynthesis. Then the energy dissipation mostly relied on the xanthin circle increased. The light protective mechanism of maize leaves improved in adaptation to the natural light, and photosynthetic capability gradually recovered after illumination switch.

Key words: deficit light stress, maize, photosynthetic efficiency, physiological trait

JIA Shi-Fang, LI Cong-Feng, DONG Shu-Ting, ZHANG Ji-Wang. Physiological mechanism of shading stress on photosynthetic efficiency in summer maize (Zea mays)[J]. Chin J Plant Ecol, 2010, 34(12): 1439-1447.

Add to citation manager EndNote|Ris|BibTeX

URL: https://www.plant-ecology.com/EN/10.3773/j.issn.1005-264x.2010.12.010

https://www.plant-ecology.com/EN/Y2010/V34/I12/1439

Figures/Tables 8

Table 1 Effect of shading treatments on microclimate of maize population (2005)

处理 Treatment	光辐射强度 Light intensity (μmol·m^-2·s^-1)	群体内不同位置温度 Temperature of different position within population(℃)			CO₂浓度 CO₂ concentration (μmol·mol^-1)
处理 Treatment	光辐射强度 Light intensity (μmol·m^-2·s^-1)	地温 Ground	穗位 Ear	冠层 Canopy	CO₂浓度 CO₂ concentration (μmol·mol^-1)
-S	1 135.9^a	24.9^a	28.9^a	29.4^a	336.2^a
+S	573.3^b	23.1^b	28.5^a	29.0^a	337.3^a

Table 2 Effect of shading treatments on light quality of incident light (2005)

处理 Treatment	波长 Weave length (nm)
处理 Treatment	460	510	560	610	660	680	710	760	810	870	950	1 100
S/CK	42.56^a	36.33^a	37.28^a	38.96^a	36.25^a	37.42^a	38.73^a	39.93^a	39.69^a	40.05^a	38.88^a	42.65^a
Y/CK	41.14^a	35.38^a	36.26^a	36.41^a	36.73^a	36.43^a	39.16^a	41.27^a	40.78^a	40.42^a	42.22^b	46.35^b

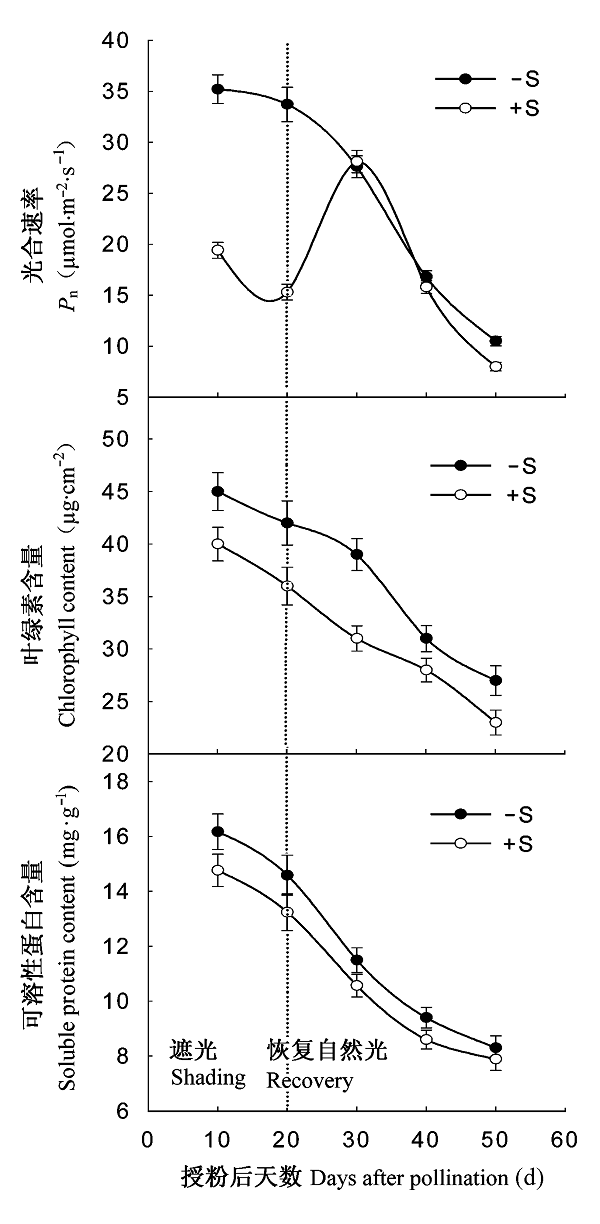

Fig. 1 Effect of shading on photosynthetic rate (Pn), chlorophyll content and soluble protein content in maize ear leaf. +S, -S, see Table 1.

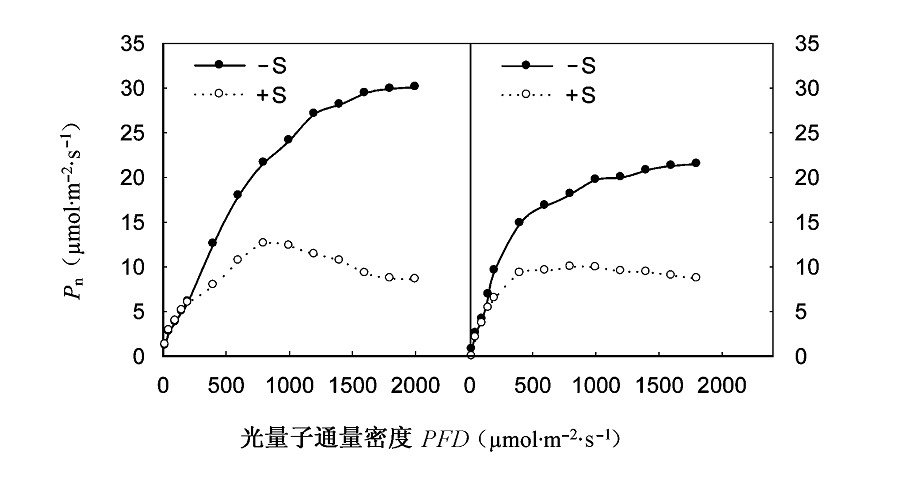

Fig.2 The photosynthetic rate-photon flux density (Pn-PFD) curve of maize ear leaf on 10th day after shading treatment (left) and the day of shading finish (right). +S, -S, see Table 1.

Fig. 3 Effect of shading on photosynthesis key enzyme ribulosebisphosphate carboxylase (RuBPCase) and phosphoenolpyruvate carboxylase (PEPCase) in maize ear leaf. +S, -S, see Table 1.

Fig. 4 Effect of shading on chlorophyll fluorescence parameters in maize ear leaf. Fv/Fm, maximal photochemistry efficiency; NPQ, non-photochemical quenching; ФPSII, actual photochemistry efficiency. +S, -S, see Table 1.

Fig. 5 Effect of shading on the xanthophyll cycle in maize ear leaf. A, antheraxanthin; V, violaxanthin; Z, zeaxanthin. +S, -S, see Table 1.

Fig. 6 Effect of shading on PSII photochemistry (P), antenna heat dissipation (D) and excess energy (Ex) in maize ear leaf. +S, -S, see Table 1.

References 35

[1]	Asada K (1999). The water-water cycle in chloroplasts: scavenging of active oxygens and dissipation of excess photos. Annual Review of Plant Physiology and Plant Molecular Biology, 50, 601-639. DOI URL PMID
[2]	Buykey KO, Wells R (1991). Response of soybean photosynthesis and chloroplast membrane function to canopy development and mutual shading. Plant Physiology, 97, 245-252. DOI URL PMID
[3]	Chow WS (1991). Photosynthetic acclimation of Tradescantia albiflora to growth irradiance: lack of adjustment of light-harvesting components and its consequences. Physiologia Plantarum, 81, 75-182.
[4]	Christy AL, Porter CA (1982). Canopy photosynthesis and yield in soybean. In: Govindjee ed. Photosynthesis, Development, Carbon Metabolism and Plant Productivity II. Academic Press, New York. 499-511.
[5]	Demmig-Adams B (1996). Xanthophyll cycle and light stress in nature: uniform response to excess direct sunlight among higher plant species. Planta, 198, 460-470.
[6]	Demmig-Adams B, Adams III WW, Barker DH, Logan BA, Bowling DR, Verhoeven AS (1996). Using Chlorophyll fluorescence to assess the fraction of absorbed light allocated to thermal dissipation of excess excitation. Physiologia Plantarum, 98, 253-264.
[7]	Dong ST (董树亭) (2006). Eco-Physiology and Formation of Yield and Quality in Maize (玉米生态生理与产量品质形成). Higher Education Press, Beijing. (in Chinese)
[8]	Early EB, McIlrath WO, Seif RD, Hageman RH (1967). Effects of shade applied at different stages of plant development on corn (Zea mays L.) production. Crop Science, 7, 151-156.
[9]	Gilmore AM (1997). Mechanistic aspects of xanthophyll cycle- dependent photo-protection in higher plant chloroplasts and leaves. Physiologia Plantarum, 99, 197-209.
[10]	Guan YX (关义新), Lin B (林葆), Ling BY (凌碧莹) (2000). Interaction effects of light density and nitrogen on maize leaf pigments, chlorophyll fluorescence and energy transition. Plant Nutrition and Fertilizer Science (植物营养与肥料学报), 6, 152-158. (in Chinese with English abstract)
[11]	Hidema J, Makino A, Mae T, Ojima K (1991). Photosynthetic characteristics of rice leaves aged under different irradiances from full expansion through senescence. Plant Physiology, 97, 1287-1293.
[12]	Hu CH (胡昌浩) (1995). Cultivation Physiology of Maize (玉米栽培生理). China Agriculture Press, Beijing. (in Chinese)
[13]	Jia SF (贾士芳), Dong ST (董树亭), Wang KJ (王空军), Zhang JW (张吉旺), Liu P(刘鹏) (2007). Effects of weak light stress on grain yield and photosynthetic traits of maize. Chinese Journal of Applied Ecology (应用生态学报), 18, 2456-2461. (in Chinese with English abstract) URL PMID
[14]	Kiniry JR, Ritchie JT (1985). Shade-sensitive interval of kernel number of maize. Agronomy Journal, 77, 711-715.
[15]	Kobata T, Sugawara M, Takatu S (2000). Shading during the early grain filling period does not affect potential grain dry matter increase in rice. Agronomy Journal, 92, 411-417.
[16]	Li CH (李潮海), Luan LM (栾丽敏), Wang Q (王群), Li N (李宁), Zhao YL (赵亚丽) (2005a). Effect of seedling shading and light intensity transfer on photosynthetic efficiency of different maize (Zea mays L.) hybrids. Acta Agronomica Sinica (作物学报), 31, 381-385. (in Chinese with English abstract)
[17]	Li CH (李潮海), Luan LM (栾丽敏), Yin F (尹飞), Wang Q (王群), Zhao YL (赵亚丽) (2005b). Effects of light stress at different stages on the growth and yield of different maize genotypes (Zea mays L.). Acta Ecologica Sinica (生态学报), 25, 824-830. (in Chinese with English abstract)
[18]	Lilley RM, Walker DA (1974). An improved spectrophotometric assay for ribulose bisphosphate carboxylase. Biochimica et Biophysica Acta, 358, 226-229. DOI URL PMID
[19]	Liu GS (刘国顺), Zhao XZ (赵献章), Wei FJ (韦凤杰), Wang F (王芳), Wang WJ (汪文杰) (2007). Effects of shading at fast-growing stage and light intensity transfer on photosynthetic efficiency in tobacco (Nicotiana tobacum L.) varieties. Scientia Agricultura Sinica (中国农业科学), 40, 2368-2375. (in Chinese with English abstract)
[20]	Liu X (刘霞), Yin YP (尹燕枰), Jiang CM (姜春明), He MR (贺明荣), Wang ZL (王振林) (2005). Effects of weak light and high temperature stress after anthesis on flag leaf chlorophyll fluorescence and grain fill of wheat. Chinese Journal of Applied Ecology (应用生态学报), 16, 2117- 2121. ( in Chinese with English abstract)
[21]	Mou HR (牟会荣), Jiang D (姜东), Dai TB (戴廷波), Jing Q (荆奇), Cao WX (曹卫星) (2008). Effect of shading on photosynthesis and chlorophyll fluorescence characters in wheat flag leaves. Scientia Agricultura Sinica (中国农业科学), 41, 599-606. (in Chinese with English abstract)
[22]	Powles SB, Björkman O (1983). Photoinhibition of photosynthesis: effect on chlorophyll fluorescence at 77K in intact leaves and in chloroplast membranes of Nerium oleander. Planta, 156, 97-107. DOI URL PMID
[23]	Racker E (1962). Ribulose diphosphate carboxylase from spinach leaves. In: Colowick SP, Kaplan NO eds. Methods in Enzymology Vol. V. Academic Press, New York. 266-270.
[24]	Reed JA, Singletary GW (1989). Roles of carbohydrate supply and phytohomones in maize kernel abortion. Plant Physiology, 91, 986-992. DOI URL PMID
[25]	Reed JA, Singletary GW, Schussler JR (1988). Shading effects on dry matter and nitrogen partitioning, kernel number, and yield of maize. Crop Science, 28, 819-825.
[26]	Roberts DR, Thompson JE, Dumbroff EB, Gepstein S, Mattoo AK (1987). Differential changes in the synthesis and steady-state levels of thylakoid protein during bean leaf senescence. Plant Molecular Biology, 9, 343-354. DOI URL PMID
[27]	Struik PC (1983). The effect of short and long shading, applied during different stages of growth, on the development, productivity and quality of forage maize (Zea mays L.). Netherlands Journal of Agricultural Science, 31, 101-124.
[28]	Terashima I, Wong SC, Osmond CB, Faruhar GD (1988). Characterisation of non-uniform photosynthesis induced by abscisic acid in leaves having different mesophyll anatomies. Plant and Cell Physiology, 29, 385-394.
[29]	Ward DA, Woolhouse HW (1986). Comparative effects of light during growth on the photosynthetic properties of NADP- ME type C₄ grasses from open and shaded habitats. II. Photosynthetic enzyme activities and metabolism. Plant, Cell & Environment, 9, 271-277.
[30]	Zhang JW (张吉旺), Dong ST (董树亭), Wang KJ (王空军) (2006). Effects of shading on the growth, development and grain yield of summer maize. Chinese Journal of Applied Ecology (应用生态学报), 17, 657-662. (in Chinese with English abstract) URL PMID
[31]	Zhao D, Oosterhuis D (1998). Influence of shade on mineral nutrient status of field-grown cotton. Plant Nutrient, 21, 1681-1692.
[32]	Zhao JR (赵久然), Chen GP (陈国平) (1990). Effects of shading treatment at different stages of plant development on grain production of maize and observations of tip kernel abortion, Scientia Agricultura Sinica (中国农业科学), 23(4), 28-34. (in Chinese with English abstract)
[33]	Zhao M (赵明), Ding ZS (丁在松), Ishhill R, Chen L (陈鹂), Zhang X (张旭) (2003). The changes and components of non-photochemical quenching under drought and shade conditions in maize. Acta Agronomica Sinica (作物学报), 29, 59-62. (in Chinese with English abstract)
[34]	Zou Q (邹琦) (1995). Guidance of Plant Experiment Physiology and Biochemistry (植物生理生化实验指导). Higher Education Press, Beijing. 36-39. (in Chinese)
[35]	Zhou ZG (周治国), Meng YL (孟亚利), Shi P (施培) (2001). Effect of shading during seedling period on the structure of cotton stem and leaf and photosynthetic performance of functional leaf. Scientia Agriculture Sinica (中国农业科学), 34, 465-468. (in Chinese with English abstract)
