基于稠密Landsat数据的邛崃山大熊猫栖息地植被变化研究

doi:10.17521/cjpe.2020.0226

植物生态学报 ›› 2021, Vol. 45 ›› Issue (4): 355-369.DOI: 10.17521/cjpe.2020.0226

基于稠密Landsat数据的邛崃山大熊猫栖息地植被变化研究

周明星¹, 李登秋²^,^*(), 邹建军¹

¹浙江农林大学环境与资源学院, 浙江省森林生态系统碳循环与固碳减排重点实验室, 浙江临安 311300
²福建师范大学湿润亚热带山地生态国家重点实验室培育基地, 福建师范大学地理科学学院, 福州 350007

收稿日期:2020-07-08 接受日期:2021-02-04 出版日期:2021-04-20 发布日期:2021-03-27
通讯作者: ORCID: *李登秋: 0000-0002-3971-3222(lidengqiu001@163.com)
作者简介:* lidengqiu001@163.com
基金资助:
国家重点研发计划(2016YFC0503302);国家自然科学基金(41701490)

Vegetation change of giant panda habitats in Qionglai Mountains through dense Landsat Data

ZHOU Ming-Xing¹, LI Deng-Qiu²^,^*(), ZOU Jian-Jun¹

¹School of Environmental and Resource Sciences, Zhejiang A&F University, Key Laboratory of Carbon Cycling in Forest Ecosystem and Carbon Sequestration of Zhejiang Province, Lin’an, Zhejiang 311300, China
²State Key Laboratory for Subtropical Mountain Ecology of the Ministry of Science and Technology and Fujian Province, School of Geographical Sciences, Fujian Normal University, Fuzhou 350007, China

Received:2020-07-08 Accepted:2021-02-04 Online:2021-04-20 Published:2021-03-27
Contact: LI Deng-Qiu
Supported by:
National Key R&D Program of China(2016YFC0503302);National Natural Science Foundation of China(41701490)

1. 附录I 邛崃山大熊猫栖息地植被变化驱动因子具体分区范围.pdf(377KB)

摘要/Abstract

摘要：

深入理解大熊猫栖息地植被变化过程及其驱动力, 是开展大熊猫栖息地保护和管理的重要基础。该研究利用1986- 2018年所有可用的Landsat TM/ETM/OLI影像构建长时间序列归一化植被指数(NDVI), 采用BFAST (Breaks For Additive Seasonal and Trend)方法实现大熊猫栖息地植被变化历史检测, 从植被累积突变、累积渐变和总变化3个指标揭示植被变化空间分布特征; 运用地理探测模型定量评价不同因子(年降水量、年平均气温、高程、坡度、坡向、与河流距离、土壤类型、土地覆盖类型、与道路的距离、与工程扰动区距离)对3种植被变化空间分布的影响。结果表明: 1)研究区内植被突变面积比例为9.13%, 主要分布于栖息地东部边界附近, 2011和2013年植被突变面积较大; 2)植被累积突变表现为退化面积占植被累积突变面积的40.17%, 植被累积渐变和总变化表明研究区植被呈现改善趋势, 改善面积比例分别占研究区的94.58%和97.02%; 3) 3种植被变化的空间分布主要受年降水量、年平均气温、高程、土壤类型4种因子的影响, 植被累积突变、累积渐变和总变化空间分布的最强解释因子分别为年降水量、高程和土壤类型, 驱动因子之间的交互作用为相互增强、非线性增强关系。

关键词: Breaks For Additive Seasonal and Trend (BFAST), 地理探测模型, 植被变化, 归一化植被指数, 大熊猫栖息地

Abstract:

Aims Understanding the processes and drivers of vegetation change in giant panda habitats plays an important role in their conservation and management.

Methods Based on the long-term normalized difference vegetation index (NDVI) time series that was constructed by all available Landsat TM/ETM/OLI images from 1986 to 2018, we employed the BFAST (Breaks For Additive Seasonal and Trend) method and harmonic model to monitor the vegetation change during the period of 1986-2018. Three types of NDVI changes (i.e. vegetation accumulated abrupt change, accumulated gradual change, and total change) were built to reveal the spatial distribution characteristics of vegetation change. The effects of different factors (i.e. mean annual precipitation, mean annual air temperature, elevation, slope, aspect, distance to rivers, soil type, land cover type, distance to roads and distance to engineering disturbance area) on the spatial distribution of the three types of vegetation change were evaluated by Geodetector.

Important findings 1) A total of 9.13% of vegetation abrupt change in the study area was detected, which was mainly distributed around the eastern boundary of the habitats, and the largest abrupt change areas occurred in 2011 and 2013. 2) The proportion of vegetation accumulated abrupt change showing degradation accounted for 40.17% of the vegetation accumulated abrupt change area, and the accumulated gradual change and total change which presented increasing trends accounted for 94.58% and 97.02% of the study area, respectively. 3) The spatial distribution of vegetation changes was mainly affected by four factors: mean annual precipitation, mean annual air temperature, elevation, and soil type. The strongest explanatory factors of vegetation accumulated abrupt change, accumulated gradual change, and total change were mean annual precipitation, elevation, and soil type, respectively. The interactions between driving factors were mutually enhanced and nonlinearly enhanced.

Key words: Breaks For Additive Seasonal and Trend (BFAST), Geodetector, vegetation change, normalized difference vegetation index (NDVI), giant panda habitat

周明星, 李登秋, 邹建军. 基于稠密Landsat数据的邛崃山大熊猫栖息地植被变化研究. 植物生态学报, 2021, 45(4): 355-369. DOI: 10.17521/cjpe.2020.0226

ZHOU Ming-Xing, LI Deng-Qiu, ZOU Jian-Jun. Vegetation change of giant panda habitats in Qionglai Mountains through dense Landsat Data. Chinese Journal of Plant Ecology, 2021, 45(4): 355-369. DOI: 10.17521/cjpe.2020.0226

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.plant-ecology.com/CN/10.17521/cjpe.2020.0226

https://www.plant-ecology.com/CN/Y2021/V45/I4/355

图/表 11

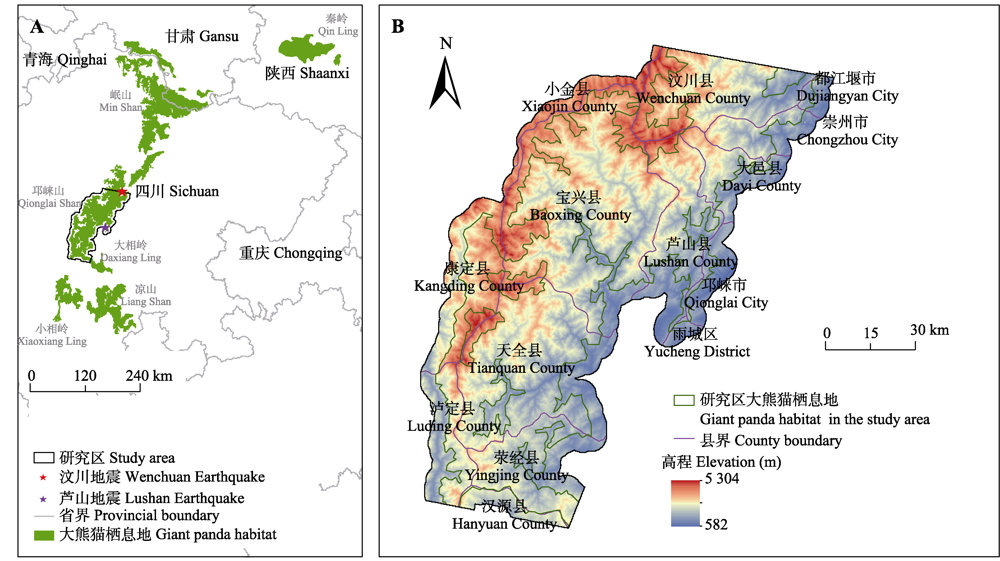

图1 邛崃山大熊猫栖息地研究区位置。大熊猫栖息地(包含潜在栖息地)范围来源于全国第四次大熊猫调查。

Fig. 1 Location of the study area of giant panda habitats in Qionglai Mountains. The boundary of giant panda habitats (including potential habitats) is from the Fourth National Giant Panda Survey.

表1 邛崃山大熊猫栖息地植被变化的驱动因子

Table 1 Drivers of vegetation change of giant panda habitats in Qionglai Mountains

因子类型 Factor type	因子 Factor	空间分辨率 Spatial resolution (m)	预处理(重采样) Preprocessing (resampling)
气候 Climate	年降水量 Mean annual precipitation (X1)	1 000	双线性内插法 Bilinear interpolation
气候 Climate	年平均气温 Mean annual air temperature (X2)	1 000	双线性内插法 Bilinear interpolation
地形 Topography	高程 Elevation (X3)	30	-
	坡度 Slope (X4)	30	-
	坡向 Aspect (X5)	30	-
河流 River	与河流距离 Distance to rivers (X6)	30	-
土壤类型 Soil type	土壤类型 Soil type (X7)	1 000	最邻近内插法 Nearest interpolation
人类活动 Human activity	土地覆盖类型 Land cover type (X8)	30	-
	与道路距离 Distance to roads (X9)	30	-
	与工程扰动区距离 Distance to engineering disturbance area (X10)	30	-

表2 1986-2018年邛崃山大熊猫栖息地植被不同突变次数的面积比例

Table 2 Area proportion for various number of vegetation abrupt change of giant panda habitats in Qionglai Mountains during 1986-2018

突变次数 Number of abrupt change	占研究区比例 Proportion of study area (%)		占突变区域比例 Proportion of abrupt change area (%)
突变次数 Number of abrupt change	栖息地 Habitat	外围区域 Peripheral area	栖息地 Habitat	外围区域 Peripheral area
0	58.09	32.78	-	-
1	5.74	2.92	62.87	31.98
2	0.24	0.21	2.63	2.30
3	0.01	0.01	0.11	0.11
4	0.00	0.00	0.00	0.00
≥1	5.99	3.14	65.61	34.39

图2 1986-2018年邛崃山大熊猫栖息地植被突变空间分布。A, 发生次数。B, 最近一次检测到突变的发生年份。

Fig. 2 Spatial distribution of vegetation abrupt change of giant panda habitats in Qionglai Mountains during 1986-2018. A, Number of abrupt change. B, Year of the latest abrupt change.

图3 1986-2018年邛崃山大熊猫栖息地植被变化。A, 植被累积突变。B, 植被累积渐变。C, 植被总变化。

Fig. 3 Vegetation change of giant panda habitats in Qionglai Mountains during 1986-2018. A, Vegetation accumulated abrupt change. B, Vegetation accumulated gradual change. C, Vegetation total change.

表3 邛崃山大熊猫栖息地因子探测器结果(q)

Table 3 Results of factor detector of giant panda habitats in Qionglai Mountains (q)

因子 Factor	植被累积突变 Vegetation accumulated abrupt change			植被累积渐变 Vegetation accumulated gradual change			植被总变化 Vegetation total change
因子 Factor	q	p(sig)	q排序 Sequence of q	q	p(sig)	q排序 Sequence of q	q	p(sig)	q排序 Sequence of q
X1	0.048 1	2.78E-10	1	0.031 5	6.49E-11	4	0.068 1	6.44E-10	5
X2	0.021 3	2.89E-10	2	0.037 6	6.14E-12	2	0.089 1	2.69E-11	3
X3	0.018 9	1.56E-10	3	0.037 7	5.38E-10	1	0.089 6	8.18E-10	2
X4	0.001 1	5.61E-11	10	0.000 3	2.78E-10	10	0.001 5	5.49E-10	10
X5	0.001 4	5.03E-10	9	0.001 6	2.10E-10	9	0.005 8	1.87E-10	9
X6	0.011 7	4.07E-11	5	0.012 3	6.59E-10	6	0.028 2	3.72E-10	6
X7	0.013 6	3.11E-11	4	0.037 5	1.95E-10	3	0.097 4	6.81E-10	1
X8	0.005 9	5.49E-10	7	0.023 8	4.22E-10	5	0.079 7	3.07E-10	4
X9	0.010 6	2.98E-10	6	0.008 0	6.97E-11	7	0.018 3	9.47E-10	7
X10	0.002 5	2.20E-11	8	0.003 1	6.36E-10	8	0.010 3	2.07E-10	8

表4 邛崃山大熊猫栖息地交互作用探测结果(每种植被变化选择前9个较大的q并进行排序)

Table 4 Results of interaction detector (the first nine larger q were selected and ranked for each vegetation change) of giant panda habitats in Qionglai Mountains

植被累积突变 Vegetation accumulated abrupt change		植被累积渐变 Vegetation accumulated gradual change		植被总变化 Vegetation total change
因子 Factor	q	因子 Factor	q	因子 Factor	q
X1∩X6	0.071 4^*	X7∩X1	0.052 5	X7∩X3	0.134 8
X1∩X7	0.068 9^*	X7∩X3	0.050 2	X7∩X8	0.133 4
X1∩X2	0.065 3	X7∩X2	0.049 7	X7∩X2	0.131 9
X1∩X3	0.064 0	X7∩X8	0.047 5	X7∩X1	0.130 2
X1∩X9	0.061 9^*	X3∩X1	0.045 7	X8∩X3	0.122 6
X1∩X10	0.061 5^*	X8∩X3	0.045 0	X8∩X2	0.121 5
X1∩X8	0.057 0^*	X8∩X2	0.045 0	X7∩X6	0.117 8
X1∩X5	0.051 9^*	X8∩X1	0.044 9	X7∩X9	0.114 5
X1∩X4	0.051 0^*	X7∩X6	0.044 4	X8∩X1	0.113 8

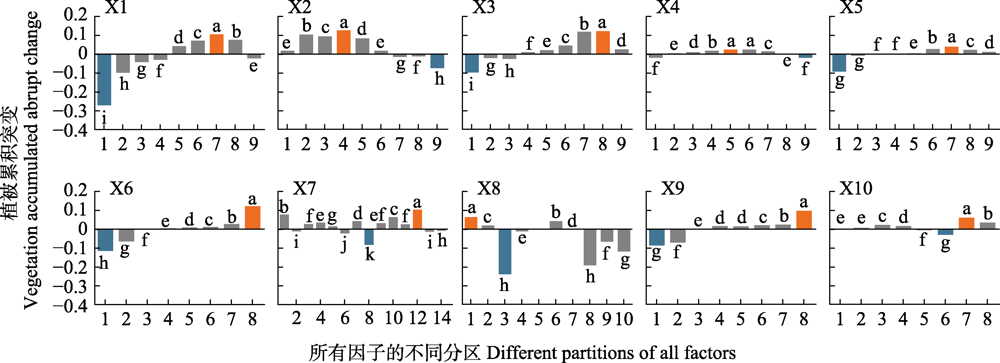

图4 邛崃山大熊猫栖息地植被累积突变的风险探测器结果。不同小写字母表示不同分区之间存在显著差异(p< 0.05), 因子(X1-X10)同表1。

Fig. 4 Risk detection result of vegetation accumulated abrupt change of giant panda habitats in Qionglai Mountains. Different lowercase letters indicate significant differences between the different partitions (p < 0.05). The factors (X1-X10) are the same as Table 1.

图5 邛崃山大熊猫栖息地植被累积渐变的风险探测结果。不同小写字母表示不同分区之间存在显著差异(p < 0.05), 因子(X1-X10)同表1。

Fig. 5 Risk detection result of vegetation accumulated gradual change of giant panda habitats in Qionglai Mountains. Different lowercase letters indicate significant differences between the different partitions (p < 0.05). The factors (X1-X10) are the same as Table 1.

图6 邛崃山大熊猫栖息地植被总变化的风险探测结果。不同小写字母表示不同分区之间存在显著差异(p < 0.05), 因子(X1-X10)同表1。

Fig. 6 Risk detection result of vegetation total change of giant panda habitats in Qionglai Mountains. Different lowercase letters indicate significant differences between the different partitions (p < 0.05). The factors (X1-X10) are the same as Table 1.

图7 邛崃山大熊猫栖息地植被突变对植被变化因子探测器结果的影响(q)。区域I代表检测到植被突变的区域, 区域II代表未检测到植被突变的区域, 因子(X1-X10)同表1。

Fig. 7 Impacts of vegetation abrupt change of giant panda habitats in Qionglai Mountains on the results of factor detector (q). Area I represents the area where vegetation abrupt change is detected, and area II represents the area where vegetation abrupt change is not detected. The factors (X1-X10) are the same asTable 1.

参考文献 58

[1]	Ameca EI, Dai Q, Nie YG, Gu XD, Wei FW (2019). Implications of flood disturbance for conservation and management of giant panda habitat in human-modified landscapes. Biological Conservation, 232, 35-42. DOI
[2]	Bai WK ( 2017). The Dynamics of Space Utilization and Habitat Selection of Giant Pandas (Ailuropoda melanoleuca) in Wolong Nature Reserve . PhD dissertation, Inner Mongolia Agricultural University,Hohhot.
	[ 白文科 ( 2017). 卧龙自然保护区大熊猫空间利用与生境选择动态变化研究. 博士学位论文, 内蒙古农业大学, 呼和浩特.]
[3]	Cao F, Ge Y, Wang JF (2013). Optimal discretization for geographical detectors-based risk assessment. GIScience & Remote Sensing, 50, 78-92.
[4]	Chen B, Li HD, Cao XZ ( 2014). Advances in studies on degradation and re-vegetation of typical ecosystems on Tibetan Plateau, China. World Forestry Research, 27(5), 18-23.
	[ 陈斌, 李海东, 曹学章 ( 2014). 西藏高原典型生态系统退化及植被恢复技术综述. 世界林业研究, 27(5), 18-23.]
[5]	Chen JL, Xia JG, Yu YH ( 2020). Correlation analysis of vegetation coverage and topographic factors in Yaʼan City based on RS and GIS. Journal of Anhui Agricultural Sciences, 48(5), 88-92.
	[ 陈家良, 夏建国, 余雨红 ( 2020). 基于RS和GIS的雅安市植被覆盖度与地形因子相关分析. 安徽农业科学, 48(5), 88-92.]
[6]	Chen LF, Michishita R, Xu B (2014). Abrupt spatiotemporal land and water changes and their potential drivers in Poyang Lake, 2000-2012. ISPRS Journal of Photogrammetry and Remote Sensing, 98, 85-93. DOI URL
[7]	Deng XZ, Jiang QO, Ge QS, Yang LS (2010). Impacts of the Wenchuan Earthquake on the giant panda nature reserves in China. Journal of Mountain Science, 7, 197-206. DOI URL
[8]	DeVries B, Verbesselt J, Kooistra L, Herold M (2015). Robust monitoring of small-scale forest disturbances in a tropical montane forest using Landsat time series. Remote Sensing of Environment, 161, 107-121. DOI URL
[9]	Dong BN ( 2017). Spatio-temporal Variations of Habitat Selection by Giant Pandas and its Habitat Disturbance in Qionglai Mountains, China . Master degree dissertation, China West Normal University, Nanchong,Sichuan.
	[ 董冰楠 ( 2017). 邛崃山系大熊猫生境选择及栖息地干扰时空变化研究. 硕士学位论文, 西华师范大学, 四川南充.]
[10]	Dutrieux LP, DeVries B, Verbesselt J (2016a). bfastSpatial: Utilities to monitor for change on satellite image time-series. R package version 0.6.3. [2016-10-22]. https://github.com/loicdtx/ bfast Spatial.
[11]	Dutrieux LP, Jakovac CC, Latifah SH, Kooistra L (2016b). Reconstructing land use history from Landsat time-series: case study of a swidden agriculture system in Brazil. International Journal of Applied Earth Observation and Geoinformation, 47, 112-124. DOI URL
[12]	Fang XQ, Zhu QA, Ren LL, Chen H, Wang K, Peng CH (2018). Large-scale detection of vegetation dynamics and their potential drivers using MODIS images and BFAST: a case study in Quebec, Canada. Remote Sensing of Environment, 206, 391-402. DOI URL
[13]	Forestry Department of Sichuan Province ( 2015). The Panda of Sichuan: the 4th Survey Report on Giant Panda in Sichuan Province. Sichuan Science and Technology Press, Chengdu.
	[四川省林业厅 ( 2015). 四川的大熊猫: 四川省第四次大熊猫调查报告. 四川科学技术出版社, 成都.]
[14]	Fu G, Sun W, Li SW, Zhang J, Yu CQ, Shen ZX (2017). Modeling aboveground biomass using MODIS images and climatic data in grasslands on the Tibetan Plateau. Journal of Resources and Ecology, 8, 42-49. DOI URL
[15]	Geng LY, Che T, Wang XF, Wang HB (2019). Detecting spatiotemporal changes in vegetation with the BFAST model in the Qilian Mountain Region during 2000-2017. Remote Sensing, 11, 103. DOI: 10.3390/rs11020103. DOI URL
[16]	He Q, Yang XQ, Dai XA ( 2020). Variation characteristics and influence factors of net primary productivity of vegetation in the Three-River Headwaters Region from 2010 to 2015. Journal of Yangtze River Scientific Research Institute, 37(5), 59-66.
	[ 贺倩, 杨雪琴, 戴晓爱 ( 2020). 2010-2015年三江源地区植被净初级生产力变化特征及影响因素分析. 长江科学院院报, 37(5), 59-66.]
[17]	Hijmans RJ (2020). Raster: geographic data analysis and modeling. R package version 3.3-13. [2020-07-16]. https:// CRAN.R-project.org/package=raster.
[18]	Huang YL, Liang CT, Wu J, Wang CL, Liu ZQ, Jiang NB ( 2020). The seismicity in the southern Longmenshan fault zone based on a dense seismic array. Chinese Journal of Geophysics, 63, 1183-1196.
	[ 黄焱羚, 梁春涛, 吴晶, 王朝亮, 刘志强, 江宁波 ( 2020). 基于密集台阵研究龙门山断裂带南段地震空段的地震活动性. 地球物理学报, 63, 1183-1196.]
[19]	Jenks GF (1967). The data model concept in statistical mapping. International Yearbook of Cartography, 7, 186-190.
[20]	Jian J, Jiang H, Zhou GM, Jiang ZS, Yu SQ, Peng SL, Liu SY, Wang JX (2011). Mapping the vegetation changes in giant panda habitat using Landsat remotely sensed data. International Journal of Remote Sensing, 32, 1339-1356. DOI URL
[21]	Jiao QJ, Zhang B, Liu LY, Li ZW, Yue YM, Hu Y (2014). Assessment of spatio-temporal variations in vegetation recovery after the Wenchuan earthquake using Landsat data. Natural Hazards, 70, 1309-1326. DOI URL
[22]	Kang D, Zou SZ ( 2019). Advances in regeneration of plants after earthquake in giant pandas’ habitat. Ecological Science, 38(6), 178-183.
	[ 康迪, 邹书珍 ( 2019). 大熊猫栖息地地震受损植被恢复研究进展. 生态科学, 38(6), 178-183.]
[23]	Kang DW, Zhao ZJ, Chen XY, Lin YC, Wang XR, Li JQ (2020). Evaluating the effects of roads on giant panda habitat at two scales in a typical nature reserve. Science of the Total Environment, 710, 136351. DOI: 10.1016/j.scitotenv.2019. 136351. DOI URL
[24]	Kong W, Sun OJ, Chen Y, Yu Y, Tian Z (2010). Patch-level based vegetation change and environmental drivers in Tarim River drainage area of West China. Landscape Ecology, 25, 1447-1455. DOI URL
[25]	Li DQ, Lu DS, Wu M, Shao XX, Wei JH (2017). Examining land cover and greenness dynamics in Hangzhou Bay in 1985-2016 using Landsat time-series data. Remote Sensing, 10, 32. DOI: 10.3390/rs10010032. DOI URL
[26]	Li JZ, Cao MM, Qiu HJ, Xue B, Hu S, Cui P ( 2016). Spatial- temporal process and characteristics of vegetation recovery after Wenchuan earthquake: a case study in Longxi River basin of Dujiangyan, China. Chinese Journal of Applied Ecology, 27, 3479-3486.
	[ 李京忠, 曹明明, 邱海军, 薛冰, 胡胜, 崔鹏 ( 2016). 汶川地震区灾后植被恢复时空过程及特征——以都江堰龙溪河流域为例. 应用生态学报, 27, 3479-3486.]
[27]	Li Y, Viña A, Yang W, Chen XD, Zhang JD, Ouyang ZY, Liang Z, Liu JG (2013). Effects of conservation policies on forest cover change in giant panda habitat regions, China. Land Use Policy, 33, 42-53. DOI URL
[28]	Li YY, You LL, Chen YS, Huang JX ( 2018). Spatial-temporal characteristics of multi-pond landscape change and their driving factors in the Chaohu Basin, China. Acta Ecologica Sinica, 38, 6280-6291.
	[ 李莹莹, 尤罗利, 陈永生, 黄季夏 ( 2018). 环巢湖地区多水塘景观时空格局演变特征及其驱动因素. 生态学报, 38, 6280-6291.]
[29]	Liang YX, Wang G, Wang HR ( 2018). GIS-based analysis on giant panda habitat characteristics in National Giant Panda Park of Sichuan Province. Journal of Sichuan Forestry Science and Technology, 39(4), 98-101.
	[ 梁玉喜, 王戈, 王洪荣 ( 2018). 基于GIS大熊猫活动区域环境特征分析——以大熊猫国家公园(四川)为例. 四川林业科技, 39(4), 98-101.]
[30]	Liao Y, Wang XY, Zhou JM ( 2016). Suitability assessment and validation of giant panda habitat based on Geographical Detector. Journal of Geo-Information Science, 18, 767-778.
	[ 廖颖, 王心源, 周俊明 ( 2016). 基于地理探测器的大熊猫生境适宜度评价模型及验证. 地球信息科学学报, 18, 767-778.]
[31]	Lu T, Zeng HC, Luo Y, Wang Q, Shi FS, Sun G, Wu Y, Wu N (2012). Monitoring vegetation recovery after China’s May 2008 Wenchuan earthquake using Landsat TM time-series data: a case study in Mao County. Ecological Research, 27, 955-966. DOI URL
[32]	Luo HF, Miao F, Ye CM, Zhao GX ( 2013). Vegetation coverage change of Maoxian County before and after Wenchuan earthquake. Bulletin of Soil and Water Conservation, 33, 202-205.
	[ 罗慧芬, 苗放, 叶成名, 赵国祥 ( 2013). 汶川地震前后茂县植被覆盖度变化研究. 水土保持通报, 33, 202-205.]
[33]	Luo J, Li W, Chen FH, He YM, Gao JN ( 2018). Conservation and management of the World Natural Heritage of Sichuan panda habitats. Journal of Sichuan Forestry Science and Technology, 39(1), 44-49.
	[ 罗辑, 李伟, 陈飞虎, 何咏梅, 高嘉宁 ( 2018). 四川大熊猫栖息地世界自然遗产的保护与管理. 四川林业科技, 39(1), 44-49.]
[34]	Ma B, Lei S, Qing Q, Wen YL (2018). Should the endangered status of the giant panda really be reduced? The case of giant panda conservation in Sichuan, China. Animals, 8, 69. DOI: 10.3390/ani8050069. DOI URL
[35]	Meng QK, Miao F, Zhen J, Huang Y, Wang XY, Peng Y (2016). Impact of earthquake-induced landslide on the habitat suitability of giant panda in Wolong, China. Journal of Mountain Science, 13, 1789-1805. DOI URL
[36]	Ouyang W, Hao FH, Zhao C, Lin C (2010). Vegetation response to 30 years hydropower cascade exploitation in upper stream of Yellow River. Communications in Nonlinear Science and Numerical Simulation, 15, 1928-1941. DOI URL
[37]	Peng WF, Zhang DM, Luo YM, Tao S, Xu XL ( 2019). Influence of natural factors on vegetation NDVI using geographical detection in Sichuan Province. Acta Geographica Sinica, 74, 1758-1776.
	[ 彭文甫, 张冬梅, 罗艳玫, 陶帅, 徐新良 ( 2019). 自然因子对四川植被NDVI变化的地理探测. 地理学报, 74, 1758-1776.]
[38]	Piao YC, Guan YN, Zhang CY, Guo S, Yan BP ( 2016). Analysis of temporal and spatial changes in vegetation cover using wavelet transform method in Wolong Natural Reserve. Acta Ecologica Sinica, 36, 2656-2668.
	[ 朴英超, 关燕宁, 张春燕, 郭杉, 阎保平 ( 2016). 基于小波变换的卧龙国家级自然保护区植被时空变化分析. 生态学报, 36, 2656-2668.]
[39]	Qin Q, Huang Y, Liu JR, Chen D, Zhang L, Qiu J, Tan HL, Wen YL (2019). The landscape patterns of the giant panda protection area in Sichuan Province and their impact on giant pandas. Sustainability, 11, 5993. DOI: 10.3390/ su11215993. DOI URL
[40]	Verbesselt J, Hyndman R, Newnham G, Culvenor D (2010a). Detecting trend and seasonal changes in satellite image time series. Remote Sensing of Environment, 114, 106-115. DOI URL
[41]	Verbesselt J, Hyndman R, Zeileis A, Culvenor D (2010b). Phenological change detection while accounting for abrupt and gradual trends in satellite image time series. Remote Sensing of Environment, 114, 2970-2980. DOI URL
[42]	Wang EL, Wang XQ, Chen YZ ( 2017). The breakpoints detection method using time series of vegetation fractional coverage. Journal of Geo-information Science, 19, 1355-1363.
	[ 王恩鲁, 汪小钦, 陈芸芝 ( 2017). 时间序列植被覆盖度断点检测方法研究. 地球信息科学学报, 19, 1355-1363.]
[43]	Wang JF, Li XH, Christakos G, Liao YL, Zhang T, Gu X, Zheng XY (2010). Geographical detectors-based health risk assessment and its application in the neural tube defects study of the Heshun region, China. International Journal of Geographical Information Science, 24, 107-127. DOI URL
[44]	Wang JF, Xu CD ( 2017). Geodetector: principle and prospective. Acta Geographica Sinica, 72, 116-134.
	[ 王劲峰, 徐成东 ( 2017). 地理探测器: 原理与展望. 地理学报, 72, 116-134.]
[45]	Wang JF, Zhang TL, Fu BJ (2016). A measure of spatial stratified heterogeneity. Ecological Indicators, 67, 250-256. DOI URL
[46]	Wang W, Ailm S, Jilili A ( 2019). Geo-detector based spatio- temporal variation characteristics and driving factors analysis of NDVI in Central Asia. Remote Sensing for Land & Resources, 31(4), 32-40.
	[ 王伟, 阿里木•赛买提, 吉力力•阿不都外力 ( 2019). 基于地理探测器模型的中亚NDVI时空变化特征及其驱动因子分析. 国土资源遥感, 31(4), 32-40.]
[47]	Wang XZ, Xu WH, Ouyang ZY, Zhang JD ( 2008). Impacts of Wenchuan earthquake on giant panda habitat in Dujiangyan region. Acta Ecologica Sinica, 28, 5856-5861.
	[ 王学志, 徐卫华, 欧阳志云, 张晋东 ( 2008). 汶川地震对都江堰地区大熊猫生境的影响. 生态学报, 28, 5856-5861.]
[48]	Wanghe KY, Guo XL, Hu FX, Ahmad S, Jin XW, Khan TU, Xiao YQ, Luan XF (2020). Spatial coincidence between mining activities and protected areas of giant panda habitat: the geographic overlaps and implications for conservation. Biological Conservation, 247, 108600. DOI: 10.1016/ j.biocon.2020.108600. DOI URL
[49]	Xiong JN, Peng C, Fan CK, Sun M, Liu ZQ, Gong Y ( 2018). Dynamic monitoring of vegetation fraction change in disaster area of Wenchuan earthquake based on MODIS time- series data. Journal of Basic Science and Engineering, 26, 60-69.
	[ 熊俊楠, 彭超, 范春捆, 孙铭, 刘志奇, 龚颖 ( 2018). 基于MODIS时序数据的汶川地震灾区植被覆盖变化监测. 应用基础与工程科学学报, 26, 60-69.]
[50]	Yan ZG, Li JQ ( 2017). Assessment of ecosystem in giant panda distribution area based on entropy method and coefficient of variation. Chinese Journal of Applied Ecology, 28, 4007-4016.
	[ 闫志刚, 李俊清 ( 2017). 基于熵值法与变异系数的大熊猫分布区生态系统评价. 应用生态学报, 28, 4007-4016.]
[51]	Zeileis A, Kleiber C, Krämer W, Hornik K (2003). Testing and dating of structural changes in practice. Computational Statistics & Data Analysis, 44, 109-123. DOI URL
[52]	Zeileis A, Leisch F, Hornik K, Kleiber C (2002). strucchange: an R package for testing for structural change in linear regression models. Journal of Statistical Software, 7(2), 1-38.
[53]	Zhai YQ, Zhang C, Zhou Q, Chang XY ( 2018). Spatio-temporal variation and interrelationship of vegetation cover and soil moisture in Qinling-Daba Mountains. Journal of Geo-information Science 20, 967-977
	[ 翟雅倩, 张翀, 周旗, 常宵移 ( 2018). 秦巴山区植被覆盖与土壤湿度时空变化特征及其相互关系. 地球信息科学学报, 20, 967-977.]
[54]	Zhang YB ( 2010). The Impact of Conservation Projects on Giant Panda Habitat and Local Community: a Case Study in Mupi Tibetan Town, Pingwu Country . PhD dissertation, Beijing Forestry University,Beijing.
	[ 张玉波 ( 2010). 生态保护项目对大熊猫栖息地和当地社区的影响: 以平武县木皮藏族乡为例. 博士学位论文, 北京林业大学, 北京.]
[55]	Zhang ZJ, Swaisgood RR, Zhang SN, Nordstrom LA, Wang HJ, Gu XD, Hu JC, Wei FW (2011). Old-growth forest is what giant pandas really need. Biology Letters, 7, 403-406. DOI URL
[56]	Zhao D, Zhang M, Yu MZ, Zeng Y, Wu BF ( 2014). Monitoring agriculture and forestry recovery after the Wenchuan Earthquake. Journal of Remote Sensing, 18, 958-970.
	[ 赵旦, 张淼, 于名召, 曾源, 吴炳方 ( 2014). 汶川地震灾后农田和森林植被恢复遥感监测. 遥感学报, 18, 958-970.]
[57]	Zheng J, Feng WL, Niu XJ, He BW ( 2016). Vegetation change and its correlation with meteorological factors in Sichuan Province. Bulletin of Soil and Water Conservation, 36, 99-104.
	[ 郑杰, 冯文兰, 牛晓俊, 何炳伟 ( 2016). 四川省植被变化及其与气象因子的相关性分析. 水土保持通报, 36, 99-104.]
[58]	Zhu Z, Fu YC, Woodcock CE, Olofsson P, Vogelmann JE, Holden C, Wang M, Dai S, Yu Y (2016). Including land cover change in analysis of greenness trends using all available Landsat 5, 7, and 8 images: a case study from Guangzhou, China (2000-2014). Remote Sensing of Environment, 185, 243-257. DOI URL

基于稠密Landsat数据的邛崃山大熊猫栖息地植被变化研究

Vegetation change of giant panda habitats in Qionglai Mountains through dense Landsat Data

全文

PDF (PC)

附录附件

可视化

被引次数

摘要/Abstract

引用本文

使用本文

图/表 11

参考文献 58

相关文章 15

编辑推荐

Metrics

本文评价

[1]	陈雪萍, 赵学勇, 张晶, 王瑞雄, 卢建男. 基于地理探测器的科尔沁沙地植被NDVI时空变化特征及其驱动因素[J]. 植物生态学报, 2023, 47(8): 1082-1093.
[2]	缪丽娟, 张宇阳, 揣小伟, 包刚, 何昱, 朱敬雯. 亚洲旱区草地NDVI对气候变化的响应及滞后效应[J]. 植物生态学报, 2023, 47(10): 1375-1385.
[3]	朱玉英, 张华敏, 丁明军, 余紫萍. 青藏高原植被绿度变化及其对干湿变化的响应[J]. 植物生态学报, 2023, 47(1): 51-64.
[4]	刘宁, 彭守璋, 陈云明. 气候因子对青藏高原植被生长的时间效应[J]. 植物生态学报, 2022, 46(1): 18-26.
[5]	倪铭, 张曦月, 姜超, 王鹤松. 中国西南部地区植被对极端气候事件的响应[J]. 植物生态学报, 2021, 45(6): 626-640.
[6]	汲玉河, 周广胜, 王树东, 王丽霞, 周梦子. 2000-2019年秦岭地区植被生态质量演变特征及驱动力分析[J]. 植物生态学报, 2021, 45(6): 617-625.
[7]	陈哲, 汪浩, 王金洲, 石慧瑾, 刘慧颖, 贺金生. 基于物候相机归一化植被指数估算高寒草地植物地上生物量的季节动态[J]. 植物生态学报, 2021, 45(5): 487-495.
[8]	徐光来, 李爱娟, 徐晓华, 杨先成, 杨强强. 中国生态功能保护区归一化植被指数动态及气候因子驱动[J]. 植物生态学报, 2021, 45(3): 213-223.
[9]	张文强, 罗格平, 郑宏伟, 王浩, HAMDI Rafiq, 何惠丽, 蔡鹏, 陈春波. 基于随机森林模型的内陆干旱区植被指数变化与驱动力分析: 以北天山北坡中段为例[J]. 植物生态学报, 2020, 44(11): 1113-1126.
[10]	史娜娜, 肖能文, 王琦, 韩煜, 高晓奇, 冯瑾, 全占军. 锡林郭勒植被NDVI时空变化及其驱动力定量分析[J]. 植物生态学报, 2019, 43(4): 331-341.
[11]	赵芸, 贾荣亮, 高艳红, 周媛媛, 滕嘉玲. 腾格里沙漠人工固沙植被演替过程中生物土壤结皮归一化植被指数的变化特征[J]. 植物生态学报, 2017, 41(9): 972-984.
[12]	李芳, 赵文智. 黑河中游荒漠生态系统归一化植被指数对降水的响应[J]. 植物生态学报, 2016, 40(12): 1245-1256.
[13]	张琪, 袁秀亮, 陈曦, 罗格平, 李龙辉. 1982-2012年中亚植被变化及其对气候变化的响应[J]. 植物生态学报, 2016, 40(1): 13-23.
[14]	孙晓鹏, 王天明, 寇晓军, 葛剑平. 黄土高原泾河流域长时间序列的归一化植被指数动态变化及其驱动因素分析[J]. 植物生态学报, 2012, 36(6): 511-521.
[15]	宋创业, 刘慧明, 刘高焕, 黄翀. 采用广义加法模型整合数字高程模型和遥感数据进行植被分布预测[J]. 植物生态学报, 2012, 36(10): 1106-1119.
