生长季五角枫茎干水分含量序列特征及其影响因素解译

doi:10.17521/cjpe.2023.0094

摘要/Abstract

摘要：

活立木茎干水分含量作为一种典型的生理水分参数, 一直是活立木生命状态最为有效的表征参数之一, 对维持整株树木水分平衡起着极其重要的作用, 受到研究者、林木抚育者的高度重视。但活立木茎干水分含量的获取方法一直受到操作烦琐、成本昂贵、实时性不强、准确率不高及有损活立木生命等因素的影响, 限制了对其深入的应用研究。该研究创新性地采用一种具有自主知识产权的茎干水分传感器, 实时、无损地获取活立木茎干水分含量, 并对茎干水分含量序列特征及其影响因素进行较为详细的研究。以常见的绿化树种五角枫(五角槭, Acer pictum subsp. mono)为研究对象, 采用基于驻波率原理的植物茎干水分传感器实现对五角枫茎干水分含量原位且无损监测, 同步监测相关气象因子, 分析生长季不同时期茎干水分含量序列特征及其与各气象因子的关系。结果显示: (1)茎干水分含量在春季(4月)和秋季中后期(9-10月)呈“昼升夜降”的趋势, 夏季至秋季中期(5-8月)呈“昼降夜升”的趋势; 阴天会抑制茎干水分含量的日极差与极大值, 雨天时, 茎干水分含量会明显上升; 干燥天气会使茎干水分含量呈下降趋势; (2)生长季萌芽期, 对茎干水分含量变化起直接作用的气象因子主要是空气温度和饱和水汽压差, 茎干水分含量与空气温度和土壤水分含量呈显著相关关系; 生长期, 影响茎干水分含量的主导因子为饱和水汽压差和土壤温度, 茎干水分含量与饱和水汽压差和空气温度呈显著相关关系; 落叶期, 对茎干水分含量变化起直接作用的因子主要为空气温度和饱和水汽压差, 且茎干水分含量与两因子的皮尔逊相关系数较高。采用逐步回归分析法构建3个时期茎干水分含量与各气象因子的回归方程模型, 不同时期进入回归模型中的气象因子均有所不同。综上所述, 该研究揭示了在不同气象因子协同作用下生长季茎干水分含量呈现出不同的序列特征及其影响因素, 可为理解植物茎干内部水分运移规律及其环境适应机制提供一定的借鉴作用。

关键词: 五角枫, 茎干水分含量, 气象因子, 生长季

Abstract:

Aims As a typical water-related physiological parameter, the stem water content of living standing trees has always been one of the most effective characterization parameters of the life state of living standing trees, which plays an important role in maintaining the water balance of the whole tree, and has been highly valued by researchers and forest tender. However, the method of obtaining stem water content sequence of living standing trees has been affected by factors such as cumbersome operation, expensive cost, poor real-time performance, low accuracy and damage to the life of living standing trees, which limits its in-depth research and application. We innovatively adopted a stem water content sensor with independent intellectual property rights to obtain the stem water content of standing trees in real time and non-destructively, and conducted a thorough investigation of the stem water content sequence and its influencing factors.

Methods A common virescence tree species Acer pictumsubsp. mono was chosen as the research object. The stem water content sensors based on the standing wave rate principle independently developed by our team were used to achieve in-situ and non-destructive monitoring of stem water content in the growing season. Meanwhile, meteorological parameters were simultaneously measured. The sequence characteristics of stem water content and its response to meteorological factors at different stages of growing season were analyzed.

Important findings (1) In spring (April) and mid-late autumn (from September to October), the stem water content presented the rhythm of “rising in the day and falling in the night”, while from summer to middle autumn (from May to August) presented a rhythm of “falling in the day and rising in the night”; the daily range and maximum of stem water content would be inhabited under the cloudy day, while rainy days led the stem water content surge to a large value, and dry days dropped the stem water content. (2) During the germination stage, the main meteorological factors that had direct effects on the variation of stem water content were air temperature and vapor pressure deficit. During the growth period, the main meteorological factors directly affecting stem water content were vapor pressure deficit and soil temperature. During the defoliation stage, the main meteorological factors that had direct effects on stem water content were air temperature and vapor pressure deficit, and the Pearson correlation coefficients between stem water content and these two factors were higher. A stepwise regression analysis method was used to model the relationship between stem water content and various meteorological factors in these three periods, the meteorological factors entering the regression model at different periods were different. In conclusion, this study revealed that stem water content exhibited different sequence characteristics and influencing factors under the synergistic effects of different meteorological factors, which could provide some insights into the internal water transport capacity and environmental adaptation mechanism of plant stems.

Key words: Acer pictum subsp. mono, stem water content, meteorological factor, growing season

许泽海, 赵燕东. 生长季五角枫茎干水分含量序列特征及其影响因素解译. 植物生态学报, 2024, 48(6): 794-808. DOI: 10.17521/cjpe.2023.0094

XU Ze-Hai, ZHAO Yan-Dong. Interpretation of sequence characteristics and influencing factors of stem water content for Acer pictum subsp. mono in its growing season. Chinese Journal of Plant Ecology, 2024, 48(6): 794-808. DOI: 10.17521/cjpe.2023.0094

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.plant-ecology.com/CN/10.17521/cjpe.2023.0094

https://www.plant-ecology.com/CN/Y2024/V48/I6/794

图/表 10

参考文献 48

[1]	Beedlow PA, Waschmann RS, Lee EH, Tingey DT (2017). Seasonal patterns of bole water content in old growth Douglas-fir (Pseudotsuga menziesii (Mirb.) Franco). Agricultural and Forest Meteorology, 242, 109-119. DOI PMID
[2]	Bodo AV, Arain MA (2022). Effects of variable retention harvesting on canopy transpiration in a red pine plantation forest. Ecological Processes, 11, 28. DOI: 10.1186/s13717-022-00366-0. PMID
[3]	Cabon A, Peters RL, Fonti P, Martínez-Vilalta J, De Cáceres M (2020). Temperature and water potential co-limit stem cambial activity along a steep elevational gradient. New Phytologist, 226, 1325-1340. DOI PMID
[4]	Campbell GS, Norman JM (1998). Radiation fluxes in natural environments//Campbell GS, Norman JM. An Introduction to Environmental Biophysics. Springer, New York. 167-184.
[5]	Carrasco-Benavides M, Gonzalez Viejo C, Tongson E, Baffico- Hernández A, Ávila-Sánchez C, Mora M, Fuentes S (2022). Water status estimation of cherry trees using infrared thermal imagery coupled with supervised machine learning modeling. Computers and Electronics in Agriculture, 200, 107256. DOI: 10.1016/j.compag.2022.107256.
[6]	Charrier G, Améglio T (2011). The timing of leaf fall affects cold acclimation by interactions with air temperature through water and carbohydrate contents. Environmental and Experimental Botany, 72, 351-357.
[7]	Chen Y, Bongers F, Tomlinson K, Fan Z, Lin H, Zhang S, Zhang J (2016). Time lags between crown and basal sap flows in tropical lianas and co-occurring trees. Tree Physiology, 36, 736-747.
[8]	Cheng X, Yan X, Grantz DA, Xiang Y, de Oliveira RF, Huang L, Wang Z, Du T, Cheng Q (2021). In-situ and non-invasive measurement of stem water content of trees using an innovative interdigitated-electrodes dielectric sensor less susceptible to stem diameter variation. Agricultural and Forest Meteorology, 307, 108473. DOI: 10.1016/j.agrformet.2021.108473.
[9]	Deng Z, Guan H, Hutson J, Forster MA, Wang Y, Simmons CT (2017). A vegetation-focused soil-plant-atmospheric continuum model to study hydrodynamic soil-plant water relations. Water Resources Research, 53, 4965-4983.
[10]	Gao C, Zhao YE, Zhao YD (2019). A novel sensor for noninvasive detection of in situ stem water content based on standing wave ratio. Journal of Sensors, 2019, 1-10.
[11]	Hao G, Wheeler JK, Holbrook NM, Goldstein G (2013). Investigating xylem embolism formation, refilling and water storage in tree trunks using frequency domain reflectometry. Journal of Experimental Botany, 64, 2321-2332.
[12]	He H, Turner NC, Aogu KL, Dyck M, Feng H, Si B, Wang J, Lv J (2021). Time and frequency domain reflectometry for the measurement of tree stem water content: a review, evaluation, and future perspectives. Agricultural and Forest Meteorology, 306, 108442. DOI: 10.1016/j.agrformet.2021.108442.
[13]	Ji QW, Zheng CY, Zhang L, Zeng FX (2020). Stem radial growth dynamics of Pinus sylvestris var. mongolica and their relationship with meteorological factor in Saihanba, Hebei, China. Chinese Journal of Plant Ecology, 44, 257-265.
	[季倩雯, 郑成洋, 张磊, 曾发旭 (2020). 河北塞罕坝樟子松径向生长动态变化及其与气象因子的关系. 植物生态学报, 44, 257-265.] DOI
[14]	Jupa R, Plavcová L, Gloser V, Jansen S (2016). Linking xylem water storage with anatomical parameters in five temperate tree species. Tree Physiology, 36, 756-769. DOI PMID
[15]	Kilpeläinen J, Domisch T, Lehto T, Piirainen S, Silvennoinen R, Repo T (2022). Separating the effects of air and soil temperature on silver birch. Part I. Does soil temperature or resource competition determine the timing of root growth? Tree Physiology, 42, 2480-2501. DOI PMID
[16]	Li B, Zheng SY, Wei XG, Wang TL, Sun J, Ge D (2019). Study on sap flow characteristics of grape and its environment influencing factors in cold regions of northeastern China. Transactions of the Chinese Society of Agricultural Engineering, 35, 185-193.
	[李波, 郑思宇, 魏新光, 王铁良, 孙君, 葛东 (2019). 东北寒区日光温室葡萄液流特征及其主要环境影响因子研究. 农业工程学报, 35, 185-193.]
[17]	Li GD, Fu HM, Jia LM (2014). Studies on the characteristics of xylem sap flow and water capacitance of Ginkgo biloba. Journal of Northwest Forestry University, 29, 54-58.
	[李广德, 付海曼, 贾黎明 (2014). 银杏树干边材液流及水容特性研究. 西北林学院学报, 29, 54-58.]
[18]	Li JM, Ren RD, Fan BH, Ma LL, Wang GP (2020). Effects of irrigation amount on the rhizospheric environment and stem flow of melon cultivated with full organic nutrition in greenhouse. Transactions of the Chinese Society of Agricultural Engineering, 36, 217-224.
	[李建明, 任瑞丹, 范兵华, 马乐乐, 王归鹏 (2020). 灌溉量对温室全有机营养液栽培甜瓜根际环境和茎流的影响. 农业工程学报, 36, 217-224.]
[19]	Li LJ, Zhao ZY, Yue YB, Nie KY, Wang H, Yuan L (2021). Sap flow characteristics of pitaya (Hylocereus polyrhizus) and its response to environmental factors. Transactions of the Chinese Society of Agricultural Engineering, 37, 242-250.
	[李莉婕, 赵泽英, 岳延滨, 聂克艳, 王虎, 袁玲 (2021). 火龙果周年液流特征及其对环境因子的响应. 农业工程学报, 37, 242-250.]
[20]	Liang H, Zhang M, Wang HL, Gao C, Zhao YD (2020). Variation characteristics of stem water content in Lagerstroemia indica and its response to environmental factors. Journal of Sensors, 2020, 1-10.
[21]	Liu WP, Song W, Gao C, Zhao YD (2021). Construction of evaluation model of poplar growth status based on stem moisture of standing trees. Scientia Silvae Sinicae, 57(5), 43-52.
	[刘卫平, 宋维, 高超, 赵燕东 (2021). 基于活立木茎干含水量的杨树生长状态评估模型构建. 林业科学, 57(5), 43-52.]
[22]	Luo DD, Wang CK, Jin Y (2017). Plant water-regulation strategies: isohydric versus anisohydric behavior. Chinese Journal of Plant Ecology, 41, 1020-1032.
	[罗丹丹, 王传宽, 金鹰 (2017). 植物水分调节对策: 等水与非等水行为. 植物生态学报, 41, 1020-1032.] DOI
[23]	Luo Z, Deng Z, Singha K, Zhang X, Liu N, Zhou Y, He X, Guan H (2020). Temporal and spatial variation in water content within living tree stems determined by electrical resistivity tomography. Agricultural and Forest Meteorology, 291, 108058. DOI: 10.1016/j.agrformet.2020.108058.
[24]	Maes WH, Achten WMJ, Reubens B, Raes D, Samson R, Muys B (2009). Plant-water relationships and growth strategies of Jatropha curcas L. seedlings under different levels of drought stress. Journal of Arid Environments, 73, 877-884.
[25]	Malavasi UC, Davis AS, de Matos Malavasi M (2016). Estimating water in living woody stems—A review. Cerne, 22, 415-422.
[26]	Martinez-Vilalta J, Anderegg WRL, Sapes G, Sala AN (2019). Greater focus on water pools may improve our ability to understand and anticipate drought-induced mortality in plants. New Phytologist, 223, 22-32. DOI PMID
[27]	Matheny AM, Bohrer G, Garrity SR, Morin TH, Howard CJ, Vogel CS (2015). Observations of stem water storage in trees of opposing hydraulic strategies. Ecosphere, 6, 1-13.
[28]	Miao YY (2011). Application of Impedance Spectroscopy in the Study on Leaf Water. Master degree dissertation, Beijing Forestry University, Beijing. 16-21.
	[苗银月 (2011). 阻抗谱法研究植物叶片水分关系. 硕士学位论文, 北京林业大学, 北京. 16-21.]
[29]	Nadler A, Raveh E, Yermiyahu U, Green SR (2003). Evaluation of TDR use to monitor water content in stem of lemon trees and soil and their response to water stress. Soil Science Society of America Journal, 67, 437-448.
[30]	Nakada R, Okada N, Nakai T, Kuroda K, Nagai S (2019). Water potential gradient between sapwood and heartwood as a driving force in water accumulation in wetwood in conifers. Wood Science and Technology, 53, 407-424. DOI
[31]	Olorunwa OJ, Adhikari B, Brazel S, Shi AN, Popescu SC, Popescu GV, Barickman TC (2022). Growth and photosynthetic responses of cowpea genotypes under waterlogging at the reproductive stage. Plants, 11, 2315. DOI: 10.3390/plants11172315.
[32]	Sheridan RA, Nackley LL (2022). Applying plant hydraulic physiology methods to investigate desiccation during prolonged cold storage of horticultural trees. Frontiers in Plant Science, 13, 818769. DOI: 10.3389/fpls.2022.818769.
[33]	Si JH, Feng Q, Zhang XY, Chang ZQ, Su YH, Xi HY (2007). Sap flow of Populus euphratica in a desert riparian forest in an extreme arid region during the growing season. Journal of Integrative Plant Biology, 49, 425-436.
[34]	Sim YS, Yim SH, Choo YS (2021). Photosynthetic and physiological characteristics of the evergreen Ligustrum japonicum and the deciduous Cornus officinalis. Journal of Plant Biology, 64, 73-85.
[35]	Steppe K, De Pauw DJW, Lemeur R, Vanrolleghem PA (2006). A mathematical model linking tree sap flow dynamics to daily stem diameter fluctuations and radial stem growth. Tree Physiology, 26, 257-273. PMID
[36]	Steppe K, Sterck F, Deslauriers A (2015). Diel growth dynamics in tree stems: linking anatomy and ecophysiology. Trends in Plant Science, 20, 335-343. DOI PMID
[37]	Su Y, Wang XY, Sun YQ, Wu HL (2022). Sap flow velocity in Fraxinus pennsylvanica in response to water stress and microclimatic variables. Frontiers in Plant Science, 13, 884526. DOI: 10.3389/fpls.2022.884526.
[38]	Tian H (2020). Study on Water Information Sensing Mechanism and Freeze-Thaw Detection Method of Standing Tree Stem. PhD dissertation, Beijing Forestry University, Beijing. 28-33.
	[田昊 (2020). 活立木茎干水分信息传感机理及冻融检测方法研究. 博士学位论文, 北京林业大学, 北京. 28-33.]
[39]	Tian H, Zhao YD, Gao C, Xie T, Zheng T, Yu CC (2022). Assessing the vitality status of plants: using the correlation between stem water content and external environmental stress. Forests, 13, 1198. DOI: 10.3390/f13081198.
[40]	Zhang PP (2020). Responses of Tree Non-structural Carbohydrates to Drought and the Regulation Mechanisms. PhD dissertation, East China Normal University, Shanghai. 17-26.
	[张佩佩 (2020). 树木非结构性碳水化合物对干旱的响应及其调控机制. 博士学位论文, 华东师范大学, 上海. 17-26.]
[41]	Zhao WQ, Xi BY, Liu JQ, Liu Y, Zou SY, Song WY, Chen LX (2021). Transpiration process and environmental response of poplar plantation under different irrigation conditions. Chinese Journal of Plant Ecology, 45, 370-382.
	[赵文芹, 席本野, 刘金强, 刘洋, 邹松言, 宋午椰, 陈立欣 (2021). 不同灌溉条件下杨树人工林蒸腾过程及环境响应. 植物生态学报, 45, 370-382.]
[42]	Zhao Y, Tian H, Han QL, Gu JH, Zhao YD (2021). Real-time monitoring of water and ice content in plant stem based on latent heat changes. Agricultural and Forest Meteorology, 307, 108475. DOI: 10.1016/j.agrformet.2021.108475.
[43]	Zhao YD, Gao C, Zhang X, Xu Q (2016). Non-destructive measurement of plant stem water content based on standing wave ratio. Transactions of the Chinese Society for Agricultural Machinery, 47, 310-316.
	[赵燕东, 高超, 张新, 徐强 (2016). 基于驻波率原理的植物茎体水分无损检测方法研究. 农业机械学报, 47, 310-316.]
[44]	Zhao YD, Gu JH, Zhao Y, Liu WP, Mi X (2022). Development of a stem water storage detection sensor using the dielectric properties of living standing trees. Transactions of the Chinese Society of Agricultural Engineering, 38, 38-46.
	[赵燕东, 顾家华, 赵玥, 刘卫平, 米雪 (2022). 基于活立木介电特性的茎干蓄水量检测传感器研制. 农业工程学报, 38, 38-46.]
[45]	Zhao YD, Liu YQ, Tian H, Zhao Y (2021). Freeze-thaw detection method of living standing wood based on stem moisture envelope analysis. Transactions of the Chinese Society for Agricultural Machinery, 52, 263-270.
	[赵燕东, 刘宇琦, 田昊, 赵玥 (2021). 基于茎干水分包络分析的活立木冻融检测方法. 农业机械学报, 52, 263-270.]
[46]	Zhao YD, Zheng Y, Zhou HY, Lin JH, Zhang X, Yu FM (2020). Research of intelligent irrigation control strategy based on stem water content of crabapple. Transactions of the Chinese Society for Agricultural Machinery, 51, 323-331.
	[赵燕东, 郑焱, 周海洋, 林剑辉, 张鑫, 于福满 (2020). 基于海棠茎干含水率的智能灌溉控制策略研究. 农业机械学报, 51, 323-331.]
[47]	Zhou H, Sun Y, Shan G, Grantz DA, Cheng Q, Schulze Lammers P, Damerow L, Wen B, Xue X, Chen B (2018). In situ measurement of stem water content and diurnal storage of an apricot tree with a high frequency inner fringing dielectric sensor. Agricultural and Forest Meteorology, 250-251, 35-46.
[48]	Zhu YF, Fan JZ, Xu Q, Xiang Y, Huang L, Wang ZY, Yan XF, Du TS, Cheng Q (2022). A new portable electrical impedance tomography system for measuring two-dimensional stem water content distribution. Agricultural and Forest Meteorology, 325, 109161. DOI: 10.1016/j.agrformet.2022.109161.

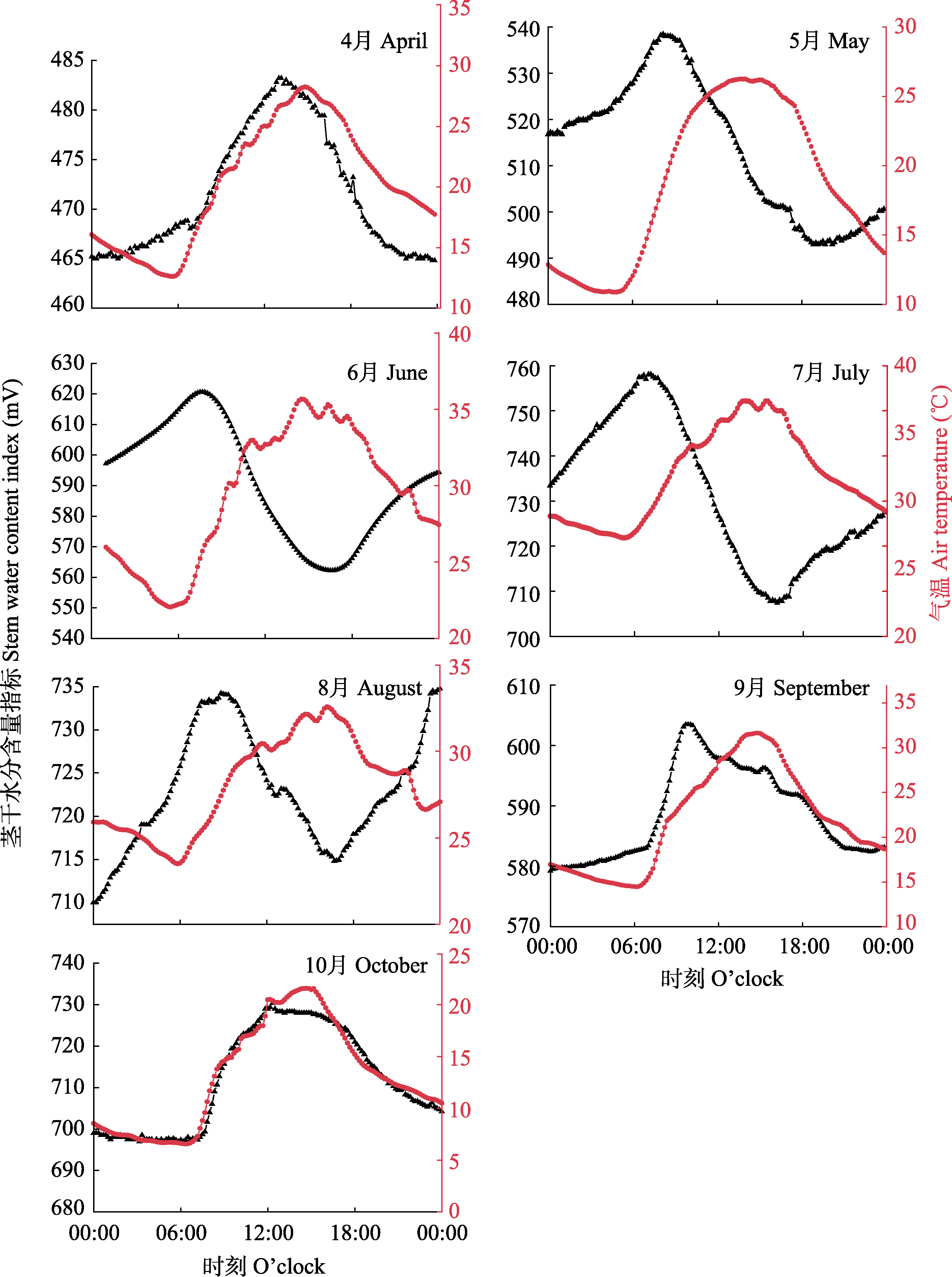

月份 Month	峰值时刻 Peak time	峰值 Peak value (mV)	谷值时刻 Valley time	谷值 Valley value (mV)	日极差 Extreme difference range (mV)	平均气温 Mean air temperature (℃)	最高气温 Maximum air temperature (℃)	日出时刻 Sunrise time
4月 April	13:00	483	-	-	19	18.4	26.5	05:31
5月 May	07:50	538	18:50	493	45	20.7	31.4	05:02
6月 June	06:30	621	15:30	577	62	29.2	35.6	04:44
7月 July	07:10	758	16:10	673	49	31.8	37.3	05:15
8月 August	08:50	735	16:40	714	26	28.1	32.8	05:28
9月 September	10:00	603	-	-	24	21.9	31.6	06:04
10月 October	12:20	730	-	-	33	13.1	21.5	06:26

月份 Month	峰值时刻 Peak time	峰值 Peak value (mV)	谷值时刻 Valley time	谷值 Valley value (mV)	日极差 Extreme difference range (mV)	平均气温 Mean air temperature (℃)	最高气温 Maximum air temperature (℃)	日出时刻 Sunrise time
4月 April	13:00	483	-	-	19	18.4	26.5	05:31
5月 May	07:50	538	18:50	493	45	20.7	31.4	05:02
6月 June	06:30	621	15:30	577	62	29.2	35.6	04:44
7月 July	07:10	758	16:10	673	49	31.8	37.3	05:15
8月 August	08:50	735	16:40	714	26	28.1	32.8	05:28
9月 September	10:00	603	-	-	24	21.9	31.6	06:04
10月 October	12:20	730	-	-	33	13.1	21.5	06:26

因子 Factor	简单相关系数 Simple correlation coefficient	直接通径系数 Direct path coefficient	间接通径系数 Indirect path coefficient
因子 Factor	简单相关系数 Simple correlation coefficient	直接通径系数 Direct path coefficient	T_s	T	RH	VPD	PAR	SM	合计 Total
T_s	0.404^**	-0.139	-	-0.084 8	0.004 4	-0.061 4	0.021 1	-0.050 0	-0.170 7
T	0.669^**	1.534	0.936 0	-	-0.293 0	1.287 0	0.785 4	0.681 1	3.396 5
RH	0.407^**	0.092	-0.002 9	-0.017 6	-	-0.061 3	-0.043 1	0.014 0	0.110 9
VPD	0.247^**	-1.041	-0.460 1	-0.873 4	0.693 4	-	-0.674 6	-0.216 5	-1.531 2
PAR	0.192^**	0.027	-0.004 1	0.013 8	-0.012 6	0.017 5	-	0.002 6	0.017 2
SM	0.580^**	0.115	0.041 4	0.051 1	0.017 5	0.023 9	0.010 9	-	0.144 8

因子 Factor	简单相关系数 Simple correlation coefficient	直接通径系数 Direct path coefficient	间接通径系数 Indirect path coefficient
因子 Factor	简单相关系数 Simple correlation coefficient	直接通径系数 Direct path coefficient	T_s	T	RH	VPD	PAR	SM	合计 Total
T_s	0.404^**	-0.139	-	-0.084 8	0.004 4	-0.061 4	0.021 1	-0.050 0	-0.170 7
T	0.669^**	1.534	0.936 0	-	-0.293 0	1.287 0	0.785 4	0.681 1	3.396 5
RH	0.407^**	0.092	-0.002 9	-0.017 6	-	-0.061 3	-0.043 1	0.014 0	0.110 9
VPD	0.247^**	-1.041	-0.460 1	-0.873 4	0.693 4	-	-0.674 6	-0.216 5	-1.531 2
PAR	0.192^**	0.027	-0.004 1	0.013 8	-0.012 6	0.017 5	-	0.002 6	0.017 2
SM	0.580^**	0.115	0.041 4	0.051 1	0.017 5	0.023 9	0.010 9	-	0.144 8

因子 Factor	简单相关系数 Simple correlation coefficient	直接通径系数 Direct path coefficient	间接通径系数 Indirect path coefficient
因子 Factor	简单相关系数 Simple correlation coefficient	直接通径系数 Direct path coefficient	T_s	T	RH	VPD	PAR	SM	WS	合计 Total
T_s	-0.713^**	-0.702	-	-0.470 3	0.327 8	-0.398 7	0.072 3	0.558 8	-0.153 7	-0.136 1
T	-0.855^**	0.561	0.375 9	-	-0.509 9	0.548 6	0.305 7	-0.283 9	0.280 5	0.716 9
RH	0.788^**	-0.037	0.017 3	0.033 6	-	0.034 7	0.021 5	-0.008 9	0.021 4	0.119 6
VPD	-0.857^**	-1.108	-0.629 3	-1.083 6	1.038 2	-	-0.648 2	0.415 5	-0.582 8	-1.490 2
PAR	-0.304^**	-0.068	0.007 0	-0.037 1	0.039 4	-0.039 8	-	0.002 5	-0.023 4	-0.051 4
SM	0.412^**	-0.273	0.217 3	0.138 1	-0.066 0	0.102 4	0.010 1	-	0.009 8	0.411 7
WS	-0.441^**	0.007	0.001 5	0.003 5	-0.000 4	0.003 7	0.002 4	-0.000 2	-	0.010 5
