不同地形条件下植被盖度信息提取技术研究

doi:10.3724/SP.J.1258.2013.00002

摘要/Abstract

摘要：

为系统地研究特定区域的植被盖度信息提取技术, 在不同的地形条件下, 比较了目前流行的多种高光谱遥感植被盖度提取方法。结果表明: 最优高光谱归一化植被指数(NDVI₁)的建模和验证精度均高于其他两种归一化植被指数(NDVI), 直接采用NDVI建立的回归模型对研究区植被盖度的估测能力低于像元二分模型; 阴坡的最佳模型为基于一阶微分的偏最小二乘回归模型(PLSR模型), 其建模决定系数(R²)为0.810, 均方根误差(RMSE)为6.29, 验证R²为0.773, RMSE为8.85; 阳坡的最佳模型为基于二阶微分的PLSR模型, 其建模R²为0.823, RMSE为6.04, 验证R²为0.801, RMSE为7.35; 平原的最佳模型为全受限的线性光谱混合分解模型(FCLS), 其验证R²为0.852, RMSE为5.86。

关键词: 干旱半干旱, 高光谱, 模型, 植被盖度

Abstract:

Aims We compared a variety of vegetation cover extraction methods by hyperspectral remote sensing that are currently popular. Our aims were to systematically study vegetation information extraction technology and provide a reference for further study of vegetation cover.
Methods The methods of vegetation index, dimidiate pixel model, principal component regression (PCR), partial least squares regression first order differential (PLSR) and linear spectral mixture decomposition model were used to extract vegetation information.
Important findings The vegetation cover estimation ability of dimidiate pixel models established by different normalized differential vegetation index (NDVI) was higher than that of the regression models established by NDVI directly. The optimization model for shady slopes was PLSR model based on the first order differential (FD) with modeling R² = 0.810, root mean square error (RMSE) = 6.29 and validation R² = 0.773, RMSE = 8.85. The optimization model for sunny slopes was PLSR model based on the second order differential (SD), with modeling R² = 0.823, RMSE = 6.04 and validation R² = 0.801, RMSE = 7.35. The optimization model for plains was full confine linear spectral mixture model (FCLS), with validation R² = 0.852, RMSE = 5.86.

Key words: arid and semi-arid, high spectrum, model, vegetation coverage

吴见, 刘民士, 李伟涛. 不同地形条件下植被盖度信息提取技术研究. 植物生态学报, 2013, 37(1): 18-25. DOI: 10.3724/SP.J.1258.2013.00002

WU Jian, LIU Min-Shi, LI Wei-Tao. Research on vegetation cover information extraction technologies under different terrain conditions. Chinese Journal of Plant Ecology, 2013, 37(1): 18-25. DOI: 10.3724/SP.J.1258.2013.00002

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.plant-ecology.com/CN/10.3724/SP.J.1258.2013.00002

https://www.plant-ecology.com/CN/Y2013/V37/I1/18

图/表 13

表1 不同归一化植被指数(NDVI)估测阴坡植被盖度的建模和验证结果

Table 1 Modeling and verification results of shady slope vegetation coverage estimation of different normalized differential vegetation index (NDVI)

	NIR (nm)	Red (nm)	建模 Modeling		验证 Verification
	NIR (nm)	Red (nm)	R²	RMSE	R²	RMSE
NDVI₁	823.65	701.55	0.656	10.73	0.638	11.74
NDVI₂	803.3	671.02	0.508	14.65	0.497	14.40
NDVI₃	TM4	TM3	0.483	15.01	0.476	15.29

表2 不同归一化植被指数(NDVI)估测阳坡植被盖度的建模和验证结果

Table 2 Modeling and verification results of sunny slope vegetation coverage estimation of different normalized differential vegetation index (NDVI)

	NIR (nm)	Red (nm)	建模 Modeling		验证 Verification
	NIR (nm)	Red (nm)	R²	RMSE	R²	RMSE
NDVI₁	823.65	701.55	0.731	8.85	0.711	9.94
NDVI₂	803.3	671.02	0.712	9.87	0.682	10.73
NDVI₃	TM4	TM3	0.713	9.96	0.708	10.69

表3 不同归一化植被指数(NDVI)估测平原植被盖度的建模和验证结果

Table 3 Modeling and verification results of plain vegetation coverage estimation of each normalized differential vegetation index (NDVI)

	NIR (nm)	Red (nm)	建模 Modeling		验证 Verification
	NIR (nm)	Red (nm)	R²	RMSE	R²	RMSE
NDVI₁	823.65	701.55	0.746	7.09	0.732	8.95
NDVI₂	803.3	671.02	0.723	7.84	0.706	10.47
NDVI₃	TM4	TM3	0.705	9.12	0.691	10.70

图1 最优高光谱归一化植被指数(NDVI1)的阴坡植被盖度预测值验证结果。RMSE, 均方根误差。

Fig. 1 Verification results of the prediction value of shady slope vegetation coverage by the optimal hyper spectral normalized differential vegetation index (NDVI1). RMSE, root mean square error.

表4 不同地形条件下不同归一化植被指数(NDVI)的像元二分模型验证结果

Table 4 Verification results of pixel binary model of different normalized differential vegetation index (NDVI) under different terrain conditions

	NDVI_soil	NDVI_veg	阴坡 Shady slope		阳坡 Sunny slope		平原 Plain
	NDVI_soil	NDVI_veg	R²	RMSE	R²	RMSE	R²	RMSE
NDVI₁	-0.10	0.64	0.656	10.38	0.730	9.15	0.758	8.06
NDVI₂	-0.06	0.62	0.537	12.69	0.717	10.06	0.725	9.90
NDVI₃	-0.02	0.55	0.504	14.17	0.684	11.23	0.712	10.34

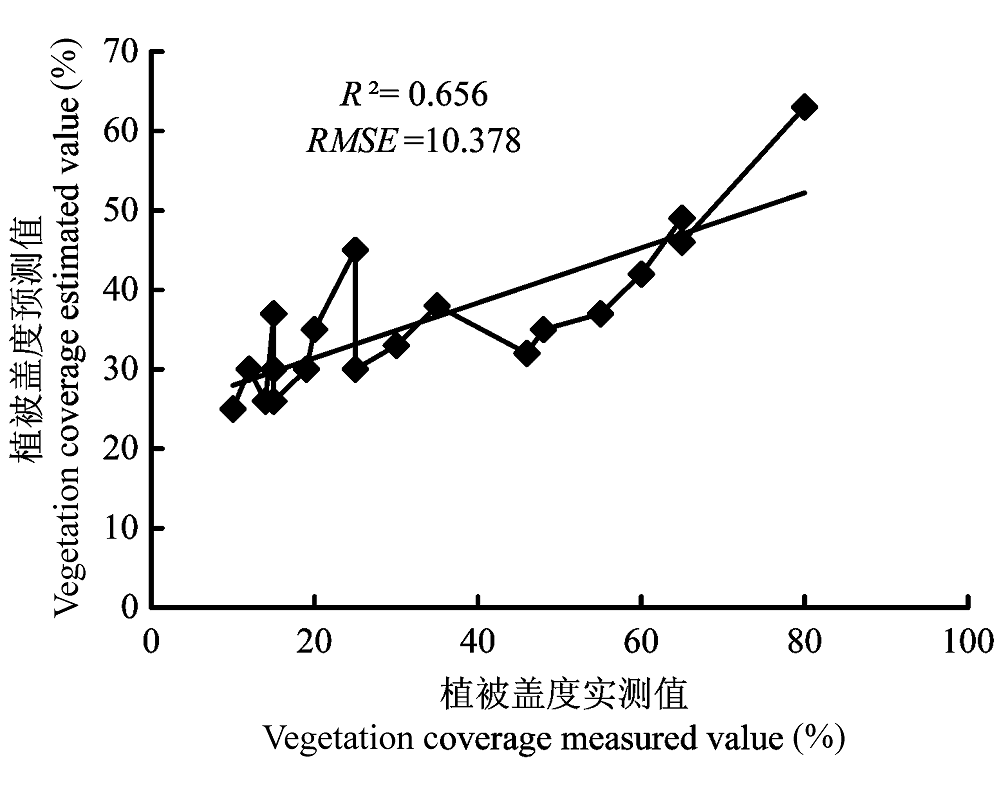

图2 基于最优高光谱NDVI(NDVI1)的像元二分模型阴坡植被盖度预测值验证结果。RMSE, 均方根误差。

Fig. 2 Verification results of the prediction value of shady slope vegetation coverage of pixel binary model based on the optimal high spectral NDVI (NDVI1). RMSE, root mean square error.

表5 不同光谱处理方法主成分回归(PCR)模型阴坡植被盖度建模和验证结果

Table 5 Modeling and verification results of shady slope vegetation coverage by principal component regression (PCR) models based on different spectral processing methods

光谱处理方法 Spectrum processing method	变量个数 Variable number	建模 Modeling		验证 Verification
光谱处理方法 Spectrum processing method	变量个数 Variable number	R²	RMSE	R²	RMSE
无变换数据 NO	8	0.693	11.28	0.667	11.95
一阶微分 FD	7	0.748	9.55	0.714	11.03
二阶微分 SD	9	0.732	10.17	0.708	11.15
包络线去除 CR	9	0.794	8.49	0.753	9.06

表6 不同光谱处理方法主成分回归(PCR)模型阳坡植被盖度建模和验证结果

Table 6 Modeling and verification results of sunny slope vegetation coverage by principal component regression (PCR) model based on different spectral processing methods

光谱处理方法 Spectrum processing method	变量个数 Variable number	建模 Modeling		验证 Verification
光谱处理方法 Spectrum processing method	变量个数 Variable number	R²	RMSE	R²	RMSE
无变换数据 NO	10	0.739	10.26	0.641	12.76
一阶微分 FD	12	0.766	9.14	0.685	11.57
二阶微分 SD	8	0.775	8.90	0.639	12.88
包络线去除 CR	10	0.753	9.67	0.650	12.34

表7 不同光谱处理方法主成分回归(PCR)模型平原植被盖度建模和验证结果

Table 7 Modeling and verification results of plain vegetation coverage by principal component regression (PCR) model based on different spectral processing methods

光谱处理方法 Spectrum processing method	变量个数 Variable number	建模 Modeling		验证 Verification
光谱处理方法 Spectrum processing method	变量个数 Variable number	R²	RMSE	R²	RMSE
无变换数据 NO	7	0.745	10.06	0.703	11.68
一阶微分 FD	10	0.759	9.71	0.726	10.04
二阶微分 SD	11	0.681	11.93	0.659	12.48
包络线去除 CR	9	0.730	10.51	0.717	11.45

表8 不同光谱处理方法偏最小二乘回归(PLSR)模型阴坡植被盖度建模和验证结果

Table 8 Modeling and verification results of shady slope vegetation coverage by partial least squares regression (PLSR) model based on different spectral processing methods

光谱处理方法 Spectrum processing method	变量个数 Variable number	建模 Modeling		验证 Verification
光谱处理方法 Spectrum processing method	变量个数 Variable number	R²	RMSE	R²	RMSE
无变换数据 NO	9	0.742	10.64	0.718	11.34
一阶微分 FD	13	0.810	6.29	0.773	8.85
二阶微分 SD	10	0.794	7.78	0.761	9.16
包络线去除 CR	8	0.726	10.15	0.692	11.54

表9 不同光谱处理方法偏最小二乘回归(PLSR)模型阳坡植被盖度建模和验证结果

Table 9 Modeling and verification results of sunny slope vegetation coverage by partial least squares regression (PLSR) model based on different spectral processing methods

光谱处理方法 Spectrum processing method	变量个数 Variable number	建模 Modeling		验证 Verification
光谱处理方法 Spectrum processing method	变量个数 Variable number	R²	RMSE	R²	RMSE
无变换数据 NO	11	0.783	8.18	0.756	9.84
一阶微分 FD	7	0.790	7.96	0.758	9.23
二阶微分 SD	9	0.823	6.04	0.801	7.35
包络线去除 CR	8	0.731	10.27	0.692	11.49

表10 不同光谱处理方法偏最小二乘回归(PLSR)模型平原植被盖度建模和验证结果

Table 10 Modeling and verification results of plain vegetation coverage by partial least squares regression (PLSR) model based on different spectral processing methods

光谱处理方法 Spectrum processing method	变量个数 Variable number	建模 Modeling		验证 Verification
光谱处理方法 Spectrum processing method	变量个数 Variable number	R²	RMSE	R²	RMSE
无变换数据 NO	10	0.765	8.90	0.743	10.21
一阶微分 FD	8	0.804	7.22	0.809	6.95
二阶微分 SD	7	0.836	6.13	0.760	8.57
包络线去除 CR	11	0.773	9.15	0.739	10.38

表11 不同地形条件下全受限的LSMM (FCLS)和非受限的LSMM (LS)模型分解的植被分量精度验证结果

Table 11 Accuracy verification results of vegetation component unmixed by full confining linear spectral mixture model (FCLS) and linear spectral mixture model (LS) under different terrain conditions

分解模型 Decomposition model	验证 Verification
	阴坡 Shady slope		阳坡 Sunny slope		平原 Plain
	R²	RMSE	R²	RMSE	R²	RMSE
LS	0.618	14.59	0.709	11.92	0.746	10.37
FCLS	0.653	12.87	0.761	8.45	0.852	5.86
