藏北高原植被物候时空动态变化的遥感监测研究

doi:10.3724/SP.J.1258.2011.00853

植物生态学报 ›› 2011, Vol. 35 ›› Issue (8): 853-863.DOI: 10.3724/SP.J.1258.2011.00853

所属专题：青藏高原植物生态学：遥感生态学

藏北高原植被物候时空动态变化的遥感监测研究

宋春桥¹^,²^,⁴, 游松财³^,^*(), 柯灵红¹^,², 刘高焕¹, 钟新科¹^,²

¹中国科学院地理科学与资源研究所资源与环境信息系统国家重点实验室, 北京 100101
²中国科学院研究生院, 北京 100049
³中国农业科学院农业环境与可持续发展研究所, 北京 100081
⁴香港中文大学地理与资源管理系, 香港

收稿日期:2011-03-18 接受日期:2011-05-17 出版日期:2011-03-18 发布日期:2011-07-28
通讯作者: 游松财
作者简介:*E-mail: yousc@ieda.org.cn

Spatio-temporal variation of vegetation phenology in the Northern Tibetan Plateau as detected by MODIS remote sensing

SONG Chun-Qiao¹^,²^,⁴, YOU Song-Cai³^,^*(), KE Ling-Hong¹^,², LIU Gao-Huan¹, ZHONG Xin-Ke¹^,²

¹State Key Laboratory of Resources and Environmental Information System, Institute of Geographic Sciences and Natural Resources Research, Chinese Academy of Sciences, Beijing 100101, China
²Graduate University of Chinese Academy of Sciences, Beijing 100049, China
³Institute of Environment and Sustainable Development in Agriculture, Chinese Academy of Agricultural Sciences, Beijing 100081, China
⁴The Department of Geography and Resource Management, The Chinese University of Hong Kong, Hong Kong, China

Received:2011-03-18 Accepted:2011-05-17 Online:2011-03-18 Published:2011-07-28
Contact: YOU Song-Cai

摘要/Abstract

摘要：

利用遥感数据提取的植被物候格局及时空变化特征能很好地反映区域尺度上植被对全球变化的响应。目前关于青藏高原地区植被物候的少量报道基本上是基于物候站点的观测记录展开分析的。该文基于非对称高斯拟合算法重建了藏北高原2001-2010年的MODIS EVI (增强型植被指数)时间序列影像, 然后利用动态阈值法提取整个藏北高原2001-2010年植被覆盖的重要物候信息, 包括植被返青期、枯黄期与生长季长度, 分析了植被物候10年间平均状况的空间分异特征以及年际变化情况, 并结合站点观测记录分析了气温和降水对植被物候变化的影响, 结果表明: (1)藏北高原植被返青期在空间上表现出从东南到西北逐渐推迟的水平地带性与东南高山峡谷区的垂直地带性相结合的特征, 近60%区域的植被返青期提前, 特别是高山地区; (2)植被枯黄期的年际变化不太明显, 大部分地区都表现为自然的年际波动; (3)生长季长度的时空变化特征由植被返青期和枯黄期二者决定, 但主要受返青期提前影响, 大部分地区生长季长度延长; (4)研究区内不同气候区划植被物候的年际变化以那曲高山谷地亚寒带半湿润区和青南高原亚寒带半干旱区的植被返青期提前和生长季延长程度最为明显; (5)基于气象台站数据分析气候变化对物候的影响发现, 返青期提前及生长季延长主要受气温升高的影响, 与降水的关系尚不明确。

关键词: 动态阈值, MODIS, 藏北高原, 物候, 时空变化

Abstract:

Aim Estimating regional variation in vegetation phenology from time-series remote sensing data is important in global climate change studies. However, there are few studies on vegetation phenology for the Qinghai-Tibet Plateau and most are based on field records of stations.

Methods We utilized the dynamic threshold method to explore vegetation phenological metrics (greenup date, length of season and senescence date) of typical grassland in the Northern Tibetan Plateau. We used time-series TERRA/MODIS EVI data for 2001-2010 reconstructed by the asymmetric Gaussian function fitting method to analyze spatial pattern and differentiation of vegetation phenology and its inter-annual variation and to examine the relationship between phenological variation and climate changes.

Important findings The spatial pattern of date of vegetation greenup was embodied by transition from southeast to northwest and vertical zonation in the mountainous topography of the southeast. The vegetation greenup date in approximately sixty percent of the northern Tibetan Plateau had advanced, especially in high mountains. Inter- annual variation of vegetation senescence date was not obvious, and most of the region had natural inter-annual fluctuations. The variation of growing season length is influenced by greenup and senescence dates, but was chiefly affected by advanced greenup date lengthening the growing season. Among the four different climatic zones in the study area, the mountain and valley Nagqu sub-arctic and sub-humid zone and the southern Qinghai sub-arctic and semi-arid zone had the most apparent advanced greenup date and prolonged growing season. Based on measured data from weather stations, increased temperature appears to be a critical factor contributing to earlier greenup and prolonged growing season; however, the relationship between precipitation fluctuations and phenological variation was unclear.

Key words: dynamic threshold, MODIS, Northern Tibetan Plateau, phenology, spatio-temporal change

宋春桥, 游松财, 柯灵红, 刘高焕, 钟新科. 藏北高原植被物候时空动态变化的遥感监测研究. 植物生态学报, 2011, 35(8): 853-863. DOI: 10.3724/SP.J.1258.2011.00853

SONG Chun-Qiao, YOU Song-Cai, KE Ling-Hong, LIU Gao-Huan, ZHONG Xin-Ke. Spatio-temporal variation of vegetation phenology in the Northern Tibetan Plateau as detected by MODIS remote sensing. Chinese Journal of Plant Ecology, 2011, 35(8): 853-863. DOI: 10.3724/SP.J.1258.2011.00853

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.plant-ecology.com/CN/10.3724/SP.J.1258.2011.00853

https://www.plant-ecology.com/CN/Y2011/V35/I8/853

图/表 7

图1 研究区的地理位置。

Fig. 1 Geographic location of the study area.

图2 基于像元时间序列曲线的物候指标提取原理。NDVI, 归一化植被指数。

Fig. 2 Principle of extracting phenological metrics based on time-series curve of pixels. NDVI, normalized difference vegetation index.

图3 2001-2010年藏北高原植被的平均返青期(A)及其年际变化(B)。

Fig. 3 Average greenup date of growing season (A) and inter-annual variation (B) of vegetation in Northern Tibetan Plateau between 2001-2010.

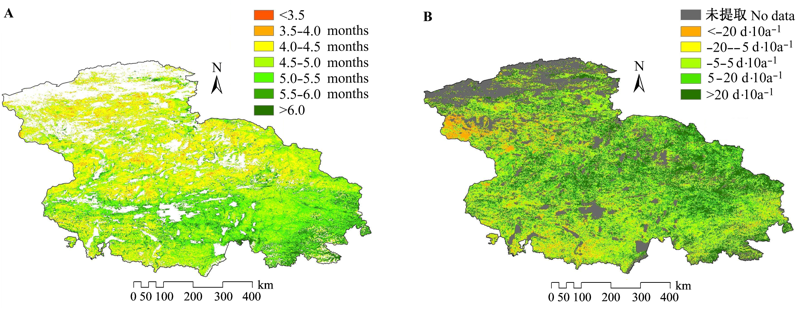

图5 2001-2010年藏北高原植被平均生长季长度(A)及其年际变化(B)。

Fig. 5 Average length of growing season (A) and its inter-annual variation (B) of vegetation in Northern Tibetan Plateau between 2001-2010.

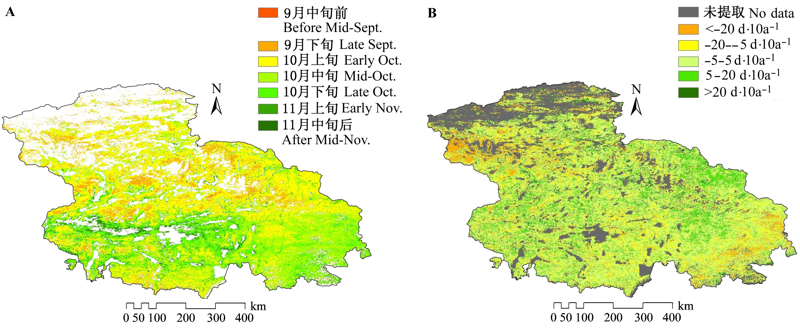

图4 2001-2010年藏北高原植被平均枯黄期期(A)及其年际变化(B)。

Fig. 4 Average senescence date of growing season (A) and its inter-annual variation (B) of vegetation in Northern Tibetan Plateau between 2001-2010.

图6 藏北高原不同气候区植被物候的年际变化。DOY, 年序日。A、B、C、D分别为气候区划昆仑高山亚寒带干旱区、羌塘高原湖盆亚寒带半干旱区、那曲高山谷地亚寒带半湿润区和青南高原亚寒带半干旱区的植被物候。

Fig. 6 Inter-annual changes of vegetation phenology in four different climate zones over Northern Tibetan Plateau. DOY, day of year. A, B, C and D show vegetation phenology in four climate zones which respectively refer to Kunlun mountain subfrigid and arid zone, Qiangtang plateau and lake-basin subfrigid and semi-arid zone, Nagqu mountain and valley subfrigid and semi-humid zone, and south Qinghai plateau subfrigid and semi-arid zone, respectively.

图7 藏北高原各气象站气温和降水的年际变化。

Fig. 7 Inter-annual changes of temperature and precipitation in different weather stations in Northern Tibetan Plateau.

参考文献 28

[1]	Chen XQ (陈效逑), Li J (李倞) (2009). Relationships between Leymus chinensis phenology and meteorological factors in Inner Mongolia grasslands . Acta Ecologica Sinica (生态学报), 29,5280-5290. (in Chinese with English abstract)
[2]	Cihlar J, Ly H, Li ZQ, Chen J, Pokrant H, Huang FT (1997). Multitemporal, multichannel AVHRR data sets for land biosphere studies―artifacts and corrections. Remote Sensing of Environment, 60,35-57. DOI URL
[3]	Cleland EE, Chiariello NR, Loarie SR, Mooney HA, Field CB (2006). Diverse responses of phenology to global changes in a grassland ecosystem. Proceedings of the National Academy of Sciences of the United States of America, 103,13740-13744. DOI URL PMID
[4]	Fang XQ (方修琦), Yu WH (余卫红) (2002). Progress in the studies on the phenological responding to global warming. Advance in Earth Sciences (地球科学进展), 17,714-719. (in Chinese with English abstract)
[5]	Franks SJ, Sim S, Weis AE (2007). Rapid evolution of flowering time by an annual plant in response to a climate fluctuation. Proceedings of the National Academy of Sciences of the United States of America, 104,1278-1282. DOI URL PMID
[6]	Jönsson P, Eklundh L (2002). Seasonality extraction by function fitting to time-series of satellite sensor data. IEEE Transactions on Geoscience and Remote Sensing, 40,1824-1832. DOI URL
[7]	Jönsson P, Eklundh L (2004). TIMESAT―a program for analyzing time-series of satellite sensor data. Computers & Geosciences, 30,833-845.
[8]	Li HY (李杭燕), Xie YW (颉耀文), Ma MG (马明国) (2009). Reconstruction of temporal NDVI dataset: evaluation and case study . Remote Sensing Technology and Application (遥感技术与应用), 24,596-602. (in Chinese with English abstract)
[9]	Li ZG (李正国), Yang P (杨鹏), Zhou QB (周清波), Wang YL (王仰麟), Wu WB (吴文斌), Zhang L (张莉), Zhang XF (张小飞) (2009). Research on spatiotemporal pattern of crop phenological characteristics and cropping system in North China based on NDVI time series data . Acta Ecologica Sinica (生态学报), 29,6216-6226. (in Chinese with English abstract)
[10]	Liu SZ (刘淑珍), Zhou L (周麟), Qiu CS (仇崇善) (1999). Studies on Grassland Degradation and Desertification of Nagqu Prefecture in Tibet Autonomous Region (西藏自治区那曲地区草地退化沙化研究). Tibet People’s Press, Lasha.12-19. (in Chinese with English abstract)
[11]	Liu XD, Chen BD (2000). Climatic warming in the Tibetan Plateau during recent decades. International Journal of Climatology, 20,1729-1742.
[12]	Liu XS (刘雪松), Ma YC (马玉才), La B (拉巴) (2003). Compartment of Pasture Husbandry and Climate Over Nagqu Area (那曲地区牧业气候区划). Meteorological Press, Beijing.107-156. (in Chinese)
[13]	Lucht W, Prentice IC, Myneni RB, Sitch S, Friedlingstein P, Cramer W, Bousquet P, Buermann W, Smith B (2002). Climatic control of the high-latitude vegetation greening trend and Pinatubo effect. Science, 296,1687-1689. URL PMID
[14]	Myneni RB, Keeling CD, Tucker CJ, Asrar G, Nemani RR (1997). Increased plant growth in the Northern high latitudes from 1981 to 1991. Nature, 386,698-702. DOI URL
[15]	Nezlin NP, Kostianoy AG, Li BL (2005). Inter-annual variability and interaction of remote-sensed vegetation index and atmospheric precipitation in the Aral Sea region. Journal of Arid Environments, 62,677-700. DOI URL
[16]	Qi RY (祁如英), Wang QL (王启兰), Shen HY (申红艳) (2006). Analysis of phenological phase variation of herbage plants over Qinghai and impact of meteorological conditions. Meteorological Science and Technology (气象科技), 34,306-310. (in Chinese with English abstract)
[17]	Qiu D (邱丹), Zhang GS (张国胜) (2000). Influence of Qinghai-Tibet Plateau climate variation on cold plateau grassland ecologic system in southern Qinghai area. Qinghai Science and Technology (青海科技), 7(2),23-25. (in Chinese with English abstract)
[18]	Tateishi R, Ebata M (2004). Analysis of phonological change patterns using 1982-2000 advanced very high resolution radiometer (AVHRR) data. International Journal of Remote Sensing, 25,2287-2300. DOI URL
[19]	Tucker CJ, Dregne HE, Newcomb WW (1994). AVHRR data sets for determination of desert spatial extent. International Journal of Remote Sensing, 15,3547-3565. DOI URL
[20]	Wang H (王宏), Li XB (李晓兵), Li X (李霞), Ying G (莺歌), Fu N (符娜) (2007). The variability of vegetation growing season in the Northern China based on NOAA NDVI and MSAVI from 1982 to 1999. Acta Ecologica Sinica (生态学报), 27,504-515. (in Chinese with English abstract)
[21]	Wang Q, Tenhunen JD (2004). Vegetation mapping with multitemporal NDVI in North Eastern China Transect (NECT) . International Journal of Applied Earth Observation and Geoinformation, 6,17-31. DOI URL
[22]	Wu BF (吴炳方), Zhang F (张峰), Liu CL (刘成林), Zhang L (张磊), Luo ZM (罗治敏) (2004). An integrated method for crop condition monitoring. Journal of Remote Sensing (遥感学报), 8,498-514. (in Chinese with English abstract) DOI URL
[23]	Yao TD (姚檀栋), Liu XD (刘晓东), Wang NL (王宁练) (2000). Study on the magnitude of climate change in Qinghai-Tibet Plateau. Chinese Science Bulletin (科学通报), 45,98-106. (in Chinese)
[24]	Zhang GS (张国胜), Li L (李林), Wang QC (汪青春), Li XL (李希来), Xu WX (徐维新), Dong LX (董立新) (1999). Effects of climatic changes of south Qinghai plateau on the alpine meadow. Acta Prataculturae Sinica (草业学报), 8,1-10. (in Chinese with English abstract)
[25]	Zhang TZ (张天增), Yao ZF (姚祖芳) (1992). Land Resources in Nagqu of Tibet (西藏那曲地区土地资源). China Agriculture Press, Beijing.191-251. (in Chinese)
[26]	Zhang XX (张雪霞), Ge QS (葛全胜), Zheng JY (郑景云) (2005). Impacts and lags of global warming on vegetation in Beijing for the last 50 years based on remotely sensed data and phonological information. Chinese Journal of Ecology (生态学杂志), 24,123-130. (in Chinese with English abstract)
[27]	Zheng JY (郑景云), Ge QS (葛全胜), Hao ZX (郝志新) (2002). Effect of climate warming on plant phenology change in China in last 40 years. Chinese Science Bulletin (科学通报), 47,1582-1587. (in Chinese)
[28]	Zheng JY (郑景云), Yin YH (尹云鹤), Li BY (李炳元) (2010). A new scheme for climate regionalization in China. Acta Geographica Sinica (地理学报), 65,3-13. (in Chinese with English abstract) DOI URL
