城郊近河退耕地野大豆群落生态位和种间联结

doi:10.17521/cjpe.2025.0018

摘要/Abstract

摘要： 近年来野大豆(Glycine soja)资源在人类影响下急剧减少, 探究野大豆在退耕地群落中所处的地位, 揭示它与其他物种的种间联结特征及其所处群落的稳定性, 可为野大豆的资源保护以及群落恢复提供理论基础。采用样方法(1 m × 1 m)对沈阳市郊3个近河退耕地自然演替的草本植物群落进行了调查, 分析了主要物种的重要值、生态位宽度、生态位重叠度和种间联结性, 评价了群落稳定性。结果表明: 调查的群落中共出现20科51属65种草本植物, 其中一年生植物占52.31%。野大豆是群落中最占优势的物种, 具有最大的频度(97.18%)、盖度(平均49.75%)、重要值(33.28)和生态位宽度(B_L = 101.92, B_S = 4.75)。野大豆和矮蒿(Artemisia lancea)的资源利用重叠度(O_ik)值(0.35)和生态位相似性(0.30)最大, 与贼小豆(Vigna minima)的生态位重叠度也较大(O_ik = 0.34)。χ²检验和联结系数(AC)分析表明野大豆与矮蒿为显著正联结, 与葎草(Humulus scandens)为极显著负联结; 相关系数结果表明野大豆和贼小豆之间为正联结, 与狗尾草(Setaria viridis)、红蓼(Persicaria orientalis)、稗(Echinochloa crusgalli)为极显著负联结。群落中主要植物之间的总体生态位重叠值较低(0-0.35); 总体关联性的方差比率(VR)为0.87, W检验值为122.16, 表明群落中主要植物间呈负联结关系; χ²检验、AC和Spearman秩相关系数结果也均显示群落中主要物种间以负联结为主。M. Godron法分析的交点坐标与稳定点坐标之间的欧式距离较远, 表明目前群落的稳定性较差, 但退耕时间长的群落的欧式距离较退耕时间短的近, 说明退耕时间越长群落的稳定性越高。

关键词: 近河退耕地, 野大豆, 群落物种组成, 生态位, 种间联结性, 群落稳定性

Abstract:

Aims In recent years, resources of Glycine soja had decreased dramatically under human disturbance. This study aimed to reveal the resource recovery and role of Glycine soja in communities on abandoned farmland, evaluate its interspecific association with other species and the stability of the community, and provide a theoretical basis for resource conservation and community restoration of Glycine soja.

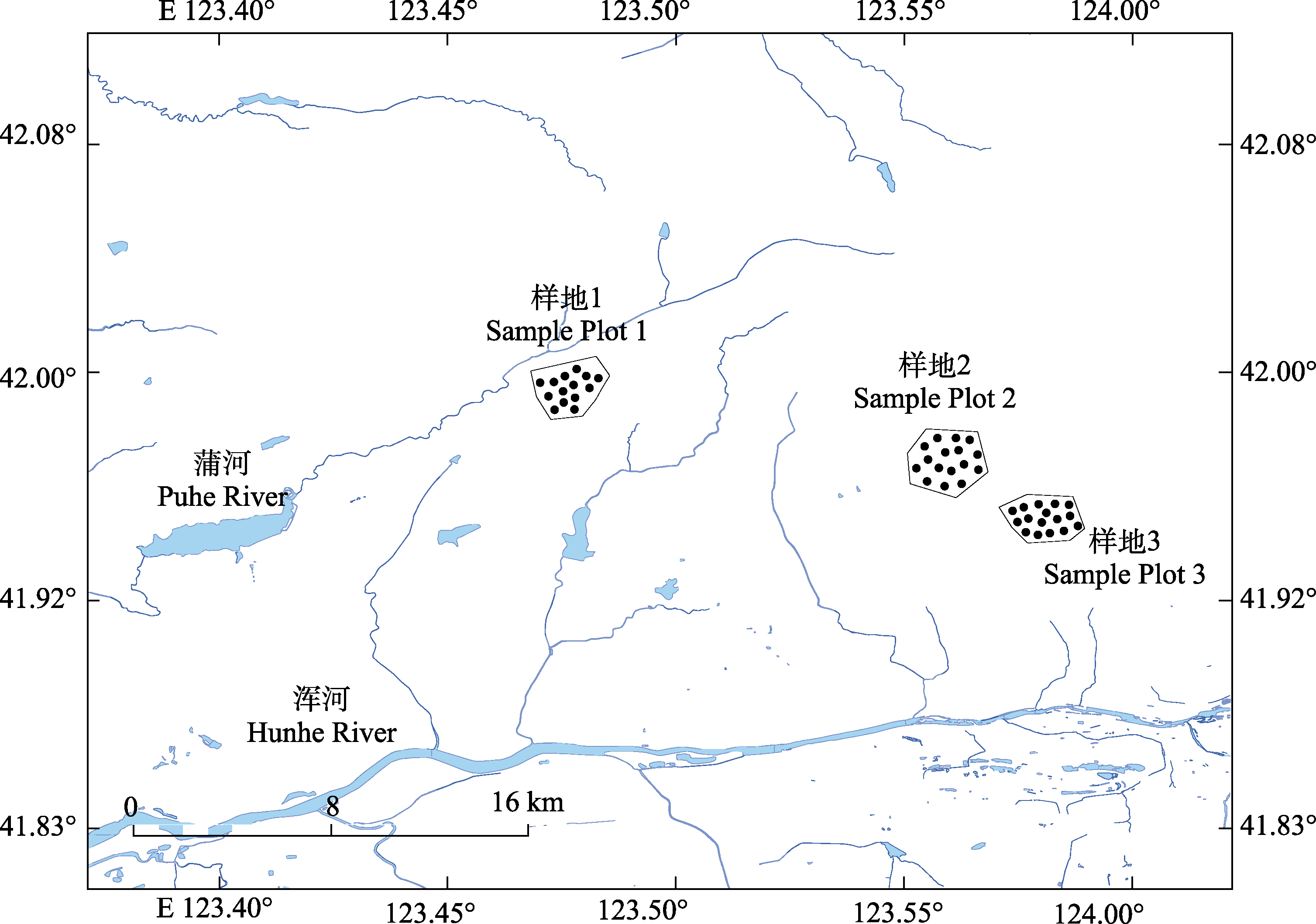

Methods In this paper, the quadrat method with 1 m × 1 m was used to investigate the herb communities on three abandoned farmlands near the river located in the suburbs of Shenyang City. The importance value, ecological niche width, the degree of ecological overlap and interspecific association of the major herbaceous plants in the communities, as well as the stability of the community were analyzed.
Important findings There were 65 species of herbaceous plants belonging to 20 families and 51 genera in the investigated community, among which annual plants accounted for 52.31%. Glycine soja was the most dominant species in the community, with the highest frequency (97.18%), coverage (49.75% on average), importance value (33.28) and niche width (B_L = 101.92, B_S = 4.75). The resource use overlap (O_ik) value (0.35) and niche similarity (0.30) between Glycine soja and Artemisia lancea were the largest, and the niche overlap between Glycine soja and Vigna minima was also large (O_ik = 0.34). χ² test and association coefficient (AC) results showed that there was a significant positive association between Glycine soja and Artemisia lancea, and a very significant negative association between Glycine soja and Humulus scandens. The correlation coefficient showed that Glycine soja had a positive association with Vigna minima, but a highly significant negative association with Setaria viridis, Persicaria orientalis and Echinochloa crusgalli. The overall niche overlap values of the important plants in the community were low (0-0.35). The variance ratio (VR) and statistic (W) of the total association were 0.87 and 122.16, indicating a negative association among the major plants in the community. The results of χ² test, AC, and Spearman rank correlation coefficient showed that there were mainly negative associations among species. The Euclidean distance between the coordinates of the intersection point and the coordinates of the stable point analyzed by M. Godron method was far, indicating that the community stability was relatively poor. However, the Euclidean distance of the community with a longer period of returning farmland to forest was closer than that of the community with a shorter period, suggesting that community stability increases with longer abandonment times.

Key words: abandoned farmland near river, Glycine soja, community species composition, ecological niche, interspecific association, community stability

郑立媛, 徐茜竹, 尹嘉淇, 孙小雯, 王艳. 城郊近河退耕地野大豆群落生态位和种间联结. 植物生态学报, 2025, 49(10): 1685-1697. DOI: 10.17521/cjpe.2025.0018

ZHENG Li-Yuan, XU Xi-Zhu, YIN Jia-Qi, SUN Xiao-Wen, WANG Yan. Niche and interspecific associations of Glycine soja community on abandoned farmland near a river in suburban. Chinese Journal of Plant Ecology, 2025, 49(10): 1685-1697. DOI: 10.17521/cjpe.2025.0018

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.plant-ecology.com/CN/10.17521/cjpe.2025.0018

https://www.plant-ecology.com/CN/Y2025/V49/I10/1685

图/表 7

参考文献 46

[1]	Bishara AJ, Hittner JB (2012). Testing the significance of a correlation with nonnormal data: comparison of Pearson, Spearman, transformation, and resampling approaches. Psychological Methods, 17, 399-417. DOI PMID
[2]	Chen JH, Liu XL, He F, Liu SR (2010). Niche characteristics of dominant woody populations in Quercus aquifoliodes shrub community in Balangshan Mountain in Wolong Nature Reserve. Scientia Silvae Sinicae, 46(3), 23-28.
	[陈俊华, 刘兴良, 何飞, 刘世荣 (2010). 卧龙巴朗山川滇高山栎灌丛主要木本植物种群生态位特征. 林业科学, 46(3), 23-28.]
[3]	Cheng YS, Wang TY, Xi WM, Yan M (2024). Ecological niches and interspecific associations of dominant species within an endangered Gymnadenia conopsea (L.) R. Br. community. Plant Science Journal, 42, 444-453.
	[程永生, 王甜语, 奚为民, 闫明 (2024). 濒危植物手参生存群落主要物种的生态位特征及其种间联结. 植物科学学报, 42, 444-453.]
[4]	Deng XL, Cao YS, Liang Q, Long WW (2016). Study on niche of dominant species at arbor layer in montane elfin forest of Jinggangshan. Journal of Plant Resources and Environment, 25(1), 88-93.
	[邓贤兰, 曹裕松, 梁琴, 龙婉婉 (2016). 井冈山山顶矮林乔木层优势种的生态位研究. 植物资源与环境学报, 25(1), 88-93.]
[5]	Ding SY, Guo YL, Liang GF (2012). Study on the species diversity of different habitat types in the middle Luo River riparian zone. Journal of Henan University (Natural Science), 42, 613-619.
	[丁圣彦, 郭屹立, 梁国付 (2012). 洛河中游河岸带不同生境类型中物种多样性研究. 河南大学学报(自然科学版), 42, 613-619.]
[6]	Falinska K (1999). Seed bank dynamics in abandoned meadows during a 20-year period in the Białowieża National Park. Journal of Ecology, 87, 461-475. DOI URL
[7]	Feng YL (2023). Characteristics of Secondary Successive Vegetation and Soil Changes in High Altitude Agricultural Areas in Eastern Qinghai Province. Master degree dissertation, Qinghai Normal University, Xining.
	[冯雨露 (2023). 青海东部农业区退耕地次生演替植被特征及其生态过程. 硕士学位论文, 青海师范大学, 西宁.]
[8]	Godron M (1972). Some aspects of heterogeneity in grasslands of Cantal. Statistical Ecology, 3, 397-415.
[9]	Grinnell J (1917). The niche-relationships of the California Thrasher. The Auk, 34, 427-433. DOI URL
[10]	Guo JQ, Chen JC, Huang X, Huang JL, Zhao LY, Li ZH (2021). Niche characteristics and interspecific associations of the dominant species of the communities invaded by Alternanthera philoxeroides. Ecology and Environmental Sciences, 30, 1607-1616.
	[郭佳琦, 陈俊辰, 黄旬, 黄佳乐, 赵丽娅, 李兆华 (2021). 喜旱莲子草入侵群落主要物种生态位和种间联结研究. 生态环境学报, 30, 1607-1616.] DOI
[11]	Guo ZL, Ma YD, Zheng JP, Liu WD, Jin ZF (2004). Biodiversity of tree species, their populations’ spatial distribution pattern and interspecific association in mixed deciduous broadleaved forest in Changbai Mountains. Chinese Journal Applied Ecology, 15, 2013-2018.
	[郭忠玲, 马元丹, 郑金萍, 刘万德, 金哲峰 (2004). 长白山落叶阔叶混交林的物种多样性、种群空间分布格局及种间关联性研究. 应用生态学报, 15, 2013-2018.]
[12]	Huang XT, Wang SX, Huang BJ, Yin H, Cui KF, Zhao W, Fan YG, Gu DF (2015). Analyses of community stability and inter-specific associations between the rare plant Phyllitis scolopendrium and its associated species. Acta Ecologica Sinica, 35, 80-90.
	[黄祥童, 王绍先, 黄炳军, 尹航, 崔凯峰, 赵伟, 范宇光, 顾德峰 (2015). 珍稀植物对开蕨与其伴生物种的联结性及群落稳定性. 生态学报, 35, 80-90.]
[13]	Lei J, Cheng XP, Xue C, Liu HM, Zhao YH, Xiao MM (2024). The characteristics and stability of plant communities in the northern desert area of the middle reaches of Heihe River Basin. Journal of Desert Research, 44(6), 187-194.
	[雷军, 程新平, 薛春, 刘红梅, 赵玉红, 肖明敏 (2024). 黑河流域中游北部荒漠区植物群落特征与稳定性. 中国沙漠, 44(6), 187-194.] DOI
[14]	Levins R (1968). Evolution in Changing Environments: Some Theoretical Explorations. Princeton University Press, Princeton.
[15]	Li CL, Zhang F, Wang LD, Zhao HR, Zhao XC, Zhang HP (2024). Soil microbial community structure and functional diversity character of abandoned farmland in Minqin oasis. Environmental Science, 45, 1821-1829.
	[李常乐, 张富, 王理德, 赵赫然, 赵学成, 张恒平 (2024). 民勤绿洲退耕地土壤微生物群落结构与功能多样性特征. 环境科学, 45, 1821-1829.]
[16]	Li FS (1993). Studies on the ecological and geographical distribution of the Chinese resources of wild soybean (G. soja). Scientia Agricultura Sinica, 26(2), 47-55.
	[李福山 (1993). 中国野生大豆资源的地理分布及生态分化研究. 中国农业科学, 26(2), 47-55.]
[17]	Li HZ, Dang H, Xu JS, Chen Y (2020). Interspecific associations of the main understory herbaceous communities across altitudinal gradients on the Taibai Mountain by different approaches. Journal of Northwest Forestry University, 35(6), 66-73.
	[李怀珠, 党晗, 许金石, 陈煜 (2020). 不同方法研究太白山不同海拔梯度林下主要草本植物群落的种间关联. 西北林学院学报, 35(6), 66-73.]
[18]	Li KJ, Cai C, Ruan GM, Ling SW, Pan BZ, Zhou JG, Liu JF, Zheng SQ (2025). Interspecific association of main tree species in Ormosia microphylla survival community and its community stability. Chinese Journal of Applied Ecology, 36, 427-436.
	[李珂佳, 蔡晨, 阮广鸣, 凌书伟, 潘标志, 周家贵, 刘金福, 郑世群 (2025). 小叶红豆群落主要树种的种间关系及群落稳定性. 应用生态学报, 36, 427-436. DOI
[19]	Liu H, Du RW, Wang Y, Chen YL, Wu YK, Yuan L (2017). Effects of Eupatorium adenophorum on interspecific association and the stability of companion species in Liangshan Prefecture of Sichuan Province. Acta Ecologica Sinica, 37, 5031-5038.
	[刘海, 杜如万, 王勇, 陈玉蓝, 吴叶宽, 袁玲 (2017). 紫茎泽兰对四川省凉山州共生植物种间联结性及稳定性的影响. 生态学报, 37, 5031-5038.]
[20]	Long ZY, Wang ZC, Zhao R, Liu B, Chen GX (2024). Niches and community stability of dominant herbaceous species in the forest and creek ecotone of Dehang Geopark. Acta Botanica Boreali-Occidentalia Sinica, 44, 1954-1964.
	[龙姿羽, 王志成, 赵蕊, 刘冰, 陈功锡 (2024). 德夯地质公园林溪交错带草本群落优势种生态位及种间联结. 西北植物学报, 44, 1954-1964.]
[21]	Ma CM, Yuan YX (2004). The review of vegetation restoration on old field at home and abroad. World Forestry Research, 17(4), 24-27.
	[马长明, 袁玉欣 (2004). 国内外退耕地植被恢复研究现状. 世界林业研究, 17(4), 24-27.]
[22]	Moyo B, Ravhuhali KE (2022). Abandoned croplands: drivers and secondary succession trajectories under livestock grazing in communal areas of South Africa. Sustainability, 14, 6168. DOI: 10.3390/su14106168.
[23]	Pianka ER (1973). The structure of lizard communities. Annual Review of Ecology and Systematics, 4, 53-74. DOI URL
[24]	Schluter D (1984). A variance test for detecting species associations, with some example applications. Ecology, 65, 998-1005. DOI URL
[25]	Schoener TW (1974). Resource partitioning in ecological communities. Science, 185, 27-39. DOI PMID
[26]	Shannon CE, Weiner W (1949). The Mathematical Theory of Communication: Unknown Distance Function. University of Illinois Press, Urbana, USA.
[27]	Song YC (2017). Vegetation Ecology. 2nd ed. Higher Education Press, Beijing.
	[宋永昌 (2017). 植被生态学. 2版. 高等教育出版社, 北京.]
[28]	Tan XM, Sun LX, Du ZY, Li HR, Dang N, Xiao J, Zhang PX, Chen GC (2025). Characteristics and stability of plant communities in abandoned copper mining sites with different successional period. Acta Ecologica Sinica, 45, 1900-1912.
	[谭许脉, 孙立祥, 杜忠毓, 李浩然, 党宁, 肖江, 张平选, 陈光才 (2025). 铜矿废弃地不同演替阶段植物群落特征及其稳定性. 生态学报, 45, 1900-1912.]
[29]	Tu HR, Nong JL, Zhu J, Zhao JJ, Yang WL, Zhu QQ, Xie YJ, Liu RH (2022). Interspecific associations of main species and community stability of Myrsine seguinii in karst hills of Guilin, southwestern China. Acta Ecologica Sinica, 42, 3688-3705.
	[涂洪润, 农娟丽, 朱军, 赵佳佳, 杨婉琳, 朱琪琪, 谢彦军, 刘润红 (2022). 桂林岩溶石山密花树群落主要物种的种间关联及群落稳定性. 生态学报, 42, 3688-3705.]
[30]	Wang SY (2018). Preliminary study on utilization and protection mode of wild soybean in Liaoning Province. Agricultural Development & Equipments, (4), 46.
	[王树宇 (2018). 辽宁省野生大豆利用途径及保护模式初探. 农业开发与装备, (4), 46.]
[31]	Ward JS, Parker GR, Ferrandino FJ (1996). Long-term spatial dynamics in an old-growth deciduous forest. Forest Ecology and Management, 83, 189-202. DOI URL
[32]	Wu WH, Wu JS, Wu WX, Lyu JB, Fu GL, Zhang YH, Zheng XJ, Tu JL, Mei XD (2024). The interspecific niche and interspecific association of the rare plant Styrax zhejiangensis community. Journal of Northeast Forestry University, 52(12), 46-54.
	[吴卫华, 吴家森, 吴文骁, 吕江波, 傅国林, 张晔华, 郑小军, 屠娟丽, 梅旭东 (2024). 珍稀植物浙江安息香群落种间生态位及种间联结. 东北林业大学学报, 52(12), 46-54.]
[33]	Xie WL, Wang QY, Wang QX, Gan WY, Wu YF, Huang LJ (2024). Niche and interspecific association of spontaneous herbaceous plants in Fuzhou section of Minjiang River. Journal of Tropical and Subtropical Botany, 33, 149-158.
	[谢婉丽, 王奇悦, 王秋雪, 甘婉怡, 武艳芳, 黄柳菁 (2024). 闽江福州段自生草本植物生态位和种间联结研究. 热带亚热带植物学报, 33, 149-158.]
[34]	Xu MH, Liu M, Zhai DT, Liu T (2016). A review of contents and methods used to analyze various aspects of plant interspecific associations. Acta Ecologica Sinica, 36, 8224-8233.
	[徐满厚, 刘敏, 翟大彤, 刘彤 (2016). 植物种间联结研究内容与方法评述. 生态学报, 36, 8224-8233.]
[35]	Yang M, Yuan DM, Yan LB, Yu LF, An MT, He QQ, Mu J (2024). Interspecific relationship and community stability of Alsophila spinulosa-Phyllostachys edulis clusters. Journal of Tropical and Subtropical Botany, 32, 349-356.
	[杨熳, 袁冬梅, 严令斌, 喻理飞, 安明态, 何琴琴, 穆君 (2024). 毛竹-桫椤群丛的种间关系与群落稳定性. 热带亚热带植物学报, 32, 349-356.]
[36]	Yu F, Wang Y, Zhang GG, Ma JM (2023). Plant diversity and interspecific associations of different floodplains in the wandering Yellow River. Acta Ecologica Sinica, 43, 2429-2439.
	[于飞, 王洋, 张岗岗, 马剑敏 (2023). 游荡型黄河滩涂植物群落多样性及种间联结性. 生态学报, 43, 2429-2439.]
[37]	Zeng RK, Mo JF, Zhang SC, Zhao Q, Zhou Q, Mo QF (2024). Niches and interspecific associations of dominant trees in a Lithocarpus glaucus community. Journal of Forest and Environment, 44, 403-413.
	[曾睿楷, 莫金凤, 张少纯, 赵倩, 周庆, 莫其锋 (2024). 粉绿柯群落优势乔木的生态位与种间关联分析. 森林与环境学报, 44, 403-413.]
[38]	Zhang DM, Zhao WZ, Luo WC (2018). Niche and interspecific association of dominant plant species in saline-alkaline soils of desert steppe zone. Chinese Journal of Ecology, 37, 1307-1315.
	[张东梅, 赵文智, 罗维成 (2018). 荒漠草原带盐碱地优势植物生态位与种间联结. 生态学杂志, 37, 1307-1315.]
[39]	Zhang FH, Pan XD, Li YY (2006). Research on successional regulation of soil environment after reclamation in the manas river valley. Scientia Agricultura Sinica, 39(2), 331-336.
	[张凤华, 潘旭东, 李玉义 (2006). 新疆玛河流域绿洲农田开垦后土壤环境演变分析. 中国农业科学, 39(2), 331-336.]
[40]	Zhang JQ, Lu J, Wang SY, Lin L, Wang J, Yang CW (2024). Niches characteristics and community stability of endangered plant, Picea neoveitchii. Bulletin of Botanical Research, 44, 863-869.
	[张继强, 芦娟, 王三英, 林琳, 王杰, 杨昌文 (2024). 濒危植物大果青杄群落生态位特征及群落稳定性. 植物研究, 44, 863-869.] DOI
[41]	Zhang JT (2018). Quantitative Ecology. 3rd ed. Science Press, Beijing. 147-162.
	[张金屯 (2018). 数量生态学. 3版. 科学出版社, 北京. 147-162.]
[42]	Zhang M, Zheng JM, Wan JY, Ren K, Rong JD, Zheng YS (2022). Niche and interspecific association of dominant woody plants in Dongmen Island, Fujian Province. Journal of Forestry and Environment, 42, 11-19.
	[张盟, 郑俊鸣, 万佳艺, 任可, 荣俊冬, 郑郁善 (2022). 福建省东门屿优势木本植物的生态位与种间联结. 森林与环境学报, 42, 11-19.]
[43]	Zhang MR, Su XD, Zhang XX, Ye XL (2020). Biodiversity and natural regeneration of Pistacia chinensis communities in the South Taihang Mountains. Journal of Forestry and Environment, 40, 597-604.
	[张孟仁, 苏晓迪, 张学献, 叶先亮 (2020). 黄连木群落的生物多样性与天然更新. 森林与环境学报, 40, 597-604.]
[44]	Zhang W, Ren CJ, Deng J, Zhao FZ, Yang GH, Han XH, Tong XG, Feng YZ (2018). Plant functional composition and species diversity affect soil C, N, and P during secondary succession of abandoned farmland on the Loess Plateau. Ecological Engineering, 122, 91-99. DOI URL
[45]	Zhao CL, Zhang F, Pang CH, Wang HM, Fan X (2013). Interspecific association of dominant species of Amaranth retroflexus L. community. Bulletin of Botanical Research, 33, 454-460.
	[赵彩莉, 张峰, 庞春花, 王慧敏, 范晓 (2013). 反枝苋群落优势种的种间关联性分析. 植物研究, 33, 454-460.] DOI
[46]	Zheng YR (2000). Comparison of methods for studying stability of forest community. Scientia Silvae Sinicae, 36(5), 28-32.
	[郑元润 (2000). 森林群落稳定性研究方法初探. 林业科学, 36(5), 28-32.]

序号 Serial number	物种名 Species name	出现样方数 Number of quadrats present	频度 Frequency (%)	平均盖度 Average coverage (%)	重要值 Importance value (%)	B_L	B_S
1	野大豆 Glycine soja	138	97.18	49.75	33.28	101.92	4.75
2	矮蒿 Artemisia lancea	53	37.32	8.14	6.29	34.62	3.73
3	狗尾草 Setaria viridis	55	38.73	3.85	5.41	31.37	3.68
4	黄花蒿 Artemisia annua	29	20.42	6.97	4.31	22.39	3.22
5	三裂叶豚草 Ambrosia trifida	44	30.99	4.49	4.30	23.99	3.42
6	野黍 Eriochloa villosa	47	33.10	2.37	3.94	28.91	3.57
7	鼠掌老鹳草 Geranium sibiricum	39	27.46	3.49	3.90	21.07	3.30
8	红蓼 Persicaria orientalis	18	12.68	4.58	3.38	12.24	2.62
9	葎草 Humulus scandens	35	24.65	2.84	2.97	18.43	3.27
10	大刺儿菜 Cirsium arvense var. setosum	36	25.35	2.14	2.97	26.60	3.40
11	稗 Echinochloa crusgalli	29	20.42	2.32	2.80	11.12	2.88
12	蒌蒿 Artemisia selengensis	28	19.72	2.25	2.48	16.61	3.02
13	芦苇 Phragmites australis	18	12.68	3.20	2.44	12.86	2.69
14	豆茶山扁豆 Chamaecrista nomame	19	13.38	1.25	1.80	12.40	2.68
15	贼小豆 Vigna minima	17	11.97	1.24	1.47	12.11	2.65

序号 Serial number	物种名 Species name	出现样方数 Number of quadrats present	频度 Frequency (%)	平均盖度 Average coverage (%)	重要值 Importance value (%)	B_L	B_S
1	野大豆 Glycine soja	138	97.18	49.75	33.28	101.92	4.75
2	矮蒿 Artemisia lancea	53	37.32	8.14	6.29	34.62	3.73
3	狗尾草 Setaria viridis	55	38.73	3.85	5.41	31.37	3.68
4	黄花蒿 Artemisia annua	29	20.42	6.97	4.31	22.39	3.22
5	三裂叶豚草 Ambrosia trifida	44	30.99	4.49	4.30	23.99	3.42
6	野黍 Eriochloa villosa	47	33.10	2.37	3.94	28.91	3.57
7	鼠掌老鹳草 Geranium sibiricum	39	27.46	3.49	3.90	21.07	3.30
8	红蓼 Persicaria orientalis	18	12.68	4.58	3.38	12.24	2.62
9	葎草 Humulus scandens	35	24.65	2.84	2.97	18.43	3.27
10	大刺儿菜 Cirsium arvense var. setosum	36	25.35	2.14	2.97	26.60	3.40
11	稗 Echinochloa crusgalli	29	20.42	2.32	2.80	11.12	2.88
12	蒌蒿 Artemisia selengensis	28	19.72	2.25	2.48	16.61	3.02
13	芦苇 Phragmites australis	18	12.68	3.20	2.44	12.86	2.69
14	豆茶山扁豆 Chamaecrista nomame	19	13.38	1.25	1.80	12.40	2.68
15	贼小豆 Vigna minima	17	11.97	1.24	1.47	12.11	2.65

	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
1		0.30	0.26	0.18	0.24	0.26	0.22	0.07	0.22	0.21	0.14	0.14	0.10	0.11	0.14
2	0.35		0.13	0.11	0.14	0.12	0.14	0.03	0.08	0.15	0.06	0.15	0.21	0.15	0.01
3	0.26	0.11		0.20	0.31	0.19	0.21	0.10	0.20	0.21	0.23	0.09	0.00	0.09	0.11
4	0.30	0.10	0.23		0.03	0.27	0.06	0.03	0.00	0.10	0.06	0.19	0.00	0.17	0.07
5	0.28	0.13	0.31	0.04		0.14	0.26	0.03	0.21	0.26	0.12	0.09	0.02	0.06	0.10
6	0.31	0.10	0.19	0.28	0.11		0.19	0.06	0.17	0.11	0.11	0.09	0.16	0.14	0.19
7	0.27	0.12	0.19	0.04	0.23	0.18		0.03	0.31	0.14	0.09	0.08	0.07	0.02	0.03
8	0.12	0.03	0.12	0.02	0.02	0.06	0.01		0.12	0.00	0.32	0.03	0.01	0.04	0.00
9	0.29	0.04	0.17	0.00	0.19	0.16	0.36	0.16		0.14	0.18	0.04	0.12	0.00	0.02
10	0.30	0.16	0.28	0.11	0.31	0.11	0.09	0.00	0.17		0.03	0.26	0.26	0.04	0.04
11	0.12	0.03	0.14	0.03	0.06	0.05	0.04	0.32	0.08	0.01		0.08	0.01	0.03	0.05
12	0.24	0.18	0.08	0.28	0.08	0.09	0.03	0.02	0.02	0.31	0.04		0.14	0.05	0.12
13	0.16	0.35	0.00	0.00	0.04	0.23	0.09	0.00	0.09	0.34	0.01	0.10		0.07	0.03
14	0.22	0.21	0.11	0.17	0.10	0.17	0.02	0.02	0.00	0.04	0.01	0.06	0.06		0.04
15	0.34	0.00	0.10	0.04	0.10	0.19	0.03	0.00	0.02	0.04	0.02	0.10	0.01	0.03

	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
1		0.30	0.26	0.18	0.24	0.26	0.22	0.07	0.22	0.21	0.14	0.14	0.10	0.11	0.14
2	0.35		0.13	0.11	0.14	0.12	0.14	0.03	0.08	0.15	0.06	0.15	0.21	0.15	0.01
3	0.26	0.11		0.20	0.31	0.19	0.21	0.10	0.20	0.21	0.23	0.09	0.00	0.09	0.11
4	0.30	0.10	0.23		0.03	0.27	0.06	0.03	0.00	0.10	0.06	0.19	0.00	0.17	0.07
5	0.28	0.13	0.31	0.04		0.14	0.26	0.03	0.21	0.26	0.12	0.09	0.02	0.06	0.10
6	0.31	0.10	0.19	0.28	0.11		0.19	0.06	0.17	0.11	0.11	0.09	0.16	0.14	0.19
7	0.27	0.12	0.19	0.04	0.23	0.18		0.03	0.31	0.14	0.09	0.08	0.07	0.02	0.03
8	0.12	0.03	0.12	0.02	0.02	0.06	0.01		0.12	0.00	0.32	0.03	0.01	0.04	0.00
9	0.29	0.04	0.17	0.00	0.19	0.16	0.36	0.16		0.14	0.18	0.04	0.12	0.00	0.02
10	0.30	0.16	0.28	0.11	0.31	0.11	0.09	0.00	0.17		0.03	0.26	0.26	0.04	0.04
11	0.12	0.03	0.14	0.03	0.06	0.05	0.04	0.32	0.08	0.01		0.08	0.01	0.03	0.05
12	0.24	0.18	0.08	0.28	0.08	0.09	0.03	0.02	0.02	0.31	0.04		0.14	0.05	0.12
13	0.16	0.35	0.00	0.00	0.04	0.23	0.09	0.00	0.09	0.34	0.01	0.10		0.07	0.03
14	0.22	0.21	0.11	0.17	0.10	0.17	0.02	0.02	0.00	0.04	0.01	0.06	0.06		0.04
15	0.34	0.00	0.10	0.04	0.10	0.19	0.03	0.00	0.02	0.04	0.02	0.10	0.01	0.03

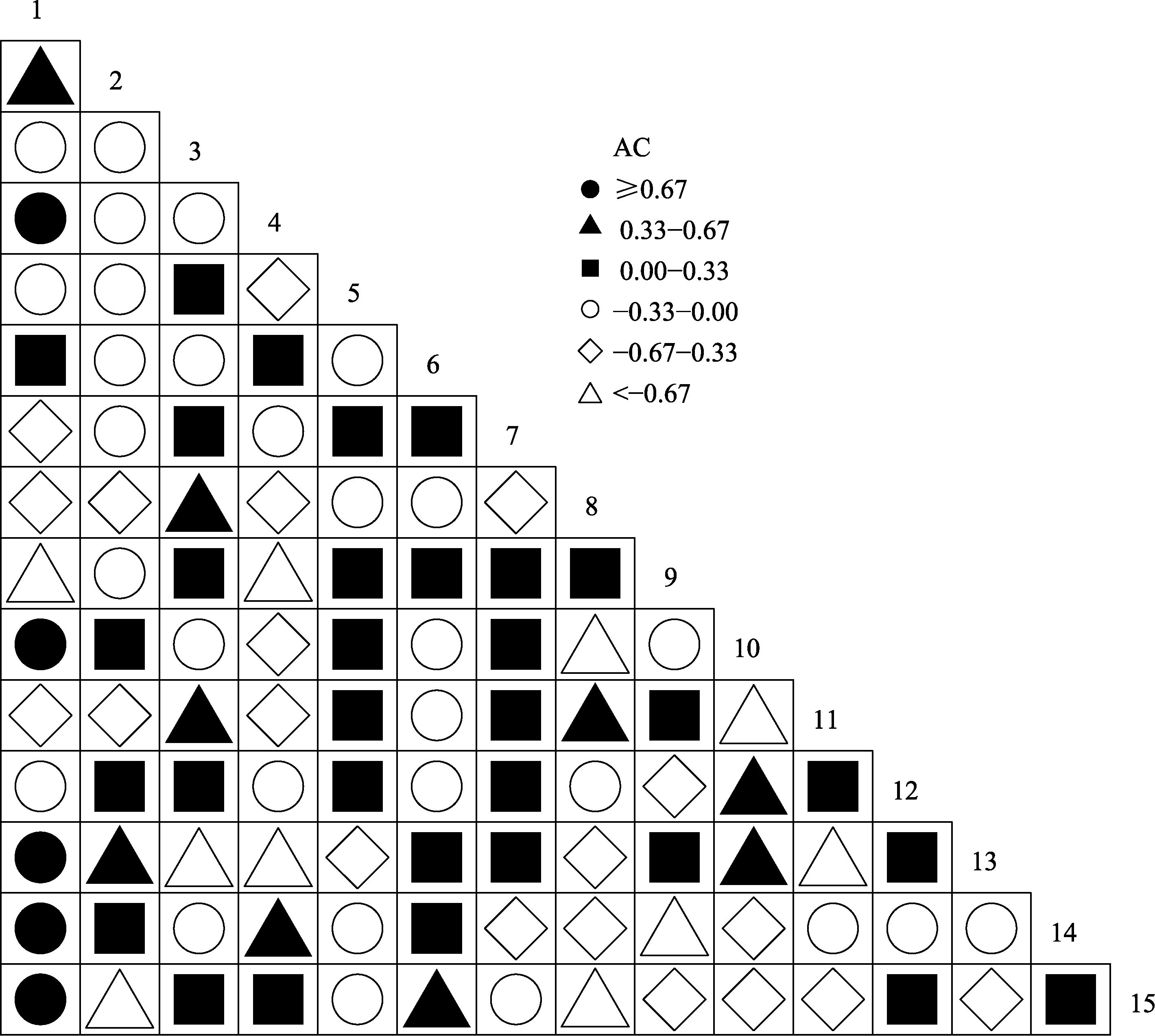

	1	2	3	4	5	6	7	8	9	10	11	12	13	14
2	○
3	-	-
4	+	-	-
5	-	-	+	□
6	+	-	-	+	-
7	-	-	+	-	+	+
8	-	-	+	-	-	-	-
9	■	-	+	-	+	+	○	+
10	+	+	-	-	+	-	+	□	-
11	-	-	+	-	+	-	+	○	●	□
12	-	+	+	-	+	-	+	-	-	●	+
13	+	○	■	□	-	+	+	-	+	○	-	+
14	+	+	-	●	-	+	-	-	□	-	-	-	-
15	+	■	+	+	-	○	-	-	-	-	-	+	-	+
